BOARDRUNNER
5MMVP4
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 686MX/CX MII/AM K5/AM K6/AM K6-2/AM K6-III/Pentium/Pentium MMX/Rise MP6 |
| Processor Speed | 100/133/166/200/233/266/300/333/350/366/380/400MHz |
| Chip Set | VIA |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Maximum Video Memory | 8MB (Shared system memory) |
| Maximum Audio Memory | Unidentified |
| Cache | 1024KB |
| BIOS | Award |
| Dimensions | 220mm x 244mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (3), CD-ROM interface, floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial interface, serial port, VGA port, IR connector, USB ports (2), ATX power connector, Audio/Modem Riser slot, line in, line out, microphone in, audio in - CD-ROM, Wake-on-LAN connector |

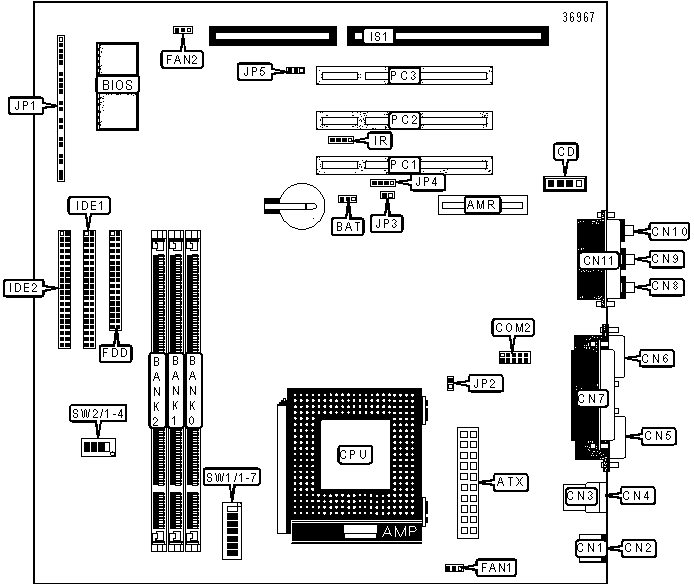

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Audio/Modem riser slot | AMR |
CPU fan power 1 | FAN1 |
| ATX power connector | ATX |
CPU fan power 2 | FAN2 |
| Audio in - CD-ROM | CD | Floppy drive interface | FDD |
| PS/2 mouse port | CN1 | IDE interface 1 | IDE1 |
| PS/2 keyboard port | CN2 | IDE interface 2 | IDE2 |
| USB port 1 | CN3 | IR connector | IR |
| USB port 2 | CN4 | 16-bit ISA bus slot | IS1 |
| Serial port 1 | CN5 | Power LED | JP1/Pins 1 -3 |
| VGA port | CN6 | Speaker | JP1/Pins 7 - 10 |
| Parallel port | CN7 | Reset switch | JP1/Pins 12 & 13 |
| Line out | CN8 | IDE interface LED | JP1/Pins 15 & 16 |
| Line in | CN9 | Turbo LED | JP1/Pins 18 & 19 |
| Microphone in | CN10 | Green PC connector | JP1/Pins 21 & 22 |
| Game/MIDI port | CN11 | Soft off power supply | JP1/Pins 23 & 24 |
| Serial port 2 | COM2 | 32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| Dual voltage select | JP2 | Closed | |
| Single voltage select | JP2 | Open | |
| PS/2 Mouse disabled | JP5 | Pins 1 & 2 closed |
|
| PS/2 Mouse enabled | JP5 | Pins 2 & 3 closed |
|
| AUDIO SELECTION | ||
Function |
JP3 |
JP4 |
Onboard audio only enabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
| Onboard audio and AMR slot enabled | Pins 1 & 2 closed |
Pins 1 & 2, 3 & 4 closed |
| AMR slot only enabled | Open | Pins 3 & 4 closed |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM & EDO memory. | |||
CPU SPEED SELECTION (CX 6X86) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
166MHz |
66MHz |
2x |
On | Off | Off | On | Off | Off | Off |
CPU SPEED SELECTION (CX 6X86L) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
166MHz |
66MHz |
2x |
On | Off | Off | On | Off | Off | Off |
200MHz |
75MHz |
2x |
On | Off | Off | Off | Off | Off | On |
CPU SPEED SELECTION (CX 6X86MX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
166MHz |
66MHz |
2x |
On | Off | Off | On | Off | Off | Off |
200MHz |
75MHz |
2x |
On | Off | Off | Off | Off | Off | On |
233MHz |
75MHz |
2.5x |
On | On | Off | Off | Off | Off | On |
266MHz |
83MHz |
2.5x |
On | On | Off | On | Off | On | Off |
CPU SPEED SELECTION (CX MII) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
300MHz |
66MHz |
3.5x |
Off | Off | Off | On | Off | Off | Off |
333MHz |
83MHz |
3x |
Off | On | Off | On | Off | On | Off |
366MHz |
100MHz |
2.5x |
On | On | Off | On | On | On | Off |
CPU SPEED SELECTION (AM K5) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
100MHz |
66MHz |
1.5x |
Off | Off | Off | On | Off | Off | Off |
133MHz |
66MHz |
1.5x |
Off | Off | Off | On | Off | Off | Off |
166MHz |
66MHz |
2.5x |
On | On | Off | On | Off | Off | Off |
CPU SPEED SELECTION (AM K6) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
166MHz |
66MHz |
2.5x |
On | On | Off | On | Off | Off | Off |
200MHz |
66MHz |
3x |
Off | On | Off | On | Off | Off | Off |
233MHz |
66MHz |
3.5x |
Off | Off | Off | On | Off | Off | Off |
266MHz |
66MHz |
4x |
On | Off | On | On | Off | Off | Off |
300MHz |
66MHz |
4.5x |
On | On | On | On | Off | Off | Off |
CPU SPEED SELECTION (AM K6-2) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
250MHz |
100MHz |
2.5x |
On | On | Off | On | On | On | Off |
266MHz |
66MHz |
4x |
On | Off | On | On | Off | Off | Off |
300MHz |
66MHz |
4.5x |
On | On | On | On | Off | Off | Off |
300MHz |
100MHz |
3x |
Off | On | Off | On | On | On | Off |
333MHz |
66MHz |
5x |
Off | On | On | On | Off | Off | Off |
333MHz |
95MHz |
3.5x |
Off | Off | Off | Off | On | On | Off |
350MHz |
100MHz |
3.5x |
Off | Off | Off | On | On | On | Off |
366MHz |
66MHz |
5.5x |
Off | Off | On | On | Off | Off | Off |
380MHz |
95MHz |
4x |
On | Off | On | Off | On | On | Off |
400MHz |
100MHz |
4x |
On | Off | On | On | On | On | Off |
CPU SPEED SELECTION (AM K6-III) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
400MHz |
100MHz |
4x |
On | Off | On | On | On | On | Off |
CPU SPEED SELECTION (PENTIUM) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
100MHz |
66MHz |
1.5x |
Off | Off | Off | On | Off | Off | Off |
133MHz |
66MHz |
2x |
On | Off | Off | On | Off | Off | Off |
166MHz |
66MHz |
2.5x |
On | On | Off | On | Off | Off | Off |
200MHz |
66MHz |
3x |
Off | On | Off | On | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
166MHz |
66MHz |
2.5x |
On | On | Off | On | Off | Off | Off |
200MHz |
66MHz |
3x |
Off | On | Off | On | Off | Off | Off |
233MHz |
66MHz |
3.5x |
Off | Off | Off | On | Off | Off | Off |
CPU SPEED SELECTION (RISE MP6) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/5 |
SW1/6 | SW1/7 | SW2/1 | SW2/2 | SW2/3 |
SW2/4 |
266MHz |
100MHz |
2x |
On | Off | Off | On | On | On | Off |
366MHz |
100MHz |
2.5x |
On | On | Off | On | On | On | Off |
CPU VOLTAGE SELECTION (SINGLE) |
||||
Voltage |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
| 3.3v | On | Off | On | On |
| 3.5v | On | On | On | On |
CPU VOLTAGE SELECTION (DUAL) |
||||
Voltage |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
| 2.2v | Off | On | Off | Off |
| 2.4v | Off | Off | On | Off |
| 2.7v | On | On | On | Off |
| 2.8v | Off | Off | Off | On |
| 2.9v | On | Off | Off | On |
| 3.2v | Off | Off | On | On |
