BOARDRUNNER
5VMX (VIA MVP3)
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 6X86MX/CX MII/IBM 6X86MX/AM K5/AM K6/AM K6-2/IDT Win Chip C6/Pentium |
| Processor Speed | 90/100/120/133/150/166/180/200/225/233/240/266/300/333/350/366/380/400/450MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 1024MB (EDO & SDRAM supported) |
| Cache | 1024KB |
| BIOS | Award |
| Dimensions | 304mm x 200mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector |

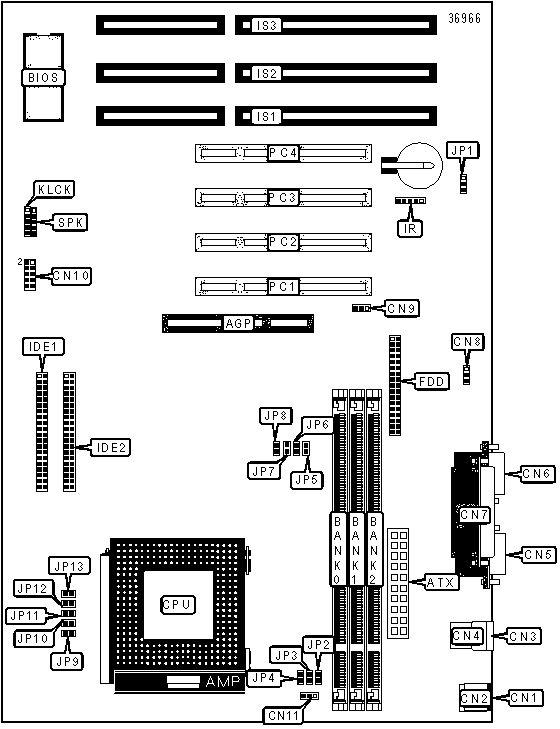

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Turbo LED | CN10/Pins 5 & 6 |
| ATX power connector | ATX |
Green PC LED | CN10/Pins 7 & 8 |
| PS/2 keyboard interface | CN1 | Power switch | CN10/Pins 9 & 10 |
| PS/2 mouse interface | CN2 | CPU fan power | CN11 |
| USB port 1 | CN3 | Floppy drive interface | FDD |
| USB port 2 | CN4 | IDE interface 1 | IDE1 |
| Serial port 1 | CN5 | IDE interface 2 | IDE2 |
| Serial port 2 | CN6 | IR connector | IR |
| Parallel port | CN7 | 16-bit ISA slots | IS1 - IS3 |
| System fan power | CN8 | Power LED & keylock | KLCK |
| Wake-on-LAN connector | CN9 | 32-bit PCI slots | PC1 - PC4 |
| Reset switch | CN10/Pins 1 & 2 | Speaker | SPK |
| IDE interface LED | CN10/Pins 3 & 4 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 |
Pins 1 & 2 closed |
| CMOS memory clear | JP1 |
Pins 2 & 3 closed |
|
|
SDRAM clock at CPU clock speed | JP5 | Open |
| SDRAM clock at AGP clock speed | JP5 | Closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 64M x 64 |
None |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
1024MB |
(1) 64M x 64 |
(1) 64M x 64 |
None |
| Note: Board accepts EDO & SDRAM memory. | |||
CPU SPEED SELECTION (CX 6X86) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
150MHz |
60MHz |
2x |
Closed | Open | Open | Closed | Closed | Closed |
| 166MHz | 66MHz | 2x | Closed | Open | Open | Open | Closed | Closed |
| 200MHz | 75MHz | 2x | Closed | Open | Open | Closed | Closed | Open |
CPU SPEED SELECTION (CX 6X86L) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
150MHz |
60MHz |
2x |
Closed | Open | Open | Closed | Closed | Closed |
166MHz |
66MHz |
2x | Closed | Open | Open | Open | Closed | Closed |
200MHz |
75MHz |
2x | Closed | Open | Open | Closed | Closed | Open |
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
166MHz |
66MHz |
2x |
Closed | Open | Open | Open | Closed | Closed |
200MHz |
66MHz |
2.5x |
Closed | Closed | Open | Open | Closed | Closed |
200MHz |
75MHz |
2x |
Closed | Open | Open | Closed | Closed | Open |
233MHz |
66MHz |
3x | Open | Closed | Open | Open | Closed | Closed |
233MHz |
75MHz |
2.5x | Closed | Closed | Open | Closed | Closed | Open |
CPU SPEED SELECTION (CX MII) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
266MHz |
83MHz |
2.5x | Closed | Closed | Open | Open | Closed | Open |
300MHz |
66MHz |
3.5x | Open | Open | Open | Open | Closed | Closed |
300MHz |
75MHz |
3x | Open | Closed | Open | Closed | Closed | Open |
333MHz |
83MHz |
3x | Open | Closed | Open | Open | Closed | Open |
CPU SPEED SELECTION (IBM 6X86) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
150MHz |
60MHz |
2x |
Closed | Open | Open | Closed | Closed | Closed |
| 166MHz | 66MHz | 2x | Closed | Open | Open | Open | Closed | Closed |
| 200MHz | 75MHz | 2x | Closed | Open | Open | Closed | Closed | Open |
CPU SPEED SELECTION (IBM 6X86L) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
150MHz |
60MHz |
2x |
Closed | Open | Open | Closed | Closed | Closed |
166MHz |
66MHz |
2x | Closed | Open | Open | Open | Closed | Closed |
200MHz |
75MHz |
2x | Closed | Open | Open | Closed | Closed | Open |
CPU SPEED SELECTION (IBM 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
166MHz |
66MHz |
2x |
Closed | Open | Open | Open | Closed | Closed |
200MHz |
66MHz |
2.5x |
Closed | Closed | Open | Open | Closed | Closed |
200MHz |
75MHz |
2x |
Closed | Open | Open | Closed | Closed | Open |
233MHz |
66MHz |
3x | Open | Closed | Open | Open | Closed | Closed |
233MHz |
75MHz |
2.5x | Closed | Closed | Open | Closed | Closed | Open |
266MHz |
83MHz |
2.5x | Closed | Closed | Open | Open | Closed | Open |
300MHz |
66MHz |
3.5x | Open | Open | Open | Open | Closed | Closed |
300MHz |
75MHz |
3x | Open | Closed | Open | Closed | Closed | Open |
333MHz |
83MHz |
3x | Open | Closed | Open | Open | Closed | Open |
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
90MHz |
60MHz |
1.5x |
Open | Open | Open | Closed | Closed | Closed |
100MHz |
66MHz |
1.5x | Open | Open | Open | Open | Closed | Closed |
120MHz |
60MHz |
1.5x | Open | Open | Open | Closed | Closed | Closed |
133MHz |
66MHz |
1.5x | Open | Open | Open | Open | Closed | Closed |
150MHz |
60MHz |
2.5x | Closed | Closed | Open | Closed | Closed | Closed |
166MHz |
66MHz |
2.5x | Closed | Closed | Open | Open | Closed | Closed |
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
166MHz |
66MHz |
2.5x |
Closed | Closed | Open | Open | Closed | Closed |
200MHz |
66MHz |
3x | Open | Closed | Open | Open | Closed | Closed |
233MHz |
66MHz |
3.5x | Open | Open | Open | Open | Closed | Closed |
266MHz |
66MHz |
4x | Closed | Open | Closed | Open | Closed | Closed |
300MHz |
66MHz |
4.5x | Closed | Closed | Closed | Open | Closed | Closed |
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
266MHz |
66MHz |
4x | Closed | Open | Closed | Open | Closed | Closed |
300MHz |
100MHz |
3x | Open | Closed | Open | Open | Open | Open |
333MHz |
95MHz |
3.5x | Open | Open | Open | Closed | Open | Open |
350MHz |
100MHz |
3.5x | Open | Open | Open | Open | Open | Open |
366MHz |
66MHz |
5.5x | Open | Open | Closed | Open | Closed | Closed |
380MHz |
95MHz |
4x | Closed | Open | Closed | Closed | Open | Open |
400MHz |
100MHz |
4x | Closed | Open | Closed | Open | Open | Open |
450MHz |
100MHz |
4.5x | Closed | Closed | Closed | Open | Open | Open |
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
180MHz |
60MHz |
3x | Open | Closed | Open | Closed | Closed | Closed |
200MHz |
66MHz |
3x | Open | Closed | Open | Open | Closed | Closed |
225MHz |
75MHz |
3x | Open | Closed | Open | Closed | Closed | Open |
240MHz |
60MHz |
4x | Closed | Open | Closed | Closed | Closed | Closed |
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 | JP4 | JP6 | JP7 |
JP8 |
90MHz |
60MHz |
1.5x | Open | Open | Open | Closed | Closed | Closed |
100MHz |
66MHz |
1.5x | Open | Open | Open | Open | Closed | Closed |
120MHz |
60MHz |
2x | Closed | Open | Open | Closed | Closed | Closed |
133MHz |
66MHz |
2x | Closed | Open | Open | Open | Closed | Closed |
166MHz |
66MHz |
2.5x | Closed | Closed | Open | Open | Closed | Closed |
200MHz |
66MHz |
3x | Open | Closed | Open | Open | Closed | Closed |
233MHz |
66MHz |
3.5x | Open | Open | Open | Open | Closed | Closed |
CPU CORE VOLTAGE SELECTION (DUAL) |
|||||
Voltage |
JP9 | JP10 | JP11 | JP12 | JP13 |
| 1.6v | Closed | Open | Closed | Closed | Open |
| 1.7v | Closed | Closed | Open | Open | Open |
| 1.8v | Closed | Closed | Open | Closed | Open |
| 1.9v | Closed | Closed | Closed | Open | Open |
| 2.0v | Open | Open | Open | Open | Open |
| 2.1v | Open | Open | Open | Open | Closed |
| 2.2v | Open | Open | Open | Closed | Open |
| 2.3v | Open | Open | Open | Closed | Closed |
| 2.4v | Open | Open | Closed | Open | Open |
| 2.5v | Open | Open | Closed | Open | Closed |
| 2.6v | Open | Open | Closed | Closed | Open |
| 2.7v | Open | Open | Closed | Closed | Closed |
| 2.8v | Open | Open | Closed | Closed | Closed |
| 2.9v | Open | Closed | Open | Open | Closed |
| 3.0v | Open | Closed | Open | Closed | Open |
| 3.1v | Open | Closed | Open | Closed | Closed |
| 3.2v | Open | Closed | Closed | Open | Open |
| 3.4v | Open | Closed | Open | Open | Open |
CPU CORE VOLTAGE SELECTION (SINGLE) |
|||||
Voltage |
JP9 | JP10 | JP11 | JP12 | JP13 |
| 3.3v | Open | Closed | Closed | Open | Closed |
| 3.5v | Open | Closed | Closed | Closed | Closed |
