BOARDRUNNER
6MBX2-SV
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466/500MHz |
| Chip Set | Intel 440BX |
| Video Chip Set | ATI |
| Audio Chip Set | Creative Technologies |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | 8MB |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 224mm x 220mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial interface, serial port, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), SB-Link connector, Wake-on-LAN connector, Modem Audio connector |

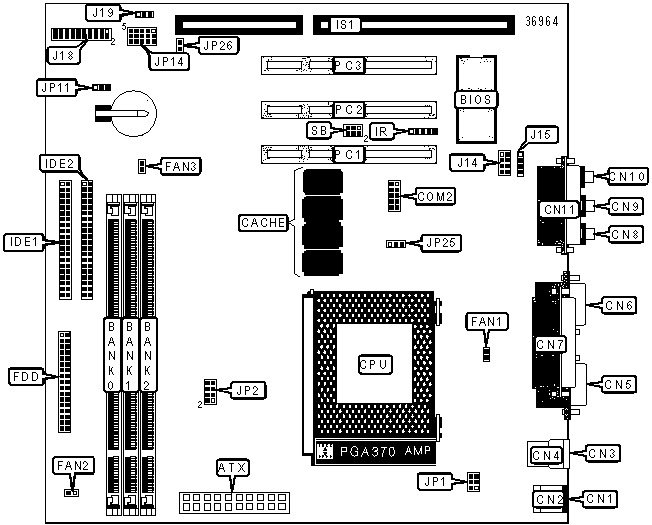

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface 1 | IDE1 |
| PS/2 mouse port | CN1 | IDE interface 2 | IDE2 |
| PS/2 keyboard port | CN2 | IR connector | IR |
| USB port 1 | CN3 | 32-bit ISA slots | IS1 |
| USB port 2 | CN4 | Modem Audio connector | J14/Pins 1, 3, 5 & 7 |
| Serial port 1 | CN5 | Audio in - CD-ROM | J14/Pins 2, 4, 6 & 8 |
| VGA port | CN6 | Audio in - CD-ROM | J15 |
| Parallel port | CN7 | Reset switch | J18/Pins 1 & 3 |
| Line out | CN8 | Power LED | J18/Pins 2, 4 & 6 |
| Line in | CN9 | IDE interface LED | J18/Pins 5 & 7 |
| Microphone in | CN10 | Green PC LED | J18/Pins 9 & 11 |
| Game/MIDI port | CN11 | Green PC connector | J18/Pins 13 & 15 |
| Serial port 2 | COM2 | Power LED | J18/Pins 17 & 19 |
| CPU fan power | FAN1 | Speaker | J18/Pins 14, 16, 18 & 20 |
| Chassis fan power | FAN2 | Wake-on-LAN connector | J19 |
| AGP fan power | FAN3 | 32-bit PCI slots | PC1 - PC3 |
| Floppy drive interface | FDD | SB-Link connector | SB |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP11 |
Pins 1 & 2 closed |
| CMOS memory clear | JP11 |
Pins 2 & 3 closed |
|
| » | On board audio enabled | JP25 |
Pins 2 & 3 closed |
| On board audio disabled | JP25 |
Pins 1 & 2 closed |
|
|
Wake-on LAN enabled | JP26 | Closed |
| Wake-on LAN disabled | JP26 | Open |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
POWER-ON SETTINGS |
||
Function |
Label | Position |
| Power-on keyboard & mouse enabled | JP1 | Pins 3 & 5, 4 & 6 closed |
| Power-on keyboard & mouse disabled | JP1 |
Pins 1 & 3, 2 & 4 closed |
| Power-on mouse enabled | JP1 | Pins 1 & 3, 4 & 6 closed |
| Power-on keyboard disabled | JP1 |
Pins 3 & 5, 2 & 4 closed |
CPU SPEED SELECTION |
|||||||
CPU speed |
Clock speed |
Multiplier |
JP2/Pins 1 & 2 | JP2/Pins 3 & 4 | JP2/Pins 5 & 6 | JP2/Pins 7 & 8 | JP14/Pins 1 & 6 |
300MHz |
66MHz |
4.5x |
Open | Open | Closed | Open | Open |
333MHz |
66MHz |
5x |
Open | Open | Closed | Open | Open |
366MHz |
66MHz |
5.5x |
Open | Open | Closed | Open | Open |
400MHz |
66MHz |
6x |
Open | Open | Closed | Open | Closed |
433MHz |
66MHz |
6.5x |
Open | Open | Closed | Open | Closed |
466MHz |
66MHz |
7x |
Open | Open | Closed | Open | Closed |
500MHz |
66MHz |
7.5x |
Open | Open | Closed | Open | Closed |
CPU SPEED SELECTION (CON'T.) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP14/Pins 2 & 7 | JP14/Pins 3 & 8 |
JP14/Pins 4 & 9 |
JP14/Pins 5 & 10 |
300MHz |
66MHz |
4.5x |
Closed | Open | Closed | Open |
333MHz |
66MHz |
5x |
Open | Closed | Closed | Open |
366MHz |
66MHz |
5.5x |
Open | Closed | Open | Open |
400MHz |
66MHz |
6x |
Closed | Open | Closed | Open |
433MHz |
66MHz |
6.5x |
Closed | Open | Open | Open |
466MHz |
66MHz |
7x |
Open | Closed | Open | Open |
500MHz |
66MHz |
7.5x |
Open | Open | Open | Open |
