AAEON TECHNOLOGY, INC.

PCM-5892
Device Type Single board computer
Processor CX 6X86MX/IBM 6X86MX/SGS 6X86/AM K5/AM K6/IDT C6/Pentium/Pentium MMX
Processor Speed 75/90/100/120/133/150/166/180/200/233MHz
Chip Set SIS
Video Chip Set Chips and Technology
Maximum Onboard Memory 128MB (EDO supported)
Maximum Video Memory 2MB
Cache 512KB
BIOS Award
Dimensions 203mm x 146mm
I/O Options 32-bit PCI slot, Ethernet 10/100BaseT connector, floppy drive interface, IDE interface, parallel port, PS/2 mouse interface, serial ports (2), VGA port, IR connector, USB connector
Data Bus PC/104 (16-bit)

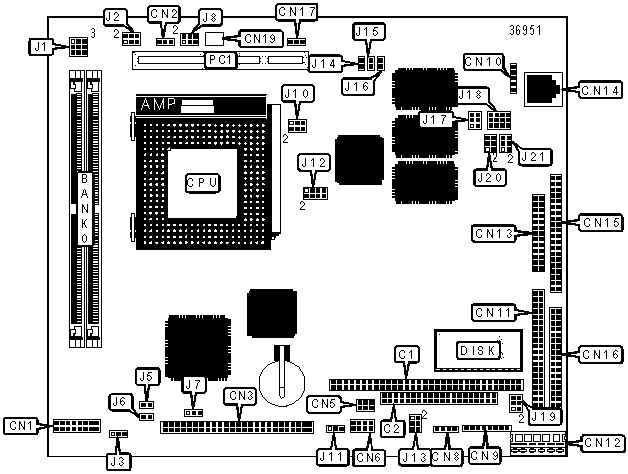

CONNECTIONS

Purpose

Location

Purpose

Location

PC/104 connector (8-bit)

C1

5v power

CN12

PC/104 connector (16-bit)

C2

Parallel port

CN13

VGA port

CN1

Ethernet 10/100BaseT connector

CN14

Chassis fan power

CN2

Serial port

CN15

Flat panel connector

CN3

Floppy drive interface

CN16

USB interface

CN5

Chassis fan power

CN17

Front panel connector

CN6

Auxilliary power

CN19
-5v power

CN8

TX LED

J14

PS/2 mouse/keyboard interface

CN9

RX LED

J15

IR connector

CN10

LINK LED

J16

IDE interface

CN11

32-bit PCI slots

PC1


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J1

Pins 2 & 3, 5 & 6, 7 & 8 closed

»

CMOS memory normal operation

J7

Pins 1 & 2 closed
  CMOS memory clear

J7

Pins 2 & 3 closed


SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36

64MB

(2) 8M x 36

128MB

(2) 16M x 36


VIDEO MEMORY CONFIGURATION

Note: The settings for the internal VGA are factory configured.


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

J2

J8

166MHz

66MHz

2x

Open

1 & 2

166MHz

60MHz

2.5x

1 & 2

1 & 2, 3 & 4
200MHz 75MHz 2x 3 & 4, 5 & 6 1 & 2
200MHz 66MHz 2.5x Open 1 & 2, 3 & 4
233MHz 75MHz 2.5x 3 & 4, 5 & 6 1 & 2, 3 & 4
233MHz 75MHz 3x 3 & 4, 5 & 6 3 & 4
266MHz 66MHz 3x Open 3 & 4
266MHz 66MHz 3.5x Open Open
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

J2

J8

166MHz

66MHz

2x

Open

1 & 2

166MHz

60MHz

2.5x

1 & 2

1 & 2, 3 & 4
200MHz 75MHz 2x 3 & 4, 5 & 6 1 & 2
200MHz 66MHz 2.5x Open 1 & 2, 3 & 4
233MHz 75MHz 2.5x 3 & 4, 5 & 6 1 & 2, 3 & 4
233MHz 75MHz 3x 3 & 4, 5 & 6 3 & 4
266MHz 66MHz 3x Open 3 & 4
266MHz 66MHz 3.5x Open Open
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

J2

J8

75MHz

50MHz

1.5x

3 & 4

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

Open

Open

120MHz

60MHz

2x

1 & 2

Open

133MHz

66MHz

2x

Open

Open
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

J2

J8

166MHz

66MHz

2.5x

Open

1 & 2, 3 & 4

200MHz

66MHz

3x

Open

3 & 4

233MHz

66MHz

3.5x

Open

Open

266MHz 66MHz 4x Open 1 & 2, 5 & 6
300MHz 66MHz 4.5x Open 1 & 2, 3 & 4, 5 & 6
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

J2

J8

75MHz

50MHz

1.5x

5 & 6

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

Open

Open

120MHz

60MHz

2x

1 & 2

1 & 2

133MHz

66MHz

2x

Open

1 & 2

150MHz

60MHz

2.5x

1 & 2

1 & 2, 3 & 4

166MHz

66MHz

2.5x

Open

1 & 2, 3 & 4

200MHz

66MHz

3x

Open

3 & 4

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

J2

J8
150MHz 60MHz 2.5x 1 & 2 1 & 2, 3 & 4

166MHz

66MHz

2.5x

Open

1 & 2, 3 & 4

200MHz

66MHz

3x

Open

3 & 4
233MHz 66MHz 3.5x Open Open
Note: Pins designated should be in the closed position.


CPU TYPE SELECTION

Type

J10

»

Dual voltage

Pins 3 & 5, 4 & 6 closed



Single voltage

Pins 1 & 3, 2 & 4 closed


CPU VOLTAGE SELECTION

Voltage

J12



2.1v

Open



2.2v

Pins 1 & 2 closed



2.3v

Pins 3 & 4 closed



2.4v

Pins 1 & 2, 3 & 4 closed



2.5v

Pins 5 & 6 closed



2.6v

Pins 1 & 2, 5 & 6 closed



2.7v

Pins 3 & 4, 5 & 6 closed

»

2.8v

Pins 1 & 2, 3 & 4, 5 & 6 closed



2.9v

Pins 7 & 8 closed



3.0v

Pins 1 & 2, 7 & 8 closed



3.1v

Pins 3 & 4, 7 & 8 closed



3.2v

Pins 1 & 2, 3 & 4, 7 & 8 closed



3.3v

Pins 5 & 6, 7 & 8 closed



3.4v

Pins 1 & 2, 5 & 6, 7 & 8 closed



3.5v

Pins 3 & 4, 5 & 6, 7 & 8 closed



3.6v

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed


SERIAL PORT 3 & 4 RI SELECTION

Setting

J20

J21

»

RI

Pins 5 & 6 closed

Pins 5 & 6 closed



5v

Pins 3 & 4 closed

Pins 3 & 4 closed



12v

Pins 1 & 2 closed

Pins 1 & 2 closed


SERIAL PORT INTERRUPT SELECTION

COM

IRQ

J19

»

COM3

IRQ5

Pins 2 & 4, 3 & 5 closed



COM4

IRQ10

Pins 2 & 4, 3 & 5 closed



COM3

IRQ10

Pins 1 & 3, 4 & 6 closed



COM4

IRQ5

Pins 1 & 3, 4 & 6 closed


SERIAL PORT SELECTION

Type

J17

J18

»

RS-232

Pins 1 & 2 closed

Pins 1 & 2, 4 & 5, 7 & 8, 10 & 11 closed



RS-422

Pins 3 & 4 closed

Pins 2 & 3, 5 & 6, 8 & 9, 11 & 12 closed



RS-485

Pins 5 & 6 closed

Pins 2 & 3, 5 & 6, 8 & 9, 11 & 12 closed


LCD VOLTAGE SELECTION

Voltage

J3

J11

»

5v

Pins 1 & 2 closed

Pins 1 & 2 closed



3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed


LCD SIGNAL SELECT

Signal

J5

J6


SHF clock

Closed

Open


ASHF clock

Open

Closed


DISK ADDRESS SELECTION

Address

J13
»

DC00

Pins 5 & 6 closed



D800

Pins 1 & 2, 3 & 4 closed



D400

Pins 3 & 4 closed



D000

Pins 1 & 2 closed



CC00

Open



Disabled

Pins 1 & 2, 3 & 4, 5 & 6 closed
