AAEON TECHNOLOGY, INC.
SBC-599
| Device Type | Mainboard |
| Processor | CX 6X86L/CX 6X86MX/AM K5/AM K6/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/180/200MHz |
| Chip Set | Intel 440TX |
| Video Chip Set | Chips and Technology |
| Maximum Onboard Memory | 256MB (EDO supported) |
| Maximum Video Memory | 8MB |
| Cache | 512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 338mm x 122mm |
| I/O Options | Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), SCSI interface, SCSI-2 interface, Ultra Wide SCSI interface, parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (3), VGA port, IR connector, USB connectors (2) |

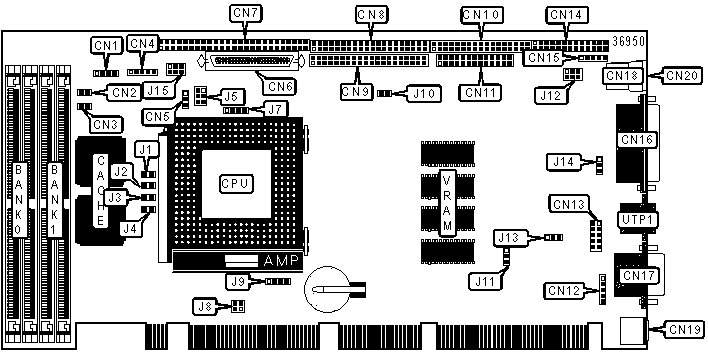

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Speaker | CN1 | External keyboard interface | CN12 |
| IDE interface LED | CN2 | Serial interface | CN13 |
| Reset switch | CN3 | Parallel port | CN14 |
| Power LED & keylock | CN4 | IR connector | CN15 |
| CPU fan power | CN5 | VGA port | CN16 |
| Ultra Wide SCSI interface | CN6 | Serial port 1 | CN17 |
| Ultra SCSI interface | CN7 | USB connector 2 | CN18 |
| IDE interface 1 | CN8 | PS/2 mouse/keyboard port | CN19 |
| IDE interface 2 | CN9 | USB connector 1 | CN20 |
| Floppy drive interface | CN10 | Ethernet port | UTP1 |
| Flat panel interface | CN11 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Pentium MMX enabled | J7 | Pins 1 & 2 closed |
| Pentium MMX disabled | J7 | Pins 1 & 2 open | |
» |
MTXC 66Hz Clock enabled | J7 | Pins 3 & 4 open |
| MTXC 60Hz Clock disabled | J7 | Pins 3 & 4 closed | |
| » | Wide SCSI enabled | J10 | Closed |
|
Wide SCSI disabled | J10 |
Open |
» |
Clock 1 wait delay | J11 |
Pins 1 & 2 closed |
| Clock 2 wait delay | J11 |
Pins 2 & 3 closed |
|
| » | LCD 3.3v power selected | J12 |
Pins 3 & 5, 4 & 6 closed |
| LCD 5v power selected | J12 |
Pins 1 & 3, 2 & 4 closed | |
| » | LCD display mode enabled | J13 |
Pins 2 & 3 closed |
| LED display mode disabled | J13 |
Pins 1 & 2 closed |
|
| » | Watchdog timer enabled | J14 |
Pins 1 & 2 closed |
| Timer activation through IRQ11 enabled | J14 |
Pins 2 & 3 closed |
|
| » | Dual power CPU selected | J15 | Pins 3 & 5, 4 & 6 closed |
| Single power CPU selected | J15 | Pins 1 & 3, 2 & 4 closed | |
CPU CLOCK SETTINGS |
||
Rate |
J8 | |
| 55MHZ | Pins 1 & 2, 3 & 4 closed | |
| 60MHZ | Pins 1 & 2 closed |
|
| » | 66MHZ | Open |
| 75MHZ | Pins 3 & 4 closed | |
CMOS MEMORY SETTINGS |
||
Function |
J9 | |
| » | CMOS memory normal operation (External Battery) | Pins 1 & 2 closed |
| CMOS memory normal operation (internal Battery) | Pins 3 & 4 closed |
|
| CMOS memory clear | Open |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CPU MULTIPLIER SELECTION (CYRIX 6X86, 6X86MX) |
||||
Multiplier |
J5/Pins 1 & 2 | J5/Pins 3 & 4 | J5/Pins 5 & 6 | |
1.5x |
N/A | Open | Open | |
| 2x | N/A | Open | Closed | |
| » | 2.5x | N/A | Closed | Closed |
| 3x | N/A | Closed | Open | |
CPU MULTIPLIER SELECTION (AMD K5) |
||||
Multiplier |
J5/Pins 1 & 2 | J5/Pins 3 & 4 | J5/Pins 5 & 6 | |
1.5x |
N/A | Open | Open | |
| 2x | N/A | Open | Closed | |
| » | 2.5x | N/A | Closed | Closed |
| 3x | N/A | Closed | Open | |
CPU MULTIPLIER SELECTION (AMD K6) |
||||
Multiplier |
J5/Pins 1 & 2 | J5/Pins 3 & 4 | J5/Pins 5 & 6 | |
1.5x |
Open | Open | Open | |
| 2x | Open | Open | Closed | |
| 2.5x | Open | Closed | Closed | |
| 3x | Open | Closed | Open | |
| 3.5x | Open | Open | Open | |
| 4x | Closed | Open | Closed | |
| 4.5 | Closed | Closed | Closed | |
| 5x | Closed | Closed | Open | |
| 5.5x | Closed | Open | Open | |
CPU MULTIPLIER SELECTION (INTEL PENTIUM, INTEL MMX) |
||||
Multiplier |
J5/Pins 1 & 2 | J5/Pins 3 & 4 | J5/Pins 5 & 6 | |
1.5x |
N/A | Open | Open | |
| 2x | N/A | Open | Closed | |
| » | 2.5x | N/A | Closed | Closed |
| 3x | N/A | Closed | Open | |
| 3.5x | N/A | Open | Closed | |
CPU VOLTAGE SELECTION |
|||||
Voltage |
J1 | J2 | J3 | J4 | |
| 2v | Open | Open | Open | Open | |
| 2.1v | Closed | Open | Open | Open | |
| 2.2v | Open | Closed | Open | Open | |
| 2.4v | Closed | Closed | Open | Open | |
| 2.5v | Open | Open | Closed | Open | |
| 2.6v | Closed | Open | Closed | Open | |
| 2.7v | Open | Closed | Closed | Open | |
| » | 2.8v | Closed | Closed | Closed | Open |
| 2.9v | Open | Open | Open | Closed | |
| 3v | Closed | Open | Open | Closed | |
| 3.1v | Open | Closed | Open | Closed | |
| 3.2v | Closed | Closed | Open | Closed | |
| 3.3v | Open | Open | Closed | Closed | |
| 3.4v | Closed | Open | Closed | Closed | |
| 3.5v | Open | Closed | Closed | Open | |
| 3.6v | Closed | Closed | Closed | Closed | |
