AAEON TECHNOLOGY, INC.
SBC-357
| Device Type | Single Board Computer |
| Processor | 80386SX |
| Processor Speed | 40MHz |
| Chip Set | ALI |
| Video Chip Set | Chips and Technology |
| Maximum Onboard Memory | 72MB |
| Maximum Video Memory | 1MB |
| BIOS | AMI |
| Dimensions | 185mm x 122mm |
| I/O Options | Floppy drive interface, IDE interface, PS/2 mouse port, PS/2 keyboard port, serial interfaces (3), serial port, VGA feature connector, VGA port, PC/104 connectors (2), parallel interface |

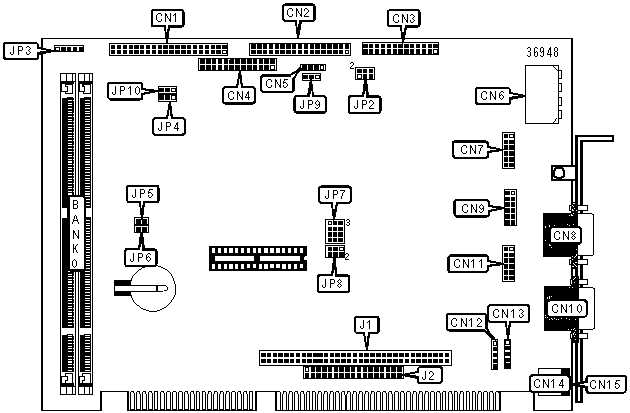

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| IDE interface | CN1 | Serial interface 4 | CN11 |
| Floppy drive interface | CN2 |
Keyboard interface | CN12 |
| Parallel interface | CN3 | Power LED & Keylock | CN13 |
| LCD interface | CN4 | PS/2 mouse port | CN14 |
| IR connector | CN5 | PS/2 keyboard port | CN15 |
| Power interface | CN6 | PC/104 connector (8-bit) | J1 |
| Serial interface 2 | CN7 | PC/104 connector (16-bit) | J2 |
| Serial port 1 | CN8 | IDE interface LED | JP1 |
| Serial interface 3 | CN9 | Reset switch | JP6 |
| VGA port | CN10 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CPU buzzer enabled | JP3 | Pins 3 & 4 closed |
| External speaker automatically enabled | JP3 | Open | |
| » | SHF clock from chipset C&T65545 enabled | JP4 | Pins 1 & 2 closed |
|
ASHF clock from SHF clock enabled | JP4 |
Pins 2 & 3 closed |
| » | Green PC mode disabled | JP5 | Open |
| Green PC mode enabled | JP5 |
Closed |
|
SERIAL PORT 3 & 4 INTERRUPT SELECTION |
||||||
IRQ Serial 3 |
IRQ Serial 4 | JP7/Pins 1 & 2 | JP7/Pins 2 & 3 | JP7/Pins 4 & 5 | JP7/Pins 5 & 6 | |
IRQ5 |
IRQ10 |
Closed | Open | Open | O`pen | |
| IRQ5 | IRQ11 | Closed | Open | Open | Open | |
| IRQ10 | IRQ5 | Open | Closed | Open | Open | |
| » | IRQ10 |
IRQ11 |
Open | Closed | Open | Open |
| IRQ11 | IRQ5 | Open | Open | Open | Closed | |
| IRQ11 | IRQ10 | Open | Open | Open | Closed | |
SERIAL PORT 3 & 4 INTERRUPT SELECTION (CONT.) |
||||||
IRQ Serial 3 |
IRQ Serial 4 | JP7/Pins 7 & 8 | JP7/Pins 8 & 9 | JP7/Pins 10 & 11 | JP7/Pins 11 & 12 | |
IRQ5 |
IRQ10 |
Open | Closed | Open | Open | |
| IRQ5 | IRQ11 | Open | Open | Open | Closed | |
| IRQ10 | IRQ5 | Closed | Open | Open | Open | |
| » | IRQ10 |
IRQ11 |
Open | Open | Open | Closed |
| IRQ11 | IRQ5 | Closed | Open | Open | Open | |
| IRQ11 | IRQ10 | Open | Closed | Open | Open | |
DISK ON CHIP ADDRESS SELECTION |
||||
Address |
JP8/Pins 1 & 2 | JP8/Pins 3 & 4 | JP8/Pins 5 & 6 | |
| CC00 | Open | Open | Open | |
| » | D000 | Closed | Open | Open |
| D400 | Open | Closed | Open | |
| D800 | Closed | Closed | Open | |
| DC00 | Open | Open | Closed | |
| Disabled | Closed | Closed | Closed | |
LCD VOLTAGE SELECTION |
|||
Voltage |
JP9 | JP10 | |
| » | 5v | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 3.3v | Pins 2 & 3 closed | Pins 2 & 3 closed | |
SERIAL PROTOCOL SELECTION |
||
Protocol |
JP2 | |
| » | RS-232 | Pins 1 & 2 closed |
| RS-422 | Pins 3 & 4 closed | |
| RS-485 | Pins 5 & 6 closed | |
