SOYO COMPUTER CO., LTD.
SY-6IBM
| Device Type | Mainboard |
| Processor | Pentium III/Pentium II/Celeron |
| Processor Speed | 233/266/300/333/350/366/400/433/450/500/550MHz |
| Chip Set | Intel 440BX |
| Video Chip Set | ATI |
| Audio Chip Set | Yamaha |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 244mm x 220mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, Green PC connector, serial interface, serial port, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector |

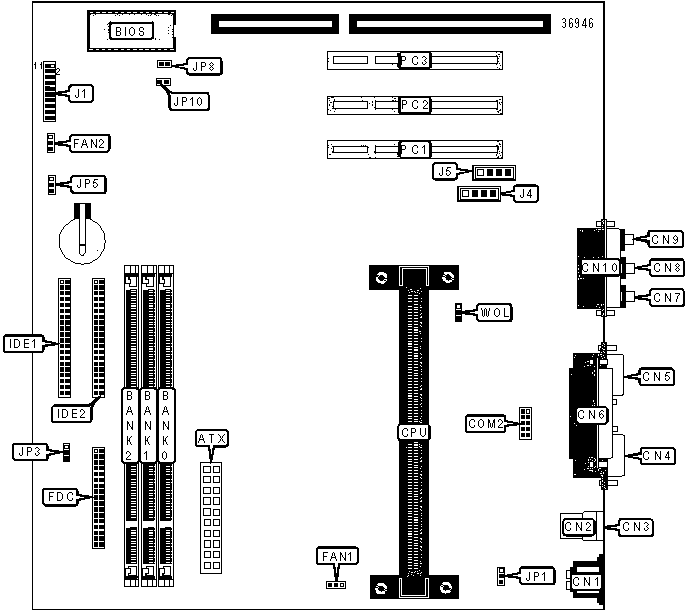

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface 1 | IDE1 |
| PS/2 mouse port | CN1 | IDE interface 2 | IDE2 |
| USB port 1 | CN2 | IR connector | IR |
| USB port 2 | CN3 | Power LED & keylock | J1/Pins 1 - 5 |
| Serial port | CN4 | Speaker | J1/Pins 7 - 10 |
| VGA port | CN5 | IDE interface LED | J1/Pins 11 & 12 |
| Parallel port | CN6 | Turbo LED | J1/Pins 14 & 15 |
| Line out | CN7 | Power switch | J1/Pins 17 & 18 |
| Line in | CN8 | Reset switch | J1/Pins 19 & 20 |
| Microphone in | CN9 | Audio in - CD-ROM 1 | J4 |
| Game port | CN10 | Audio in - CD-ROM 2 | J5 |
| Serial interface | COM2 | Green PC connector | JP10 |
| CPU fan power | FAN1 | 32-bit PCI slots | PC1 - PC3 |
| Chassis fan power | FAN2 | Wake-on-LAN connector | WOL |
| Floppy drive interface | FDC | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Power-on keyboard enabled | JP1 | Pins 1 & 2 closed |
| Power-on keyboard disabled | JP1 | Pins 2 & 3 closed |
|
|
AGP clock at 66MHz or 100MHz through BIOS | JP3 | Pins 2 & 3 closed |
| AGP clock at 100MHz | JP3 | Pins 1 & 2 closed |
|
» |
CMOS memory normal operation | JP5 |
Pins 1 & 2 closed |
| CMOS memory clear | JP5 |
Pins 2 & 3 closed |
|
| Power button enabled | JP8 |
Closed |
|
| Power button through BIOS control enabled | JP8 |
Open |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 512KB cache is located on the Pentium III CPUs. |
