MICRO-STAR INTERNATIONAL CO., LTD.
MS-6165
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466MHz |
| Chip Set | Intel 440ZX |
| Video Chip Set | SiS |
| Audio Chip Set | Creative Technologies |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Maximum Video Memory | Unidentified |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Unidentified |
| Dimensions | 250mm x 223mm |
| I/O Options | Ethernet 10BaseT connector, floppy drive interface, game interface, IDE interfaces (2), parallel port, PS/2 keyboard port, PS/2 mouse port, serial interface (2), VGA port, riser slot, IR connectors (2), ATX power connector, audio in - CD-ROM, Wake-on-Modem connector, Wake-on-LAN connector |

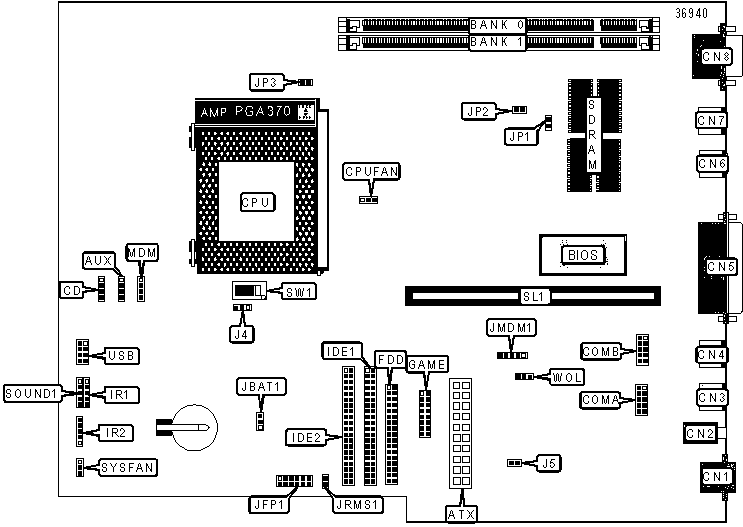

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface 2 | IDE2 |
| Auxilliary in | AUX | IR connector 1 | IR1 |
| RJ-45 UTP connector | CN1 | IR connector 2 | IR2 |
| Speaker | CN2 | Reset switch | JFP1/Pins 1 & 2 |
| PS/2 keyboard port | CN3 | IDE interface LED | JFP1/Pins 3 & 4 |
| PS/2 mouse port | CN4 | Power LED | JFP1/Pins 5 & 9 |
| Parallel port | CN5 | Power switch | JFP1/Pins 6 & 8 |
| TV-out port | CN6 | Green PC switch | JFP1/Pins 8 & 10 |
| S-out port | CN7 | LAN LED | JFP1/Pins 11 & 12 |
| Audio in - CD-ROM | CD | Wake-on-Modem connector | JMDM1 |
| Serial interface 1 | COMA | Remote power switch | JRMS1 |
| Serial interface 2 | COMB | Wake-on-Modem in connector | MDM |
| CPU fan power | CPUFAN | Riser slot | SL1 |
| Floppy drive interface | FDD | Sound interface | SOUND1 |
| Game interface | GAME | Chassis fan power | SYSFAN |
| IDE interface 1 | IDE1 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBAT1 |
Pins 1 & 2 closed |
| CMOS memory clear | JBAT1 |
Pins 2 & 3 closed |
|
| AGP clock selector at CPU clock speed | J5 | Closed | |
| AGP clock selector at 2/3 CPU clock speed | J5 | Open | |
| » | Factory configured - do not alter | JP1 | Unidentified |
| » | Factory configured - do not alter | JP2 | Unidentified |
| » | Factory configured - do not alter | JP3 | Unidentified |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU MULTIPLIER SELECTION |
||||
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
3x |
On | On | Off | On |
| 3.5x | On | Off | Off | On |
| 4x | On | On | On | Off |
| 4.5x | On | Off | On | Off |
| 5x | On | On | Off | Off |
| 5.5x | On | Off | Off | Off |
| 6x | Off | On | On | On |
| 6.5x | Off | Off | On | On |
| 7x | Off | On | Off | On |
| 7.5x | Off | Off | Off | On |
| 8x | Off | On | On | Off |
