BOARDRUNNER

5AMVP3 (VER. 1.2)
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 6X86MX/CX M II/AM K5/AM K6/ AM K6-2/Pentium/Pentium MMX
Processor Speed 90/100/120/133/150/166/180/200/233/250/266/300MHz
Chip Set VIA
Maximum Onboard Memory 384MB (EDO & SDRAM supported)
Cache 512/1024KB
BIOS Award
Dimensions 305mm x 210mm
I/O Options 16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector

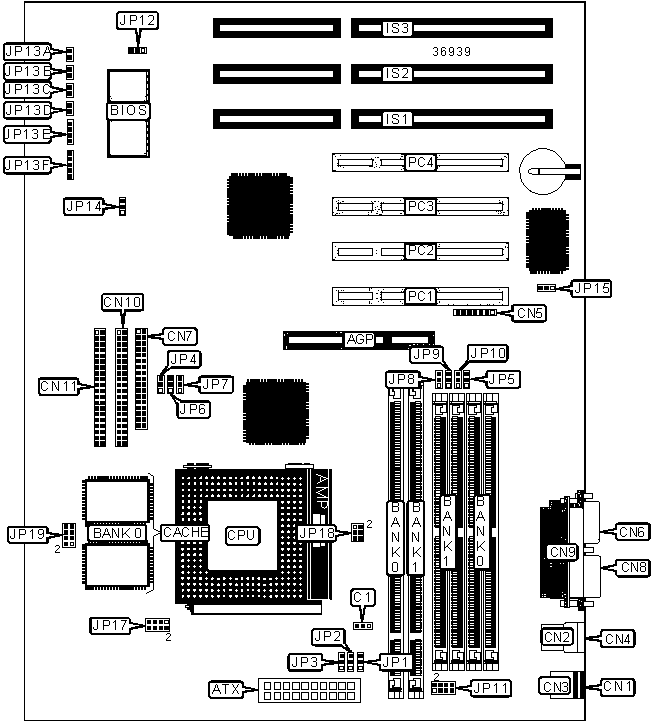

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

IDE interface 1

CN10

ATX power connector

ATX

IDE interface 2

CN11

CPU fan power

C1

16-bit ISA slots

IS1-IS3
PS/2 keyboard port

CN1

 IDE interface LED

JP13A

USB port 1

CN2

Green PC connector

JP13B

PS/2 mouse port

CN3

Turbo LED

JP13C

USB port 2

CN4

Reset switch

JP13D

IR connector

CN5

Speaker

JP13E

Serial port 2

CN6

Power LED & keylock

JP13F

Floppy drive interface

CN7

Wake-on-LAN connector

JP15

Serial port 1

CN8

32-bit PCI slots

PC1 – PC4

Parallel port

CN9




USER CONFIGURABLE SETTINGS

Function

Label

Position

  Flash BIOS voltage select 5v

JP12

Pins 1 & 2 closed

  Flash BIOS voltage select 12v

JP12

Pins 2 & 3 closed

»

CMOS memory normal operation

JP14

Pins 1 & 2 closed

  CMOS memory clear

JP14

Pins 2 & 3 closed


SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

36MB

(2) 8M x 36

None

36MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note:  Board accepts EDO memory.
Note:  DIMM Bank 0 and SIMM Bank 1 cannot be used simultaneously.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

16MB

(1) 2M x 64

None

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

32MB

(1) 4M x 64

None

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

64MB

(1) 8M x 64

None

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64
Note:  Board supports EDO & SDRAM memory.
Note:  DIMM Bank 0 and SIMM Bank 1 cannot be used simultaneously.


DIMM FREQUENCY CONFIGURATION

Frequency

JP4

JP5

Same as CPU clock

Pins 2 & 3 closed

Pins 1 & 2 closed

66MHz

Pins 1 & 2 closed

Pins 2 & 3 closed


DIMM VOLTAGE CONFIGURATION

Voltage

JP11

3.3v

Pins 1 & 2, 3 & 4 closed

5v

Pins 5 & 6, 7 & 8 closed


CACHE CONFIGURATION

Size

Bank 0

512KB

(2) 36K x 32

1MB

(2) 128 x 32


CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3
Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

Open

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

200MHz

75MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86L, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

150MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

166MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

166MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

200MHz

75MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

233MHz

75MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

266MHz

83MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

166MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

166MHz

60MHz

2.5x

2 & 3

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

1 & 2, 3 & 4, 5 & 6

233MHz

75MHz

2.5x

1 & 2

2 & 3

1 & 2

1 & 2, 3 & 4, 5 & 6

266MHz

83MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX MII)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

300MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX MII, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

300MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

120MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

133MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

90MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

Open

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

Open

120MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

Open

133MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

Open

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

266MHz

66MHz

4x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

300MHz

66MHz

4.5x

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

266MHz

66MHz

4x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

300MHz

66MHz

4.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

250MHz

100MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

2 & 3

300MHz

100MHz

3x

1 & 2

2 & 3

1 & 2

1 & 2

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6-2, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

250MHz

100MHz

2.5x

1 & 2

1 & 2

2 & 3

1 & 2, 3 & 4, 5 & 6

300MHz

100MHz

3x

1 & 2

1 & 2

2 & 3

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

166MHz

66MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

180MHz

60MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

90MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

Open

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

Open

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

Open

133MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

Open

150MHz

60MHz

2.5x

2 & 3

1 & 2

1 & 2

Open

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

Open

180MHz

60MHz

3x

2 & 3

1 & 2

1 & 2

Open

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

JP1

JP2

JP3

JP6

JP7

166MHz 66MHz 2.5x

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

200MHz

66MHz

3x

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (INTEL MMX, CON’T)

CPU speed

Clock speed

Multiplier

JP8

JP9

JP10

JP18

166MHz 66MHz 2.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

1 & 2, 3 & 4, 5 & 6

Note: Pins designated should be in the closed position.


VIO VOLTAGE SELECTION

Voltage

JP19/Pins 1 & 2

JP19/Pins 3 & 4

 JP19/Pins 5 & 6 JP19/Pins 7& 8

3.3v

Closed

Open

 Closed Closed

3.45v

Closed

Closed

 Closed Closed


CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP17/Pins 1 & 2

JP17/Pins 3 & 4

 JP17/Pins 5 & 6 JP17/Pins 7& 8

3.3v

Closed

Open

 Closed Closed

3.5v

Closed

Closed

 Closed Closed


CPU VOLTAGE SELECTION (DUAL)

V core

JP17/Pins 1 & 2

JP17/Pins 3 & 4

 JP17/Pins 5 & 6 JP17/Pins 7& 8

2.1v

Closed

Open

 Open Open

2.2v

Open

Closed

Open Open

2.7v

Closed

Closed

Closed Open

2.8v

Open

Open

 Open Closed

2.9v

Closed

Open

 Open Closed

3.2v

Open

Open

 Closed Closed
