BOARDRUNNER
6VBX2
| Device Type | Mainboard, |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | VIA |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 230mm x 220mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (3), floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, AT keyboard connector, serial interfaces (2), IR connector, USB interface, ATX power connector, AT power connector, AGP slot, line in interface, line out interface, microphone in interface, audio in - CD-ROMs (2), SB-Link connector, wake-on-LAN connector |

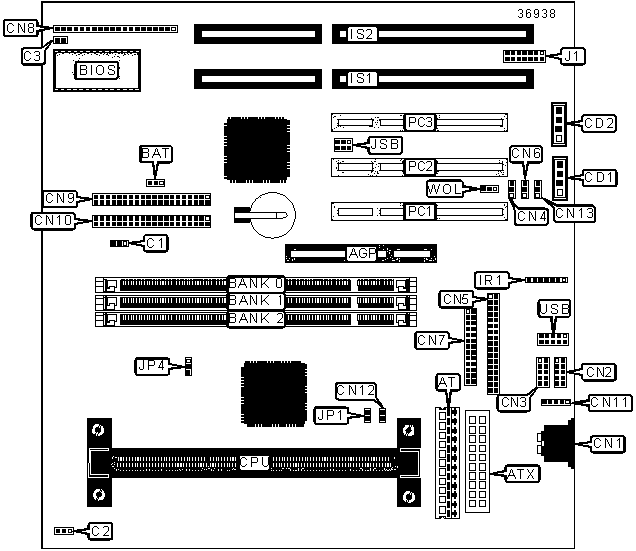

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Reset switch | CN8/Pins 12 & 13 |
| AT power connector | AT |
IDE interface LED | CN8/Pins 15 & 16 |
| ATX power connector | ATX |
Turbo LED | CN8/Pins 18 & 19 |
| Chassis fan power | C1 |
Green PC connector | CN8/Pins 21 & 22 |
| Chassis fan power | C2 |
IDE interface 1 | CN9 |
| Soft off power supply | C3 |
IDE interface 2 | CN10 |
| Audio in - CD-ROM 1 | CD1 | PS/2 mouse interface | CN11 |
| Audio in - CD-ROM 2 | CD2 | CPU temperature sensor | CN12 |
| AT keyboard connector | CN1 |
Line in interface | CN13 |
| Serial interface 1 | CN2 |
IR connector | IR1 |
| Serial interface 2 | CN3 |
16-bit ISA slots | IS1-IS2 |
| Microphone in interface | CN4 |
Game interface | J1 |
| Floppy drive interface | CN5 |
SB-Link connector | JSB |
| Line out interface | CN6 |
32-bit PCI slots | PC1 – PC3 |
| Parallel interface | CN7 |
USB interface | USB |
| Power LED & keylock | CN8/Pins 1 – 5 |
Wake-on-LAN connector | WOL |
| Speaker | CN8/Pins 7 – 10 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| » | Factory configured - do not alter | JP1 | Closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
DIMM FREQUENCY CONFIGURATION |
||
CPU |
SDRAM |
JP4 |
66MHz |
66MHz |
Pins 1 & 2 closed |
100MHz |
66MHz |
Pins 2 & 3 closed |
100MHz |
100MHz |
Pins 1 & 2 closed |
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
