BOARDRUNNER
6BX2 (VER. 1.0)
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 200/233/266/300/333/350/400/450/500MHz |
| Chip Set | Intel 440BX |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 220mm x 220mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (3), floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, serial interfaces (2), IR connector, USB interface, ATX power connector, AT power connector, AT keyboard connector, AGP slot, line in interface, line out interface, microphone in interface, audio in - CD-ROMs (2), SB-link connector, wake on LAN connector |

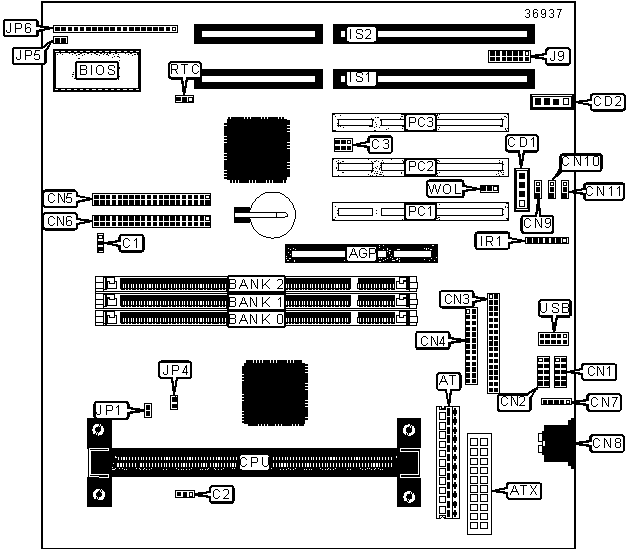

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Microphone in interface | CN10 |
| AT power connector | AT |
Line out interface | CN11 |
| ATX power connector | ATX |
IR connector | IR1 |
| Chassis fan power | C1 |
16-bit ISA slots | IS1-IS2 |
| Chassis fan power | C2 |
Game interface | J9 |
| SB-link connector | C3 |
CPU temperature sensor | JP4 |
| Audio in - CD-ROM 1 | CD1 | Soft off power supply | JP5 |
| Audio in - CD-ROM 2 | CD2 | Power LED & keylock | JP6/pins 1 – 5 |
| Serial interface 2 | CN1 |
Speaker | JP6/pins 7 – 10 |
| Serial interface 1 | CN2 |
Reset switch | JP6/pins 12 & 13 |
| Floppy drive interface | CN3 |
IDE interface LED | JP6/pins 15 & 16 |
| Parallel interface | CN4 |
Turbo LED | JP6/pins 18 & 19 |
| IDE interface 2 | CN5 |
Green PC connector | JP6/pins 21 & 22 |
| IDE interface 1 | CN6 |
32-bit PCI slots | PC1 – PC3 |
| PS/2 mouse interface | CN7 |
USB interface | USB |
| AT keyboard connector | CN8 |
Wake-on-LAN connector | WOL |
| Line in interface | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 | Closed |
» |
CMOS memory normal operation | RTC |
Pins 1 & 2 closed |
| CMOS memory clear | RTC |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs.. |
