BOARDRUNNER
PT-TILT (440LX)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 266/300/333/366/400/433/466MHz |
| Chip Set | Intel 440LX |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 220mm x 220mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, AT keyboard connector, serial interfaces (2), IR connector, USB interfaces (2), ATX power connector, AT power connector, AGP slot, Game/MIDI header, audio in - CD-ROMs (2), SB-Link connector, Wake-on-LAN connector |

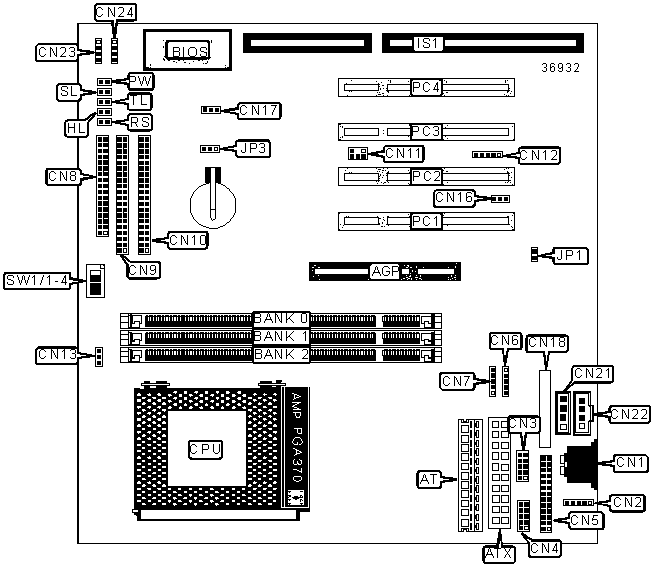

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
CPU fan power | CN13 |
| AT power connector | AT | Wake-on-LAN connector | CN16 |
| ATX power connector | ATX |
Chassis fan power | CN17 |
| AT keyboard connector | CN1 | Game/MIDI header | CN18 |
| PS/2 mouse interface | CN2 | Audio in - CD-ROM 1 | CN21 |
| Serial interface 1 | CN3 | Audio in - CD-ROM 2 | CN22 |
| Serial interface 2 | CN4 | Power LED | CN23 |
| Parallel interface | CN5 | Speaker | CN24 |
| USB interface 1 | CN6 | IDE interface LED | HL |
| USB interface 2 | CN7 | 32-bit PCI slots | PC1 - PC4 |
| Floppy drive interface | CN8 | Green PC connector | PW |
| IDE interface 1 | CN9 | Reset switch | RS |
| IDE interface 2 | CN10 | Green PC LED | SL |
| SB-Link connector | CN11 | 16-bit ISA slots | SL1 |
| IR connector | CN12 | Turbo LED | TL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
On-board sound enabled | JP1 | Closed |
| On-board sound disabled | JP1 | Open | |
| » | CMOS memory normal operation | JP3 | Pins 1 & 2 closed |
|
CMOS memory clear | JP3 | Pins 2 & 3 closed |
CACHE CONFIGURATION |
| Note: 128/256KB cache is located on the Celeron 300A and greater CPUs. |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CPU SPEED SELECTION (PENTIUM) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
233MHz |
66MHz |
3.5x |
Off | Off | On | On |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
| 400MHz | 66MHz | 6x | On | On | On | Off |
| 433MHz | 66MHz | 6.5x | Off | On | On | Off |
| 466MHz | 66MHz | 7x | On | Off | On | Off |
