ACER, INC.
MX59PRO
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 6X86MX/AM K5/AM K6/AM K6-2/AM K6-III/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 100/133/150/166/200/233/266/300/333/350/366/380/ 400/433/450/475MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Cache | 512KB |
| BIOS | Award |
| Dimensions | 220mm x 245mm |
| I/O Options | 16-bit ISA slot, 32-bit PCI slots (4), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, keyboard port, serial port, serial interface, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector, Wake-on-modem connector |

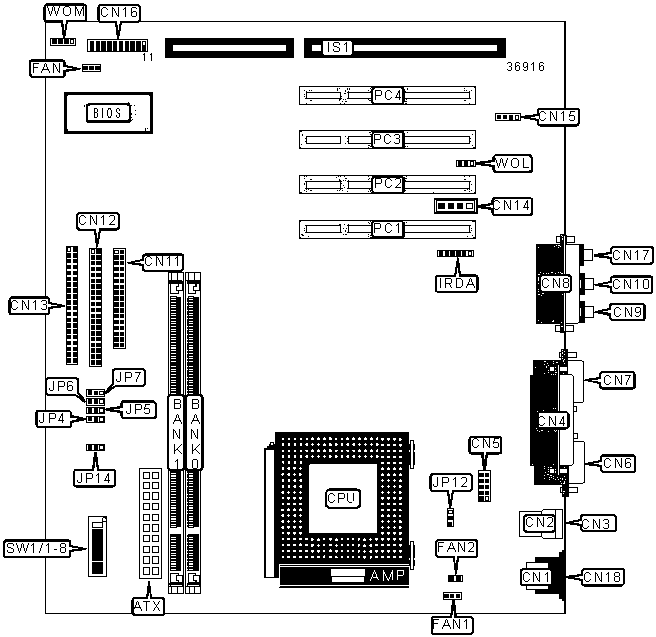

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Keyock | CN16/Pins 1 & 2 |
| PS/2 mouse port | CN1 | IDE interface LED | CN16/Pins 3-6 |
| USB port 1 | CN2 | Speaker | CN16/Pins 7-10 |
| USB port 2 | CN3 | Power switch | CN16/Pins 11 & 12 |
| Parallel port | CN4 | ACPI & power LED | CN16/Pins 13-15 |
| Serial interface | CN5 | Reset switch | CN16/Pins 19 & 20 |
| Serial port | CN6 | Microphone in | CN17 |
| VGA port | CN7 | Keyboard port | CN18 |
| Game port | CN8 | Chassis fan power | FAN |
| Line out | CN9 | CPU fan power | FAN1 |
| Line in | CN10 | CPU fan power | FAN2 |
| Floppy drive interface | CN11 | IR connector | IRDA |
| IDE interface 2 | CN12 | 16-bit ISA slot | IS1 |
| IDE interface 1 | CN13 | 32-bit PCI slots | PC1 - PC4 |
| Audio in - CD-ROM | CN14 | Wake-on-LAN connector | WOL |
| Mono in/Mic out connector | CN15 | Wake-on-modem connector | WOM |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CPU voltage selection 3.32V | JP12 | Pins 1 & 2 closed |
| CPU voltage selection 3.45V | JP12 | Pins 2 & 3 closed | |
| » | CMOS memory normal operation | JP14 | Pins 1 & 2 closed |
|
CMOS memory clear | JP14 | Pins 2 & 3 closed |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CPU SPEED SELECTION (CX 6X86) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
166MHz |
66MHz |
2x |
On | Off | Off |
200MHz |
75MHz |
2x |
On | Off | Off |
CPU SPEED SELECTION (CX 6X86 CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
166MHz |
66MHz |
2x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
200MHz |
75MHz |
2x |
1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (CX 6X86L) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
166MHz |
66MHz |
2x |
On | Off | Off |
200MHz |
75MHz |
2x |
On | Off | Off |
CPU SPEED SELECTION (CX 6X86L CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
166MHz |
66MHz |
2x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
200MHz |
75MHz |
2x |
1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (CX 6X86MX) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
200MHz |
66MHz |
2.5x |
On | On | Off |
200MHz |
75MHz |
2x |
On | Off | Off |
| 233MHz | 66MHz | 3x | Off | On | Off |
| 233MHz | 83.3MHz | 2x | On | Off | Off |
| 266MHz | 66MHz | 3.5x | Off | Off | Off |
| 300MHz | 66MHz | 3.5x | Off | Off | Off |
| 300MHz | 75MHz | 3x | Off | On | Off |
| 333MHz | 66MHz | 4x | On | Off | On |
| 333MHz | 75MHz | 3.5x | Off | Off | Off |
| 333MHz | 83.3MHz | 3x | Off | On | Off |
| 333MHz | 100MHz | 2.5x | On | On | Off |
| 366MHz | 100MHz | 2.5x | On | On | Off |
CPU SPEED SELECTION (CX 6X86MX CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
200MHz |
66MHz |
2.5x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
200MHz |
75MHz |
2x |
1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 233MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 233MHz | 83.3MHz | 2x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
| 266MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 300MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 300MHz | 75MHz | 3x | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 333MHz | 66MHz | 4x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 333MHz | 75MHz | 3.5x | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 333MHz | 83.3MHz | 3x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
| 333MHz | 100MHz | 2.5x | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
| 366MHz | 100MHz | 2.5x | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K5) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
100MHz |
66MHz |
1.5x |
Off | Off | Off |
133MHz |
66MHz |
1.5x |
Off | Off | Off |
| 166MHz | 66MHz | 1.75x | On | On | Off |
CPU SPEED SELECTION (AM K5 CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
100MHz |
66MHz |
1.5x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
133MHz |
66MHz |
1.5x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 166MHz | 66MHz | 1.75x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K6) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
166MHz |
66MHz |
2.5x |
On | On | Off |
200MHz |
66MHz |
3x |
Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | Off | Off |
| 266MHz | 66MHz | 4x | On | Off | On |
| 300MHz | 66MHz | 4.5x | On | On | On |
CPU SPEED SELECTION (AM K6 CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
166MHz |
66MHz |
2.5x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
200MHz |
66MHz |
3x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 266MHz | 66MHz | 4x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 300MHz | 66MHz | 4.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K6-2) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
300MHz |
100MHz |
3x |
Off | On | Off |
333MHz |
95MHz |
3.5x |
Off | Off | Off |
| 350MHz | 100MHz | 3.5x | Off | Off | Off |
| 366MHz | 66MHz | 5.5x | Off | Off | On |
| 380MHz | 95MHz | 4x | On | Off | On |
| 400MHz | 100MHz | 4x | On | Off | On |
| 450MHz | 100MHz | 4.5x | On | On | On |
| 475MHz | 95MHz | 5x | Off | On | On |
CPU SPEED SELECTION (AM K6-2 CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
300MHz |
100MHz |
3x |
1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
333MHz |
95MHz |
3.5x |
2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 |
| 350MHz | 100MHz | 3.5x | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
| 366MHz | 66MHz | 5.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 380MHz | 95MHz | 4x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 |
| 400MHz | 100MHz | 4x | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
| 450MHz | 100MHz | 4.5x | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
| 475MHz | 95MHz | 5x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (AM K6-III) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
400MHz |
100MHz |
4x |
On | Off | On |
450MHz |
100MHz |
4.5x |
On | On | On |
CPU SPEED SELECTION (AM K6-III CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
400MHz |
100MHz |
4x |
1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
450MHz |
100MHz |
4.5x |
1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (IDT C6) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
150MHz |
75MHz |
2x |
On | Off | Off |
200MHz |
66MHz |
3x |
Off | On | Off |
CPU SPEED SELECTION (IDT C6 CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
150MHz |
75MHz |
2x |
1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
200MHz |
66MHz |
3x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (PENTIUM) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
100MHz |
66MHz |
1.5x |
Off | Off | Off |
133MHz |
66MHz |
2x |
On | Off | Off |
| 166MHz | 66MHz | 2.5X | On | On | Off |
| 200MHz | 66MHz | 3X | Off | On | Off |
CPU SPEED SELECTION (PENTIUM CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
100MHz |
66MHz |
1.5x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
133MHz |
66MHz |
2x |
1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 166MHz | 66MHz | 2.5X | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 200MHz | 66MHz | 3X | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU SPEED SELECTION (PENTIUM MMX) |
|||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
| 166MHz | 66MHz | 2.5X | On | On | Off |
| 200MHz | 66MHz | 3X | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM MMX CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP4 |
JP5 | JP6 |
JP7 |
| 166MHz | 66MHz | 2.5X | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 200MHz | 66MHz | 3X | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | ||||||
CPU VOLTAGE SELECTION (SINGLE) |
|||||
Voltage |
SW1/4 | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
| 3.3V | On | Off | On | On | Off |
| 3.45V | Off | On | On | On | Off |
| 3.52V | On | On | On | On | Off |
CPU VOLTAGE SELECTION (DUAL) |
|||||
Voltage |
SW1/4 | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
| 2.2V | Off | On | Off | Off | Off |
| 2.4V | Off | Off | On | Off | Off |
| 2.8V | Off | Off | Off | On | Off |
| 2.9V | On | Off | Off | On | Off |
| 3.2V | Off | Off | On | On | Off |
