ACER, INC.
MX3ZA
Device Type | Mainboard |
Processor | Celeron |
Processor Speed | 300/333/350/366/400/433MHz |
Chip Set | Intel 440ZX |
Video Chip Set | ATI |
Audio Chip Set | ESS |
Maximum Onboard Memory | 256MB (SDRAM supported) |
Maximum Video Memory | Unidentified |
Maximum Audio Memory | Unidentified |
Cache | 0/128KB (located on the Celeron CPU) |
BIOS | Award |
Dimensions | 244mm x 220mm |
I/O Options | 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, serial interface, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, Wake-on-LAN connector, Wake-on-Modem connector, Modem/voice connector |

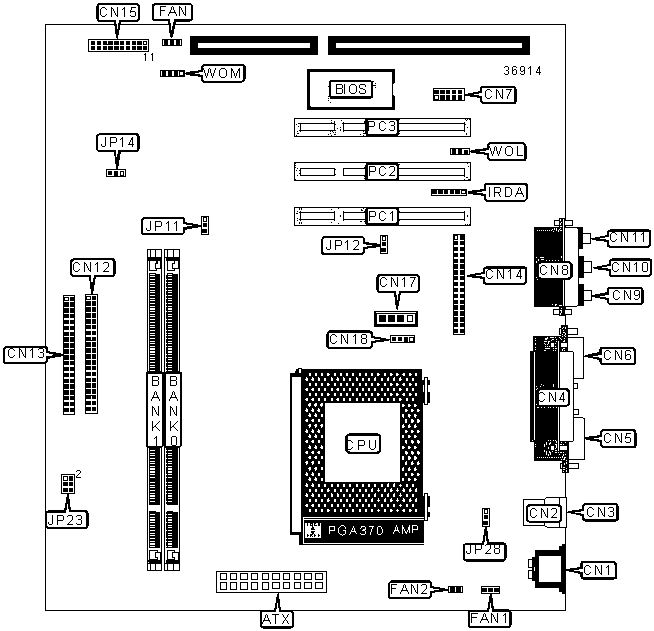

CONNECTIONS |
|||
Purpose | Location |
Purpose | Location |
ATX power connector | ATX |
Keylock | CN15/Pins 1 & 2 |
PS/2 mouse port | CN1 | IDE interface LED | CN15/Pins 3-6 |
USB port 1 | CN2 | Speaker | CN15/Pins 7-10 |
USB port 2 | CN3 | Power switch | CN15/Pins 11 & 12 |
Parallel port | CN4 | ACPI & Power LED | CN15/Pins13-15 |
Serial port | CN5 | Reset switch | CN15/Pins 19 & 20 |
VGA port | CN6 | Audio in - CD-ROM | CN17 |
Serial interface | CN7 | Modem/voice connector | CN18 |
Game port | CN8 | Chassis fan power | FAN |
Line out | CN9 | CPU fan power 1 | FAN1 |
Line in | CN10 | CPU fan power 2 | FAN2 |
Microphone in | CN11 | IR connector | IRDA |
IDE interface 2 | CN12 | 32-bit PCI slots | PC1 - PC3 |
IDE interface 1 | CN13 | Wake-on-LAN connector | WOL |
Floppy drive interface | CN14 | Wake-on-Modem connector | WOM |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
On-board Video enabled | JP11 | Pins 1 & 2 closed |
On-board Video disabled | JP11 | Pins 2 & 3 closed | |
» | On-board Audio enabled | JP12 | Pins 1 & 2 closed |
|
On-board Audio disabled | JP12 | Pins 2 & 3 closed |
» | CMOS memory normal operation | JP14 | Pins 1 & 2 closed |
CMOS memory clear | JP14 | Pins 2 & 3 closed | |
Wake on mouse/keyboard disabled | JP28 | Pins 1 & 2 closed | |
Wake on mouse/keyboard enabled | JP28 | Pins 2 & 3 closed |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
256MB | (1) 16M x 64 | (1) 16M x 64 |
Note:
Board supports SDRAM memory. Note: To reach maximum of 256MB, double sided DIMM's must be used. |
CACHE CONFIGURATION |
Note: 128KB cache is located on the Celeron 300A and greater CPU's. |
AGP CLOCK SPEED SELECTION |
||
Setting |
JP23 | |
» | Auto |
Pins 1 & 2 closed |
AGP speed equal to CPU speed |
Pins 3 & 4 closed | |
AGP speed 3/2 of CPU speed |
Pins 5 & 6 closed |
