ACER, INC.
MX3W
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/350/366/400/433MHz |
| Chip Set | Intel 810 |
| Video Chip Set | Intel |
| Audio Chip Set | Anolog Devices |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentifed |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 220mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, serial interface, VGA port, Audio Modem Riser slot, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, Wake-on-LAN connector, Wake-on-Modem connector, Modem/voice connector, SB-Link connector |

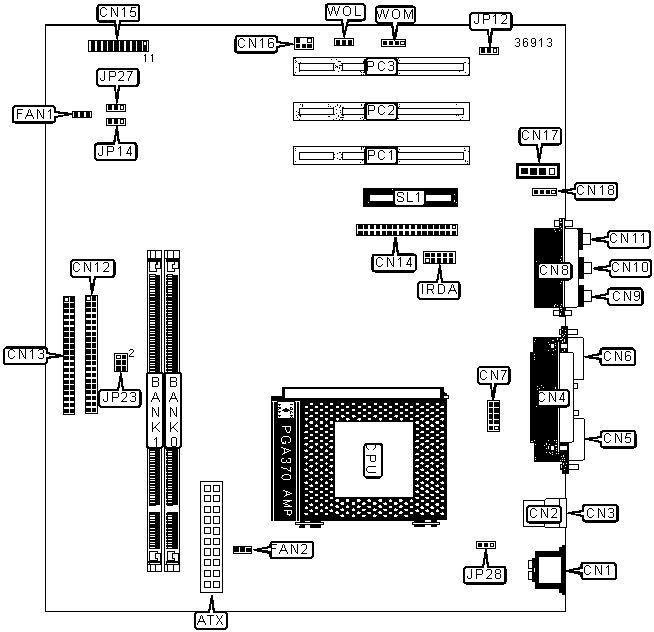

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
IDE interface LED | CN15/Pins 3-6 |
| PS/2 mouse port | CN1 | Speaker | CN15/Pins 7-10 |
| USB port 1 | CN2 | Power switch | CN15/Pins 11 & 12 |
| USB port 2 | CN3 | ACPI & Power LED | CN15/Pins13-15 |
| Parallel port | CN4 | Reset switch | CN15/Pins 19 & 20 |
| Serial port | CN5 | SB-Link connector | CN16 |
| VGA port | CN6 | Audio in - CD-ROM | CN17 |
| Serial interface | CN7 | Modem/voice connector | CN18 |
| Game port | CN8 | Chassis fan power | FAN1 |
| Line out | CN9 | CPU fan power | FAN2 |
| Line in | CN10 | IR connector | IRDA |
| Microphone in | CN11 | 32-bit PCI slots | PC1 - PC3 |
| IDE interface 2 | CN12 | Audio Modem Riser slot | SL1 |
| IDE interface 1 | CN13 | Wake-on-LAN connector | WOL |
| Floppy drive interface | CN14 | Wake-on-Modem connector | WOM |
| Keylock | CN15/Pins 1 & 2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
On-board audio enabled | JP12 | Pins 1 & 2 closed |
| On-board audio disabled | JP12 | Pins 2 & 3 closed | |
| » | CMOS memory normal operation | JP14 | Pins 1 & 2 closed |
|
CMOS memory clear | JP14 | Pins 2 & 3 closed |
| Speaker out disabled | JP27 | Pins 1 & 2 closed | |
| Speaker out enabled | JP27 | Pins 2 & 3 closed | |
| Wake on mouse/keyboard disabled | JP28 | Pins 1 & 2 closed | |
| Wake on mouse/keyboard enabled | JP28 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note:
Board supports SDRAM memory. Note: To reach maximum of 512MB, double sided DIMM's must be used. |
||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPU's. |
AGP CLOCK SPEED SELECTION |
||
Setting |
JP23 | |
| » | Auto |
Pins 1 & 2 closed |
AGP speed equal to CPU speed |
Pins 3 & 4 closed | |
AGP speed 3/2 of CPU speed |
Pins 5 & 6 closed | |
