SOYO COMPUTER CO., LTD.

SY-6VBA 133

Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/466/500/533/550/566/600MHz
Chip Set VIA
Maximum Onboard Memory 1.5GB (SDRAM supported)
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions Unidentified
I/O Options 16-bit ISA slots (2), 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on-LAN connector

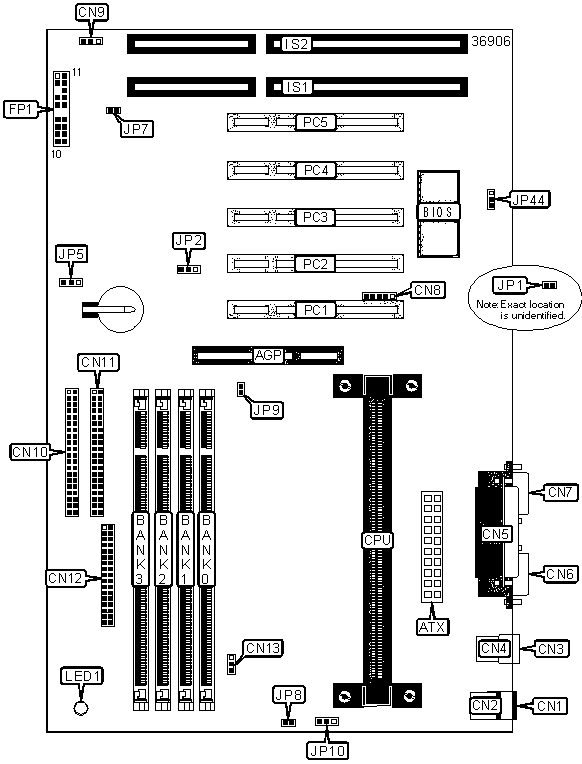

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot AGP Floppy drive interface CN12
ATX power connector ATX CPU fan power CN13
PS/2 keyboard port CN1 Reset switch FP1/Pins 1 & 2
PS/2 mouse port CN2 Power switch FP1/Pins 4 & 5
USB port 1 CN3 Turbo LED FP1/Pins 7 & 8
USB port 2 CN4 IDE interface LED FP1/Pins 9 & 10
Parallel port CN5 Power LED & keylock FP1/Pins 11 - 15
Serial port 1 CN6 Speaker FP1/Pins 17 - 20
Serial port 2 CN7 Green PC connector JP1
IR connector CN8 Wake-on-LAN connector JP44
System fan power CN9 16-bit ISA slots IS1 -IS2
IDE interface 1 CN10 32-bit PCI slots PC1 - PC5
IDE interface 2 CN11


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation JP5 Pins 1 & 2 closed
  CMOS memory clear JP5 Pins 2 & 3 closed
  Power on by keyboard enabled JP10 Pins 1 & 2 closed
  Power on by keyboard disabled JP10 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

None

None

None

(1) 1M x 64

16MB

None

None

(1) 1M x 64

(1) 1M x 64

16MB

None

None

None

(1) 2M x 64

24MB

None

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

None

None

(1) 2M x 64

(1) 2M x 64

32MB

None

None

None

(1) 4M x 64

48MB

None

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

None

None

(1) 4M x 64

(1) 4M x 64

64MB

None

None

None

(1) 8M x 64

80MB

(1) 1M x 64

(1) 1M x 64

(1) 4M x 64

(1) 4M x 64

96MB

None

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 2M x 64

(1) 2M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

None

None

(1) 8M x 64

(1) 8M x 64

128MB

None

None

None

(1) 16M x 64

144MB

(1) 1M x 64

(1) 1M x 64

(1) 8M x 64

(1) 8M x 64

160MB

(1) 2M x 64

(1) 2M x 64

(1) 8M x 64

(1) 8M x 64

192MB

None

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 4M x 64

(1) 4M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

None

None

(1) 16M x 64

(1) 16M x 64

256MB

None

None

None

(1) 32M x 64

272MB

(1) 1M x 64

(1) 1M x 64

(1) 16M x 64

(1) 16M x 64

288MB

(1) 2M x 64

(1) 2M x 64

(1) 16M x 64

(1) 16M x 64

320MB

(1) 4M x 64

(1) 4M x 64

(1) 16M x 64

(1) 16M x 64

384MB

None

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 8M x 64

(1) 8M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

None

None

(1) 32M x 64

(1) 32M x 64

528MB

(1) 1M x 64

(1) 1M x 64

(1) 32M x 64

(1) 32M x 64

544MB

(1) 2M x 64

(1) 2M x 64

(1) 32M x 64

(1) 32M x 64

576MB

(1) 4M x 64

(1) 4M x 64

(1) 32M x 64

(1) 32M x 64

640MB

(1) 8M x 64

(1) 8M x 64

(1) 32M x 64

(1) 32M x 64

768MB

None

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

1024MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

1040MB (1) 1M x 64 (1) 1M x 64 (1) 64M x 64 (1) 64M x 64
1056MB (1) 2M x 64 (1) 2M x 64 (1) 64M x 64 (1) 64M x 64
1088MB (1) 4M x 64 (1) 4M x 64 (1) 64M x 64 (1) 64M x 64
1152MB (1) 8M x 64 (1) 8M x 64 (1) 64M x 64 (1) 64M x 64
1280MB (1) 16M x 64 (1) 16M x 64 (1) 64M x 64 (1) 64M x 64
1536MB (1) 32M x 64 (1) 32M x 64 (1) 64M x 64 (1) 64M x 64
Note: Board supports SDRAM memory.
Note: DIMM modules should be installed in the order of Bank 3, Bank 2, Bank, 1, Bank 0.
Note: Capacity of Bank 0 & Bank 1 is 256MB each. Capacity of Bank 2 & Bank 3 is 512MB each.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs. 256/512KB cache is located on the Pentium II & Pentium III CPUs.


FSB BOOT FREQUENCY & AGP DIVIDER SELECTION

Boot-up FSB

BIOS FSB Group

AGP Divider

JP2

JP7

66

66 - 83

1 Pins 1 & 2 Closed

100

90 - 122

1.5 Pins 1 & 2 Open

133

124 - 155

2.0 Pins 2 & 3 Open
Note: Pins designated should be in the closed position.


CPU FSB SPEED SELECTION

FSB Speed

JP8

JP9

66MHz

Closed

Closed

100MHz

Open

Closed

133MHz

Closed

Open


DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

5V standby voltage is available from ATX power supply

LED1 Green Off 5V standby voltage is not available from ATX power supply
