BCM ADVANCED RESEARCH, INC.
IN810
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366/400/433/466MHz |
| Chip Set | Intel 810 |
| Video Chip Set | Intel 810 |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 4MB |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | AMI |
| Dimensions | 244mm x 216mm |
| I/O Options | 32-bit PCI slots (3), ATX power connector, Audio in - CD-ROM, Audio/Modem Riser slot, Auxiliary audio in, Floppy drive interface, Game/MIDI port, IDE interfaces (2), IR connector, Line in, Line out, Microphone in, Parallel port, PS/2 keyboard port, PS/2 mouse port, SB-Link connector, Serial interface, Serial port, TV/DFP connector, USB interface, USB ports (2), VGA port, Wake-on-LAN connector, Wake-on-modem connector |

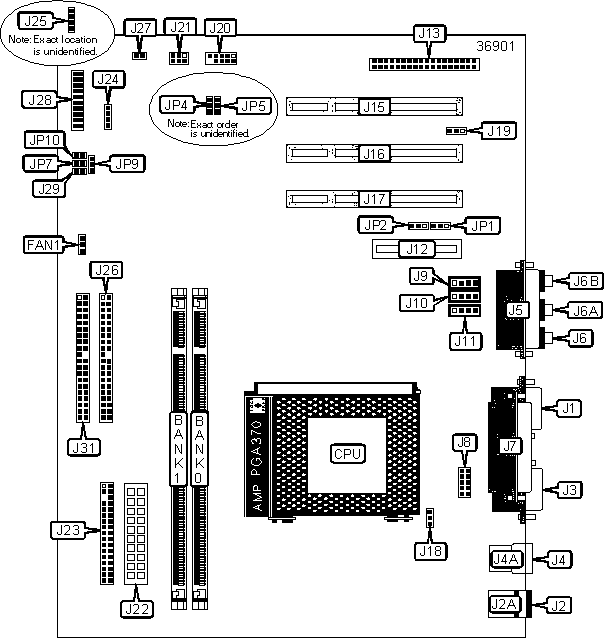

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| System fan power | FAN1 | TV/DFP connector | J13 |
| VGA port | J1 | 32-bit PCI slot 3 | J15 |
| PS/2 keyboard port | J2 | 32-bit PCI slot 2 | J16 |
| PS/2 mouse port | J2A | 32-bit PCI slot 1 | J17 |
| Serial port | J3 | CPU fan power | J18 |
| USB port 1 | J4 | Wake-on-LAN connector | J19 |
| USB port 2 | J4A | USB interface | J20 |
| Game/MIDI port | J5 | SB-Link connector | J21 |
| Line out | J6 | ATX power connector | J22 |
| Line in | J6A | Floppy drive interface | J23 |
| Microphone in | J6B | Speaker | J24 |
| Parallel port | J7 | IR connector | J25 |
| Serial interface | J8 | IDE interface 2 | J26 |
| Audio in - CD-ROM | J9 | Wake-on-modem connector | J27 |
| Auxiliary audio in | J10 | Front panel interface | J28 |
| Telephony connector | J11 | Chassis intrusion connector | J29 |
| Audio/Modem Riser slot | J12 | IDE interface 1 | J31 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Flash BIOS write protect enabled | JP7 | Open | |
| Flash BIOS write protect disabled | JP7 | Closed | |
» |
CMOS memory normal operation | JP9 | Unidentified |
| CMOS memory clear | JP9 | Unidentified | |
| Safe mode disabled | JP10 | Unidentified | |
| Safe mode enabled | JP10 | Unidentified | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
ONBOARD CODEC SELECTION |
||
Setting |
JP1 |
JP2 |
| Onboard Codec enabled | Closed | Pins 1 & 2 closed |
| Onboard Codec disabled | Open | Pins 2 & 3 closed |
USB SIGNAL SELECTION |
||
Setting |
JP4 |
JP5 |
| USB ports selected | Pins 1 & 2 closed | Pins 1 & 2 closed |
| USB interface selected | Pins 2 & 3 closed | Pins 2 & 3 closed |
