BCM ADVANCED RESEARCH, INC.
SL5598
| Device Type | Mainboard |
| Processor | CX 6x86/CX 6x86L/CX 6x86MX/AM K5/AM K6/Pentium/Pentium MMX/IDT C6 |
| Processor Speed | 75/90/100/120/133/150/166/200/233/266/300MHz |
| Chip Set | SiS |
| Video Chip Set | SiS |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/256/512KB |
| BIOS | Award |
| Dimensions | 229mm x 280mm |
| I/O Options | AT power connector, audio in - CD-ROM, EISA riser slot, feature connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, MIDI/audio interface, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), USB ports (2), VGA port, Wake-on-LAN connector |

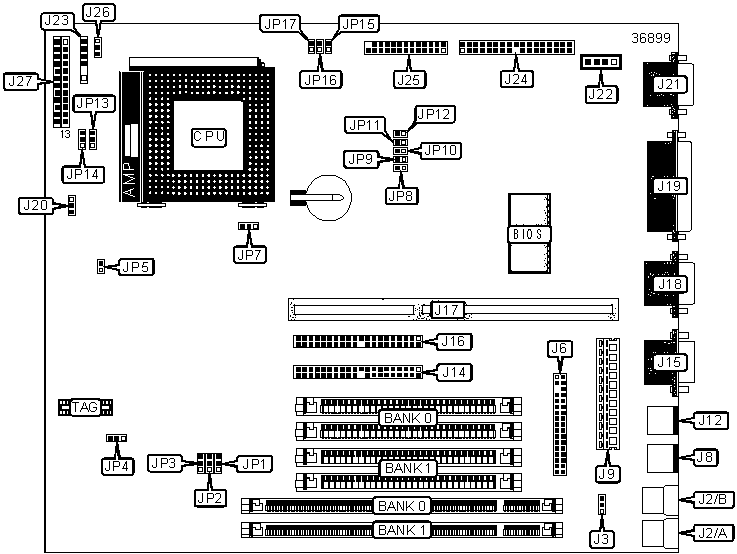

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| USB port 1 | J2/A | VGA port | J21 |
| USB port 2 | J2/B | Audio in - CD-ROM | J22 |
| Wake-on-LAN connector | J3 | IR connector | J23 |
| Floppy drive interface | J6 | MIDI/audio interface | J24 |
| PS/2 keyboard port | J8 | Feature connector | J25 |
| AT power connector | J9 | CPU fan power | J26 |
| PS/2 mouse port | J12 | Power LED & keylock | J27/Pins 1 - 5 |
| IDE interface 1 | J14 | Speaker | J27/Pins 7 - 10 |
| Serial port 1 | J15 | Power switch | J27/Pins 13 & 14 |
| IDE interface 2 | J16 | Reset switch | J27/Pins 15 & 16 |
| EISA riser slot | J17 | Green PC switch | J27/Pins 17 & 18 |
| Serial port 2 | J18 | IDE interface LED | J27/Pins 19 - 22 |
| Parallel port | J19 | 4 second power switch | J27/Pins 23 & 24 |
| System fan power | J20 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Onboard video enabled | JP4 | Pins 2 & 3 closed | |
| Onboard video disabled | JP4 | Pins 1 & 2 closed | |
| Linear Burst selected | JP5 | Closed | |
| Interleaved Burst selected | JP5 | Open | |
» |
CMOS memory normal operation | JP7 | Pins 1 & 2 closed |
| CMOS memory clear | JP7 | Pins 2 & 3 closed | |
| Note: Use Linear Burst mode for Cyrix CPUs. Use Interleaved Burst mode for other processors. | |||
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 32 |
None |
16MB |
(2) 1M x 32 |
(2) 1M x 32 |
16MB |
(2) 2M x 32 |
None |
24MB |
(2) 2M x 32 |
(2) 1M x 32 |
32MB |
(2) 2M x 32 |
(2) 2M x 32 |
32MB |
(2) 4M x 32 |
None |
40MB |
(2) 4M x 32 |
(2) 1M x 32 |
48MB |
(2) 4M x 32 |
(2) 2M x 32 |
64MB |
(2) 4M x 32 |
(2) 4M x 32 |
64MB |
(2) 8M x 32 |
None |
72MB |
(2) 8M x 32 | (2) 1M x 32 |
80MB |
(2) 8M x 32 |
(2) 2M x 32 |
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
128MB |
(2) 8M x 32 |
(2) 8M x 32 |
128MB |
(2) 16M x 32 |
None |
| 136MB | (2) 16M x 32 | (2) 1M x 32 |
| 144MB | (2) 16M x 32 | (2) 2M x 32 |
| 160MB | (2) 16M x 32 | (2) 4M x 32 |
192MB |
(2) 16M x 32 |
(2) 8M x 32 |
256MB |
(2) 16M x 32 |
(2) 16M x 32 |
| Note:
Board supports EDO SIMM memory. Note: Single-sided SIMMs: 4MB, 8MB, 16MB; Double-sided SIMMs: 8MB, 32MB, 64MB. |
||
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
| 128MB | (1) 16M x 64 | None |
| 136MB | (1) 16M x 64 | (1) 1M x 64 |
| 144MB | (1) 16M x 64 | (1) 2M x 64 |
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
| 256MB | (1) 16M x 64 | (1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
