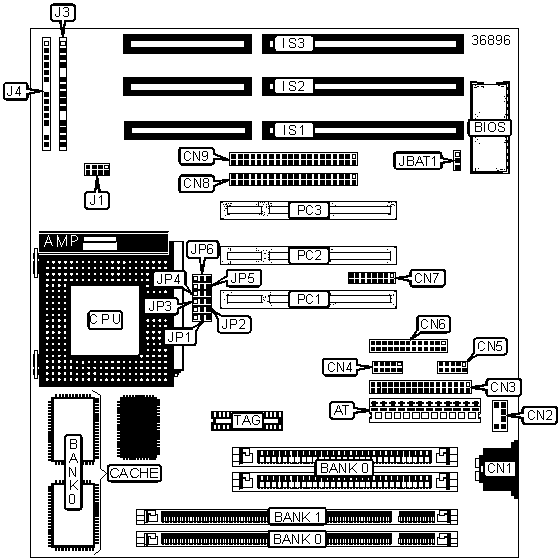

MP-VIP2 (REV. 1.00)
| Device Type | Mainboard |
| Processor | CX 686MX/CX MII/AM K5/AM K6/AM K6-2/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 133/166/200/225/233/266/300/333/366MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 512KB |
| BIOS | Award |
| Dimensions | 220mm x 190mm |
| I/O Options | 16-bit ISA slots (3), 32-bit PCI slots (3), AT power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, keyboard connector, parallel interface, PS/2 mouse interface, serial interfaces (2), USB interface |
CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AT power connector | AT | IDE interface LED | J3/Pins 1 - 4 |
| Keyboard connector | CN1 | IR connector | J3/Pins 6 - 10 |
| PS/2 mouse interface | CN2 | Green PC connector | J3/Pins 14 & 15 |
| Floppy drive interface | CN3 | Speaker | J4/Pins 1 - 4 |
| Serial interface 1 | CN4 | Reset switch | J4/Pins 5 & 6 |
| Serial interface 2 | CN5 | Power LED & keylock | J4/Pins 8 - 12 |
| Parallel interface | CN6 | Turbo LED | J4/Pins 14 & 15 |
| USB interface | CN7 | 16-bit ISA slots | IS1-IS3 |
| IDE interface 1 | CN8 | 32-bit PCI slots | PC1-PC3 |
| IDE interface 2 | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBAT1 | Pins 1 & 2 closed |
| CMOS memory clear | JBAT1 | Pins 2 & 3 closed | |
SIMM CONFIGURATION |
|
Size |
Bank 0 |
8MB |
(2) 1M x 32 |
16MB |
(2) 2M x 32 |
32MB |
(2) 4M x 32 |
64MB |
(2) 8M x 32 |
128MB |
(2) 16M x 32 |
| Note:
Board supports EDO & SDRAM memory. Note: EDO & SDRAM can not be mixed. |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board
supports EDO & SDRAM memory. Note: EDO & SDRAM can not be mixed. |
||
CACHE CONFIGURATION |
| Note: 512KB/1MB cache located onboard. |
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
200MHz |
66MHz |
2.5x |
1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
200MHz |
75MHz |
2.0x |
2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 | 1 & 2 |
| 233MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 233MHz | 75MHz | 2.5x | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (CX MII) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
300MHz |
66MHz |
3.5x |
1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
300MHz |
75MHz |
3.0x |
2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 2 & 3 |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
| 133MHz | 66MHz | 2.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 166MHz | 66MHz | 2.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
| 200MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
| 166MHz | 66MHz | 2.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
| 200MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
233MHz |
66MHz |
3.5x |
1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
266MHz |
66MHz |
4.0x |
1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 300MHz | 66MHz | 4.5x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
| 266MHz | 66MHz | 4.0x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 300MHz | 66MHz | 4.5x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
| 333MHz | 66MHz | 5.0x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 366MHz | 66MHz | 5.5x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
| 200MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 225MHz | 75MHz | 3.0x | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 2 & 3 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
| 266MHz | 66MHz | 4.0x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| 300MHz | 66MHz | 4.5x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
| 133MHz | 66MHz | 2.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 166MHz | 66MHz | 2.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
| 200MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (PENTIUM MMX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
JP1 | JP2 | JP3 | JP4 | JP5 | JP6 | |
| 166MHz | 66MHz | 2.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | |
| » | 200MHz | 66MHz | 3.0x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 | |
Note: Pins designated should be in the closed position. |
|||||||||
VCORE SELECTION |
||||||
Setting |
CPU Type | J1/Pins 1 & 2 | J1/Pins 3 & 4 | J1/Pins 5 & 6 | J1/Pins 7 & 8 | |
| 2.1V | AM K6 266MHz, AM K6-2 | Closed | Open | Open | Open | |
| 2.2V | AM K6 266MHz, AM K6-2 | Open | Closed | Open | Open | |
| » | 2.8V | Pentium MMX | Open | Open | Open | Closed |
| 2.9V | CX 6x86MX, CX M2, AM K6 166/200MHz | Closed | Open | Open | Closed | |
| 3.2V | AM K6 233MHz | Open | Open | Closed | Closed | |
| 3.3V | IDT C6 | Closed | Open | Closed | Closed | |
| 3.52V | AM K5, Pentium | Closed | Closed | Closed | Closed | |
Note: AM K6 266MHz & AM K6-2 is shown with two possible settings, depending on the processor. |
||||||
