FAMOUS TECHNOLOGY CO., LTD.
MP-5VIP3 (REV. 1.00)
| Device Type | Mainboard |
| Processor | CX 6x86/CX 6x86L/CX 6x86MX/AM K5/AM K6/Pentium/Pentium MMX |
| Processor Speed | 75/90/100/120/133/150/166/180/200/233/266/300MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 512KB/1MB |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, IDE interfaces (2), IR connector, parallel port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on- LAN connector |

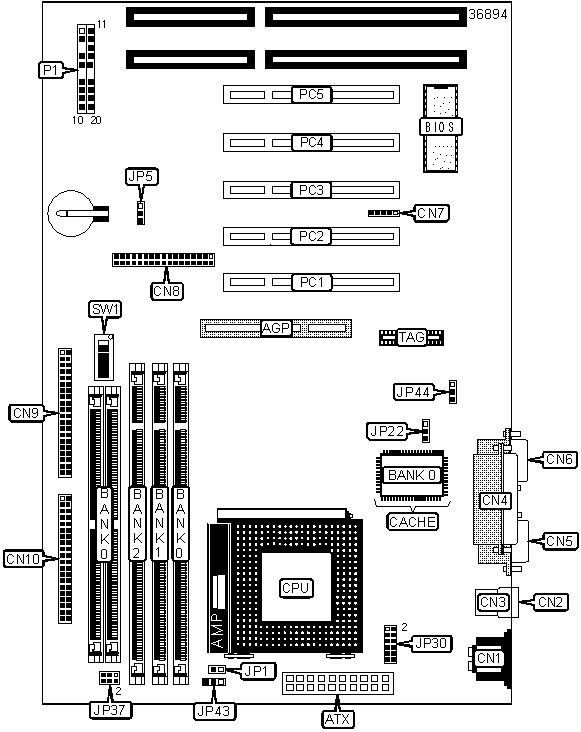

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 2 | CN10 |
| ATX power connector | ATX | CPU fan power | JP43 |
| PS/2 mouse port | CN1 | Wake-on-LAN connector | JP44 |
| USB port 1 | CN2 | Reset switch | P1/Pins 1 & 2 |
| USB port 2 | CN3 | Power switch | P1/Pins 4 & 5 |
| Parallel port | CN4 | Turbo LED | P1/Pins 7 & 8 |
| Serial port 1 | CN5 | IDE interface LED | P1/Pins 9 & 10 |
| Serial port 2 | CN6 | Power LED & keylock | P1/Pins 11 - 15 |
| IR connector | CN7 | Speaker | P1/Pins 17 - 20 |
| Floppy drive interface | CN8 | 32-bit PCI slots | PC1 - PC5 |
| IDE interface 1 | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | CPU voltage set automatically | JP1 | Closed |
| CPU voltage set manually | JP1 | Open | |
» |
CMOS memory normal operation | JP5 | Pins 1 & 2 closed |
| CMOS memory clear | JP5 | Pins 2 & 3 closed | |
| » | DIMM voltage is 3.3V | JP37 | Pins 1 & 3, 2 & 4 closed |
| DIMM voltage is 5V | JP37 | Pins 3 & 5, 4 & 6 closed | |
SIMM CONFIGURATION |
|
Size |
Bank 0 |
8MB |
(2) 1M x 32 |
16MB |
(2) 2M x 32 |
32MB |
(2) 4M x 32 |
64MB |
(2) 8M x 32 |
| Note:
SIMM Bank supports EDO memory. Note: SIMM Bank 0 and DIMM Bank 0 can not be used at the same time. |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO &
SDRAM memory. Note: EDO & SDRAM can not be mixed. Note: SIMM Bank 0 and DIMM Bank 0 can not be used at the same time. |
|||
CACHE CONFIGURATION |
||
Size |
Cache RAM |
TAG RAM |
| 512KB | (1) 64K x 64 | (1) 16K x 8 |
| 1MB | (2) 64K x 64 | Not installed |
CPU BURST MODE SELECTION |
|||
Burst Mode |
CPU | JP22 |
|
| » | Interleave CPU Burst mode | AM K5, AM K6 & Pentium | Pins 1 & 2 closed |
| Linear CPU Burst mode | CX 6x86, CX 6x86L CX, 6x86MX | Pins 2 & 3 closed | |
CPU SPEED SELECTION (CX 6X86) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 150MHz | 60MHz | 2.0x | On | Off | Off | On | Off | Off |
| 166MHz | 66MHz | 2.0x | On | Off | Off | Off | Off | Off |
| 200MHz | 75MHz | 2.0x | On | Off | Off | Off | On | Off |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (CX 6X86L) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 150MHz | 60MHz | 2.0x | On | Off | Off | On | Off | Off |
| 166MHz | 66MHz | 2.0x | On | Off | Off | Off | Off | Off |
| 200MHz | 75MHz | 2.0x | On | Off | Off | Off | On | Off |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 166MHz | 60MHz | 2.5x | On | On | Off | On | Off | Off |
200MHz |
66MHz |
2.5x |
On | On | Off | Off | Off | Off |
| 233MHz | 66MHz | 3.0x | Off | On | Off | Off | Off | Off |
| 233MHz | 75MHz | 2.5x | On | On | Off | Off | On | Off |
| 266MHz | 66MHz | 3.5x | Off | Off | Off | Off | Off | Off |
| 266MHz | 75MHz | 3.0x | Off | On | Off | Off | On | Off |
Note: Pins designated should be in the closed position. |
||||||||
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 75MHz | 50MHz | 1.5x | Off | Off | Off | On | On | On |
| 90MHz | 60MHz | 1.5x | Off | Off | Off | On | Off | Off |
| 100MHz | 66MHz | 1.5x | Off | Off | Off | Off | Off | Off |
| 120MHz | 60MHz | 1.5x | Off | Off | Off | On | Off | Off |
| 133MHz | 66MHz | 1.5x | Off | Off | Off | Off | Off | Off |
| 166MHz | 66MHz | 2.5x | On | On | Off | Off | Off | Off |
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 166MHz | 66MHz | 2.5x | On | On | Off | Off | Off | Off |
| 180MHz | 60MHz | 3.0x | Off | On | Off | On | Off | Off |
| 200MHz | 66MHz | 3.0x | Off | On | Off | Off | Off | Off |
233MHz |
66MHz |
3.5x |
Off | Off | Off | Off | Off | Off |
266MHz |
66MHz |
4.0x |
On | Off | On | Off | Off | Off |
300MHz |
66MHz |
4.5x |
On | On | On | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | |
| 75MHz | 50MHz | 1.5x | Off | Off | Off | On | On | On | |
| 90MHz | 60MHz | 1.5x | Off | Off | Off | On | Off | Off | |
| 100MHz | 66MHz | 1.5x | Off | Off | Off | Off | Off | Off | |
| 120MHz | 60MHz | 2.0x | On | Off | Off | On | Off | Off | |
| » | 133MHz | 66MHz | 2.0x | On | Off | Off | Off | Off | Off |
| 150MHz | 60MHz | 2.5x | On | On | Off | On | Off | Off | |
| 166MHz | 66MHz | 2.5x | On | On | Off | Off | Off | Off | |
| 180MHz | 60MHz | 3.0x | Off | On | Off | On | Off | Off | |
| 200MHz | 66MHz | 3.0x | Off | On | Off | Off | Off | Off | |
CPU SPEED SELECTION (PENTIUM MMX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 166MHz | 66MHz | 2.5x | On | On | Off | Off | Off | Off |
| 180MHz | 60MHz | 3.0x | Off | On | Off | Off | Off | Off |
| 200MHz | 66MHz | 3.0x | Off | On | Off | Off | Off | Off |
| 233MHz | 66MHz | 3.5x | Off | Off | Off | Off | Off | Off |
VCORE SELECTION |
|||
Voltage |
CPU Type | JP30 | |
| 2.2V | AM K6 266/300MHz | Pins 5 & 6 closed | |
| » | 2.8V | CX 6x86L, Pentium MMX | Pins 1 & 2, 11 & 12 closed |
| 2.9V | CX 6x86MX, AM K6 166/180/200MHz | Pins 1 & 2, 5 & 6 closed | |
| 3.2V | AM K6 233MHz | Pins 1 & 2, 7 & 8 closed | |
| » | 3.52V | CX 6x86, AM K5, Pentium | Pins 1 & 2, 11 & 12 closed |
