FAMOUS TECHNOLOGY CO., LTD.
MP-VIP4-X (REV. 1.00)
| Device Type | Mainboard |
| Processor | CX 6x86L/CX 6x86MX/CX MII/AM K5/AM K6/AM K6-2/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 133/166/200/225/233/250/266/300/333/350MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 512KB/1MB |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, IDE interfaces (2), IR connector, parallel port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on LAN connector |

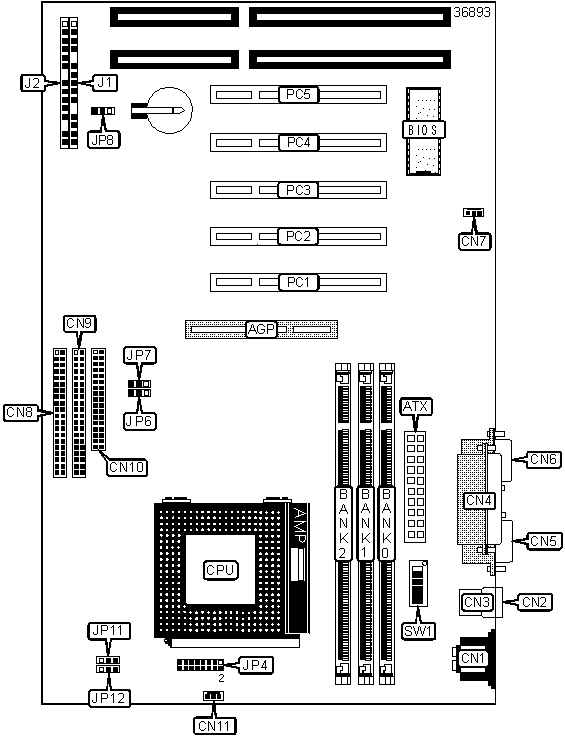

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Floppy drive interface | CN10 |
| ATX power connector | ATX | CPU fan power | CN11 |
| PS/2 mouse port | CN1 | IDE interface LED | J1/Pins 1 - 4 |
| USB port 1 | CN2 | IR connector | J1/Pins 6 - 10 |
| USB port 2 | CN3 | Power switch | J1/Pins 12 & 13 |
| Parallel port | CN4 | Speaker | J2/Pins 1 - 4 |
| Serial port 1 | CN5 | Reset switch | J2/Pins 5 & 6 |
| Serial port 2 | CN6 | Power LED & keylock | J2/Pins 8 - 12 |
| Wake-on LAN connector | CN7 | Turbo LED |
J2/Pins 14 & 15 |
| IDE interface 1 | CN8 | 32-bit PCI slots | PC1-PC5 |
| IDE interface 2 | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP8 | Pins 1 & 2 closed |
| CMOS memory clear | JP8 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB/1MB cache is located onboard. |
CHIPSET CLOCK SELECTION |
|||
Setting |
JP6 |
JP7 |
|
| » | 66/75 MHz | Pins 2 & 3 closed | Pins 2 & 3 closed |
| 83 MHz | Pins 1 & 2 closed | Pins 1 & 2 closed | |
| 95/100/112/124/133 MHz | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| Note: Setting is dependent on CPU clock | |||
CPU SINGLE/DOUBLE VOLTAGE SELECTION |
||||
Setting |
CPU Type |
JP11 |
JP12 |
|
| Single Voltage | AM K5, Pentium, IDT | Pins 2 & 3 closed | Pins 2 & 3 closed | |
| » | Dual Voltage | CX M2, AM K6, AM K6-2, Pentium MMX | Pins 1 & 2 closed | Pins 1 & 2 closed |
CPU SPEED SELECTION (CX MII) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 300MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
| 300MHz | 75MHz | 3.0x | Off | Off | On | Off | On | Off |
| 333MHz | 66MHz | 4.0x | Off | On | On | On | Off | On |
| 333MHz | 75MHz | 3.5x | Off | Off | On | Off | Off | Off |
| 333MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
| 350MHz | 83MHz | 3.5x | Off | On | Off | Off | Off | Off |
| 350MHz | 100MHz | 3.0x | Off | Off | Off | Off | On | Off |
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 133MHz | 66MHz | 2.0x | Off | On | On | On | Off | Off |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
233MHz |
66MHz |
3.5x |
Off | On | On | Off | Off | Off |
266MHz |
66MHz |
4.0x |
Off | On | On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | On | On | On | On |
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 250MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
266MHz |
66MHz |
4.0x |
Off | On | On | On | Off | On |
300MHz |
100MHz |
3.0x |
Off | Off | Off | Off | On | Off |
| 333MHz | 95MHz | 3.5x | On | Off | Off | Off | Off | Off |
| 350MHz | 100MHz | 3.5x | Off | Off | Off | Off | Off | Off |
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 225MHz | 75MHz | 3.0x | Off | Off | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 133MHz | 66MHz | 2.0x | Off | On | On | On | Off | Off |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
|||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off | |
| » | 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off | |
VCORE SELECTION |
|||
Voltage |
CPU Type | JP4 | |
| 2.2V | AM K6/K6-2 266-350MHz | Pins 11 & 12 closed | |
| » | 2.8V | Pentium MMX | Pins 9 & 10 closed |
| 2.9V | CX M2, AM K6 166/200MHz | Pins 7 & 8 closed | |
| 3.2V | AM K6 233MHz | Pins 5 & 6 closed | |
| 3.3V | IDT C6 | Pins 3 & 4 closed | |
| 3.52V | AM K5, Pentium | Pins 1 & 2 closed | |
Note: All pins are open unless designated as closed. |
|||
