FAMOUS TECHNOLOGY CO., LTD.
MP-VIP4-A2 (REV. 4.00)
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 686MX/CX MII/IBM 6X86/IBM 6X86L/IBM 6X86MX/AM K5/AM K6/AM K6-2/Pentium/Pentium MMX |
| Processor Speed | 75/100/120/133/150/166/200/233/300/350MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 512KB/1MB |
| BIOS | Award |
| Dimensions | 305mm x 185mm |
| I/O Options | 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connectors (2), parallel port, PS/2 mouse port, serial ports (2), USB ports (2) |

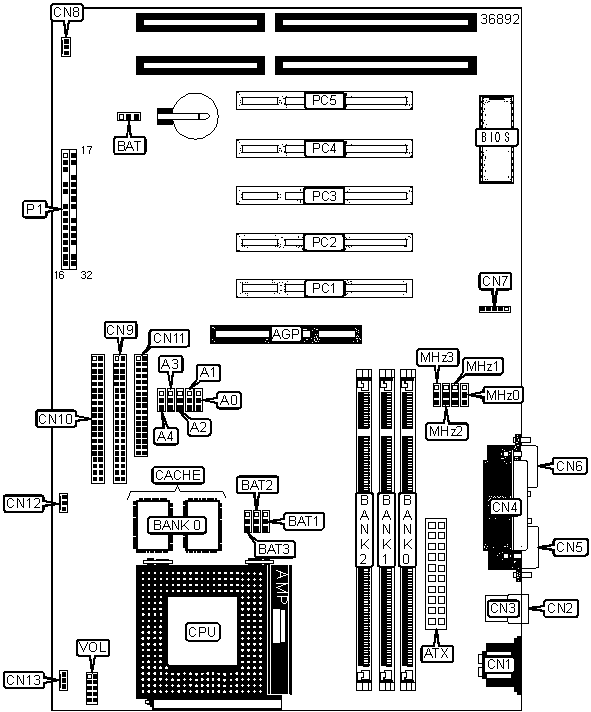

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | CPU fan power | CN12 |
| ATX power connector | ATX | System fan power | CN13 |
| PS/2 mouse port | CN1 | Turbo switch | P1/Pins 1 - 3 |
| USB port 1 | CN2 | Reset switch | P1/Pins 5 & 6 |
| USB port 2 | CN3 | IDE interface LED | P1/Pins 8 & 9 |
| Parallel port | CN4 | IR connector | P1/Pins 10 - 14 |
| Serial port 1 | CN5 | Power switch | P1/Pins 15 & 16 |
| Serial port 2 | CN6 | Turbo LED | P1/Pins 17 & 18 |
| IR connector | CN7 | Power LED & keylock | P1/Pins 20 - 24 |
| Power supply fan power | CN8 | Speaker | P1/Pins 26 - 29 |
| IDE interface 1 | CN9 | Green PC switch | PI/Pins 31 & 32 |
| IDE interface 2 | CN10 | 32-bit PCI slots | PC1-PC5 |
| Floppy drive interface | CN11 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT | Pins 1 & 2 closed |
| CMOS memory clear | BAT | Pins 2 & 3 closed | |
| » | Factory configured - do not alter | MHz0 | Pins 2 & 3 closed |
| » | Factory configured - do not alter | A0 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | A3 | Pins 2 & 3 closed |
| » | Factory configured - do not alter | A4 | Pins 1 & 2 closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
PCI CLOCK SELECTION |
|||
CPU Clock |
A1 |
A2 |
|
| » | 60MHz - 75MHz | Pins 2 & 3 closed | Pins 2 & 3 closed |
| 75MHz - 83MHz | Pins 1 & 2 closed | Pins 1 & 2 closed | |
| 90MHz - 100MHz | Pins 2 & 3 closed | Pins 1 & 2 closed | |
CPU EXTERNAL CLOCK SELECTION |
||||
Clock Speed |
MHz1 |
MHz2 |
MHz3 | |
| 60MHz | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 | |
| » | 66MHz | Pins 2 & 3 | Pins 2 & 3 | Pins 1 & 2 |
| 75MHz | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 | |
| 83MHz | Pins 2 & 3 | Pins 1 & 2 | Pins 1 & 2 | |
| 95MHz | Pins 1 & 2 | Pins 1 & 2 | Pins 2 & 3 | |
| 100MHz | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 | |
| Note: Pins designated should be in the closed position. | ||||
CPU MULTIPLIER SELECTION |
||||
Multiplier |
BAT1 |
BAT2 |
BAT3 | |
| 1.5x | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 | |
| 2.0x | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 | |
| 2.5x | Pins 2 & 3 | Pins 2 & 3 | Pins 1 & 2 | |
| » | 3.0x | Pins 1 & 2 | Pins 2 & 3 | Pins 1 & 2 |
| 4.0x | Pins 2 & 3 | Pins 1 & 2 | Pins 2 & 3 | |
| 4.5x | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 | |
| 5.0x | Pins 1 & 2 | Pins 2 & 3 | Pins 2 & 3 | |
| 5.5x | Pins 1 & 2 | Pins 1 & 2 | Pins 2 & 3 | |
| Note: Pins designated should be in the closed position. | ||||
VCORE SELECTION |
|||||||
Voltage |
CPU Type | VOL/Pins 1 & 2 | VOL/Pins 3 & 4 | VOL/Pins 5 & 6 | VOL/Pins 7 & 8 | VOL/Pins 9 & 10 | |
| 2.0V | AM K6 266MHz | Open | Closed | Closed | Closed | Closed | |
| 2.1V | AM K6 266-333MHz | Closed | Open | Open | Open | Open | |
| 2.2V | AM K6/K6-2 266-333 | Open | Closed | Open | Open | Open | |
| 2.7V | CX 6x86 MX | Closed | Closed | Closed | Open | Open | |
| » | 2.8V | CX 6x86L, IBM 6x86L, Pentium MMX | Open | Open | Open | Closed | Open |
| 2.9V | CX 6x86MX, CX M2, IBM 6x86MX, AM K6 166/200MHz | Closed | Open | Open | Closed | Open | |
| 3.2V | AM K6 233MHz | Open | Open | Closed | Closed | Open | |
| 3.3V | Pentium (P54C) | Closed | Open | Closed | Closed | Open | |
| 3.4V | Pentium (P54C) | Open | Closed | Closed | Closed | Open | |
| 3.5V | CX 6x86, IBM 6x86, AM K5 | Closed | Closed | Closed | Closed | Open | |
