FAMOUS TECHNOLOGY CO., LTD.

MP-VIP-4A (REV. 1.20)
Device Type Mainboard
Processor CX 6X86/CX 6X86L/CX 686MX/CX M2/IBM 6X86/IBM 6X86L/IBM 6X86MX/
AM K5/AM K6/AM K6-2/Pentium/Pentium MMX
Processor Speed 100/120/133/166/200/233/300MHz
Chip Set VIA MVP3
Maximum Onboard Memory 384MB (EDO & SDRAM supported)
Cache 512KB/1MB
BIOS Award
Dimensions 305mm x 200mm
I/O Options 32-bit PCI slots (5), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connectors (2), parallel port, PS/2 mouse interface, PS/2 mouse port, serial ports (2), USB ports (2)

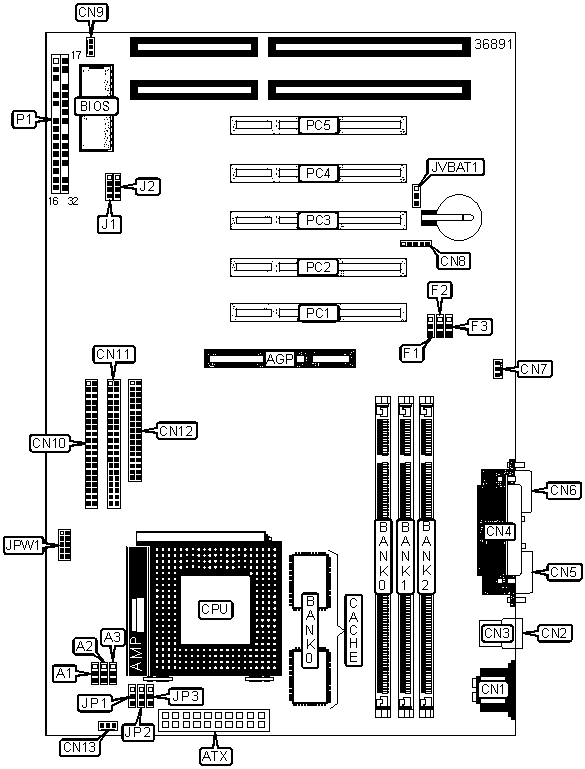

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot AGP CPU fan power CN13
ATX power connector ATX Keyboard interface J1
PS/2 mouse port CN1 PS/2 mouse interface J2
USB port 1 CN2 Turbo switch P1/Pins 1 - 3
USB port 2 CN3 Reset switch P1/Pins 5 & 6
Parallel port CN4 IDE interface LED P1/Pins 8 & 9
Serial port 1 CN5 IR connector P1/Pins 10 - 14
Serial port 2 CN6 Power switch P1/Pins 15 & 16
Power supply fan power CN7 Turbo LED P1/Pins 17 & 18
IR connector CN8 Power LED & keylock P1/Pins 20 - 24
System fan power CN9 Speaker P1/Pins 26 - 29
IDE interface 1 CN10 Green PC switch PI/Pins 31 & 32
IDE interface 2 CN11 32-bit PCI slots PC1-PC5
Floppy drive interface CN12


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation JVBAT1 Pins 1 & 2 closed
  CMOS memory clear JVBAT1 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64
Note: Board supports EDO & SDRAM memory.


PCI CLOCK SELECTION

CPU Clock

A1

A2

 A3
» 60MHz - 75MHz Pins 2 & 3 closed Pins 2 & 3 closed Pins 2 & 3 closed
  83MHz - 112MHz Pins 2 & 3 closed Pins 1 & 2 closed Pins 1 & 2 closed


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2
200MHz 75MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 2 & 3 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 60MHz 2.5x 1 & 2 2 & 3 2 & 3 2 & 3 1 & 2 1 & 2
166MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2

200MHz

66MHz

2.5x

 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2

200MHz

75MHz

2.0x

 1 & 2 2 & 3 1 & 2 1 & 2 2 & 3 1 & 2
233MHz 75MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 2 & 3 1 & 2
233MHz 83MHz 2.0x 1 & 2 2 & 3 1 & 2 2 & 3 2 & 3 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CX M2)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
300MHz 66MHz 4.5x 2 & 3 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (IBM 6X86L)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2
200MHz 75MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 2 & 3 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 60MHz 2.5x 1 & 2 2 & 3 2 & 3 2 & 3 1 & 2 1 & 2
166MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2

200MHz

66MHz

2.5x

 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2

200MHz

75MHz

2.0x

 1 & 2 2 & 3 1 & 2 1 & 2 2 & 3 1 & 2
233MHz 75MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 2 & 3 1 & 2
233MHz 83MHz 2.0x 1 & 2 2 & 3 1 & 2 2 & 3 2 & 3 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
100MHz 66MHz 1.5x 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2
133MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2
166MHz 66MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 66MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2
200MHz 66MHz 3.0x 1 & 2 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2

233MHz

66MHz

3.5x

 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
300MHz 100MHz 3.0x 1 & 2 1 & 2 2 & 3 1 & 2 1 & 2 2 & 3

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
100MHz 66MHz 1.5x 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2
120MHz 60MHz 2.0x 1 & 2 2 & 3 1 & 2 2 & 3 1 & 2 1 & 2
133MHz 66MHz 2.0x 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2 1 & 2
166MHz 66MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2
200MHz 66MHz 3.0x 1 & 2 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

 JP1 JP2 JP3 F1 F2 F3
166MHz 66MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2 1 & 2 1 & 2
200MHz 66MHz 3.0x 1 & 2 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2
233MHz 66MHz 3.5x 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2 1 & 2

Note: Pins designated should be in the closed position.


VCORE SELECTION

Setting

 CPU Type JPW1/Pins 1 & 2 JPW1/Pins 3 & 4 JPW1/Pins 5 & 6 JPW1/Pins 7 & 8 JPW1/Pins 9 & 10
2.0V AM K6-266MHz Open Closed Closed Closed Closed
2.1V AM K6-3D (300MHz) Closed Open Open Open Open
2.8V CX 6x86L, IBM 6x86L, Pentium MMX Open Open Open Closed Open
2.9V CX 6x86MX, IBM 6x86MX, AM K6-166/200MHz Closed Open Open Closed Open
3.2V AM K6-233MHz Open Open Closed Closed Open
3.3V Pentium (P54C) Closed Open Closed Closed Open
3.4V Pentium (P54C) Open Closed Closed Closed Open
3.5V CX 6x86, IBM 6x86, AM K5 Closed Closed Closed Closed Open
