FAMOUS TECHNOLOGY CO., LTD.
MP-VIP4 (REV. 2.00)
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 686MX/CX
M2/IBM 6X86/IBM 6X86L/IBM 6X86MX/ AM K5/AM K6/AM K6-2/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 133/166/200/233/240/250/266/300/333/350MHz |
| Chip Set | VIA Apollo MVP3 |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 512KB/1MB |
| BIOS | Award |
| Dimensions | 240mm x 220mm |
| I/O Options | 32-bit PCI slots (3), AGP slot, ATX power connector, floppy drive interface, IDE interfaces (2), IR connector, parallel interface, PS/2 mouse interface, serial interfaces (2), USB interface |

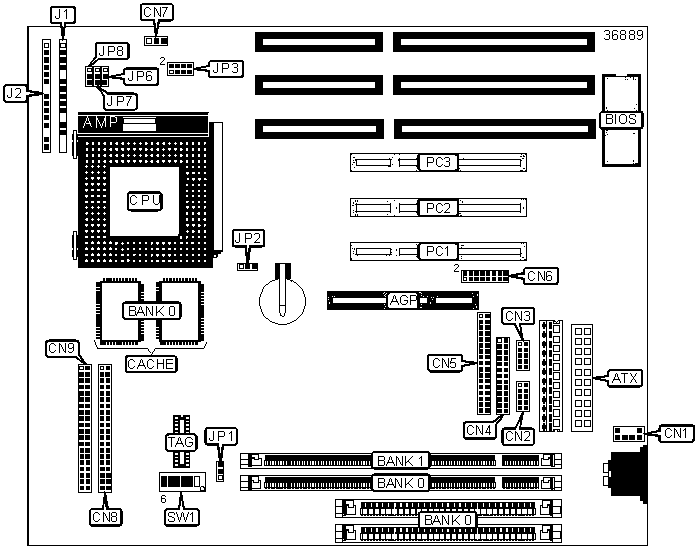

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 2 | CN9 |
| ATX power connector | ATX | IDE interface LED | J1/Pins 1 - 4 |
| PS/2 mouse interface | CN1 | IR connector | J1/Pins 6 - 10 |
| Serial interface 2 | CN2 | Power switch | J1/Pins 12 & 13 |
| Serial interface 1 | CN3 | Speaker | J2/Pins 1 - 4 |
| Parallel interface | CN4 | Reset switch | J2/Pins 5 & 6 |
| Floppy drive interface | CN5 | Power LED & keylock | J2/Pins 8 - 12 |
| USB interface | CN6 | Turbo LED | J2/Pins 14 & 15 |
| CPU fan power | CN7 | 32-bit PCI slots | PC1-PC3 |
| IDE interface 1 | CN8 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP2 | Pins 1 & 2 closed |
| CMOS memory clear | JP2 | Pins 2 & 3 closed | |
SIMM CONFIGURATION |
|
Size |
Bank 0 |
32MB |
(2) 4M x 36 |
64MB |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
256MB |
(2) 32M x 36 |
| Note:
Board supports EDO & SDRAM memory. Note: EDO & SDRAM can not be mixed. |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
32MB |
(1) 4M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board
supports EDO & SDRAM memory. Note: EDO & SDRAM can not be mixed. |
||
SDRAM CLOCK SELECTION |
|||
Setting |
JP1 |
JP6 |
|
| » | SDRAM clock is synchronous with the CPU clock | Pins 1 & 2 closed | Pins 2 & 3 closed |
| SDRAM clock is synchronous with the AGP clock | Pins 2 & 3 closed | Pins 1 & 2 closed | |
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
75MHz |
2.0x |
Off | Off | On | On | Off | Off |
| 233MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 233MHz | 75MHz | 2.5x | Off | Off | On | On | On | Off |
| 266MHz | 75MHz | 3.0x | Off | Off | On | Off | On | Off |
| 266MHz | 83MHz | 2.5x | Off | On | Off | On | On | Off |
CPU SPEED SELECTION (CX 6X86MX, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
200MHz |
66MHz |
2.5x |
Pins 2 & 3 | Pins 2 & 3 |
200MHz |
75MHz |
2.0x |
Pins 2 & 3 | Pins 2 & 3 |
| 233MHz | 66MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 233MHz | 75MHz | 2.5x | Pins 2 & 3 | Pins 2 & 3 |
| 266MHz | 75MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 266MHz | 83MHz | 2.5x | Pins 1 & 2 | Pins 1 & 2 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (CX M2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 300MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
| 300MHz | 75MHz | 3.0x | Off | Off | On | Off | On | Off |
| 333MHz | 66MHz | 4.0x | Off | On | On | On | Off | On |
| 333MHz | 75MHz | 3.5x | Off | Off | On | Off | Off | Off |
| 333MHz | 83MHz | 3.0x | Off | On | Off | Off | On | Off |
| 333MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
| 350MHz | 83MHz | 3.5x | Off | On | Off | Off | Off | Off |
| 350MHz | 100MHz | 3.0x | Off | Off | Off | Off | On | Off |
CPU SPEED SELECTION (CX M2, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
| 300MHz | 66MHz | 3.5x | Pins 2 & 3 | Pins 2 & 3 |
| 300MHz | 75MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 333MHz | 66MHz | 4.0x | Pins 2 & 3 | Pins 2 & 3 |
| 333MHz | 75MHz | 3.5x | Pins 2 & 3 | Pins 2 & 3 |
| 333MHz | 83MHz | 3.0x | Pins 1 & 2 | Pins 1 & 2 |
| 333MHz | 100MHz | 2.5x | Pins 1 & 2 | Pins 2 & 3 |
| 350MHz | 83MHz | 3.5x | Pins 1 & 2 | Pins 1 & 2 |
| 350MHz | 100MHz | 3.0x | Pins 1 & 2 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (IBM 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
75MHz |
2.0x |
Off | Off | On | On | Off | Off |
| 233MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 233MHz | 75MHz | 2.5x | Off | Off | On | On | On | Off |
| 266MHz | 75MHz | 3.0x | Off | Off | On | Off | On | Off |
| 266MHz | 83MHz | 2.5x | Off | On | Off | On | On | Off |
CPU SPEED SELECTION (IBM 6X86MX, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
200MHz |
66MHz |
2.5x |
Pins 2 & 3 | Pins 2 & 3 |
200MHz |
75MHz |
2.0x |
Pins 2 & 3 | Pins 2 & 3 |
| 233MHz | 66MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 233MHz | 75MHz | 2.5x | Pins 2 & 3 | Pins 2 & 3 |
| 266MHz | 75MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 266MHz | 83MHz | 2.5x | Pins 1 & 2 | Pins 1 & 2 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 133MHz | 66MHz | 2.0x | Off | On | On | On | Off | Off |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
CPU SPEED SELECTION (AM K5, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
133MHz |
66MHz |
2.0x |
Pins 2 & 3 | Pins 2 & 3 |
166MHz |
66MHz |
2.5x |
Pins 2 & 3 | Pins 2 & 3 |
200MHz |
66MHz |
3.0x |
Pins 2 & 3 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
233MHz |
66MHz |
3.5x |
Off | On | On | Off | Off | Off |
266MHz |
66MHz |
4.0x |
Off | On | On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | On | On | On | On |
CPU SPEED SELECTION (AM K6, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
| 166MHz | 66MHz | 2.5x | Pins 2 & 3 | Pins 2 & 3 |
| 200MHz | 66MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
233MHz |
66MHz |
3.5x |
Pins 2 & 3 | Pins 2 & 3 |
266MHz |
66MHz |
4.0x |
Pins 2 & 3 | Pins 2 & 3 |
300MHz |
66MHz |
4.5x |
Pins 2 & 3 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 250MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
266MHz |
66MHz |
4.0x |
Off | On | On | On | Off | On |
300MHz |
100MHz |
3.0x |
Off | Off | Off | Off | On | Off |
| 333MHz | 95MHz | 3.5x | On | Off | Off | Off | Off | Off |
| 350MHz | 100MHz | 3.5x | Off | Off | Off | Off | Off | Off |
CPU SPEED SELECTION (AM K6-2, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
| 250MHz | 100MHz | 2.5x | Pins 1 & 2 | Pins 2 & 3 |
266MHz |
66MHz |
4.0x |
Pins 2 & 3 | Pins 2 & 3 |
300MHz |
100MHz |
3.0x |
Pins 1 & 2 | Pins 2 & 3 |
| 333MHz | 95MHz | 3.5x | Pins 1 & 2 | Pins 2 & 3 |
| 350MHz | 100MHz | 3.5x | Pins 1 & 2 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
| 240MHz | 66MHz | 4.0x | Off | On | On | On | Off | On |
CPU SPEED SELECTION (IDT C6, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
| 200MHz | 66MHz | 3.0x | Pins 2 & 3 | Pins 2 & 3 |
| 233MHz | 66MHz | 3.5x | Pins 2 & 3 | Pins 2 & 3 |
| 240MHz | 66MHz | 4.0x | Pins 2 & 3 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 133MHz | 66MHz | 2.0x | Off | On | On | On | Off | Off |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
133MHz |
66MHz |
2.0x |
Pins 2 & 3 | Pins 2 & 3 |
166MHz |
66MHz |
2.5x |
Pins 2 & 3 | Pins 2 & 3 |
200MHz |
66MHz |
3.0x |
Pins 2 & 3 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
CPU SPEED SELECTION (PENTIUM MMX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3.0x | Off | On | On | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM MMX, CON'T) |
||||
CPU speed |
Clock speed |
Multiplier |
JP7 | JP8 |
166MHz |
66MHz |
2.5x |
Pins 2 & 3 | Pins 2 & 3 |
200MHz |
66MHz |
3.0x |
Pins 2 & 3 | Pins 2 & 3 |
233MHz |
66MHz |
3.5x |
Pins 2 & 3 | Pins 2 & 3 |
Note: Pins designated should be in the closed position. |
||||
VCORE SELECTION |
|||||
Setting |
CPU Type | JP3/Pins 1 & 2 | JP3/Pins 3 & 4 | JP3/ Pins 5 & 6 | JP3/Pins 7 & 8 |
| 2.2V | AM K6-266/300MHz, K6-2 | Open | Closed | Open | Open |
| 2.8V | CX 6x86L, IBM 6x86L, Pentium MMX | Open | Open | Open | Closed |
| 2.9V | CX 6x86MX, CX M2, IBM 6x86MX, AM K6-166/200MHz | Closed | Open | Open | Closed |
| 3.2V | AM K6-233MHz | Open | Open | Closed | Closed |
| 3.3V | IDT C6 | Closed | Open | Closed | Closed |
| 3.5V | CX 6x86, IBM 6x86, AM K5, Pentium | Closed | Closed | Closed | Closed |
