FAMOUS TECHNOLOGY CO., LTD.
MP-6ZX (REV. 1.00)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300A/333/366/400MHz |
| Chip Set | Intel 440ZX |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Cache | 128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 240mm x 220mm |
| I/O Options | 32-bit PCI slots (4), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel interface, PS/2 mouse interface, SB-Link connector, serial interfaces (2), USB interface, Wake-on-LAN connector |

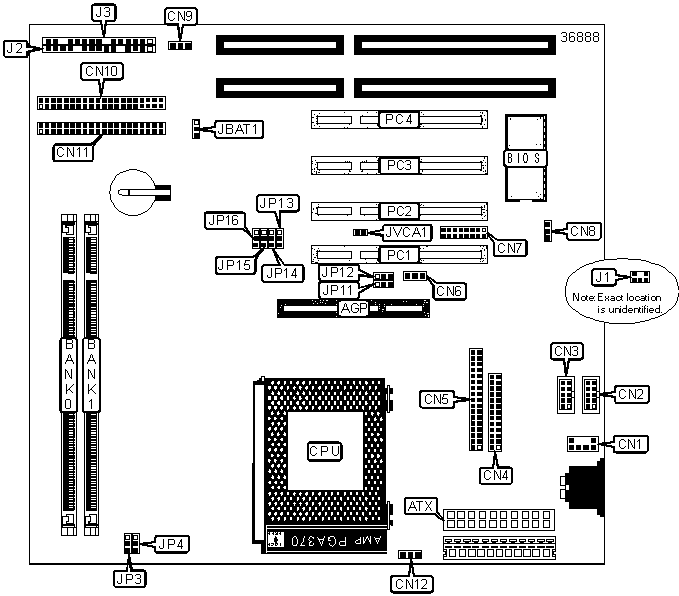

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 2 | CN11 |
| ATX power connector | ATX | CPU fan power | CN12 |
| PS/2 mouse interface | CN1 | SB-Link connector | J1 |
| Serial interface 1 | CN2 | IDE interface LED | J2/Pins 1 - 4 |
| Serial interface 2 | CN3 | IR connector | J2/Pins 6 - 10 |
| Parallel interface | CN4 | Power switch | J2/Pins 12 & 13 |
| Floppy drive interface | CN5 | Green PC connector | J2/Pins 14 & 15 |
| System fan power | CN6 | Speaker | J3/Pins 1 - 4 |
| USB interface | CN7 | Reset switch | J3/Pins 5 & 6 |
| Wake-on-LAN connector | CN8 | Power LED & keylock | J3/Pins 8 - 12 |
| Power fan | CN9 | Turbo LED | J3/Pins 14 & 15 |
| IDE interface 1 | CN10 | 32-bit PCI slots | PC1-PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBAT1 | Pins 2 & 3 closed |
| CMOS memory clear | JBAT1 | Pins 1 & 2 closed | |
| » | VGA card normal | JVGA1 | Closed |
| VGA card special | JVGA1 | Open | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on Celeron 300A and greater CPUs. |
USB SELECTION |
|||
Setting |
JP11 |
JP12 |
|
| » | USB ports are redirected to AGP | Pins 1 & 2 closed | Pins 1 & 2 closed |
| USB ports are redirected to USB connector | Pins 2 & 3 closed | Pins 2 & 3 closed | |
CPU SPEED SELECTION |
||||||||
CPU speed |
Clock speed |
Multiplier |
JP3 | JP4 | JP13 | JP14 | JP15 | JP16 |
| 300MHz | 66MHz | 4.5x | 2 & 3 | 1 & 2 | Open | 2 & 3 | Open | 2 & 3 |
| 333MHz | 66MHz | 5.0x | 2 & 3 | 1 & 2 | Open | Open | 2 & 3 | 2 & 3 |
| 366MHz | 66MHz | 5.5x | 2 & 3 | 1 & 2 | Open | Open | Open | 2 & 3 |
| 400MHz | 66MHz | 6.0x | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 | Open |
| Auto-detect | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | ||
Note: Designated pins should be in the closed position. |
||||||||
