GIGA-BYTE TECHNOLOGY CO., LTD.

GA-6RNC (REV. 1.0)

Card Type Mainboard riser card (NLX form factor)
I/O Options 32-bit PCI slots (2), audio in CD-ROMs (2), floppy drive interface, green PC connector, IDE interface, IR connector, microphone-in connector, SLIM CD-ROM interface, USB ports (2), Wake-on LAN connector, Wake-on modem connector
Drives supported Two IDE drives and one SLIM CD-ROM
Data Bus Proprietary

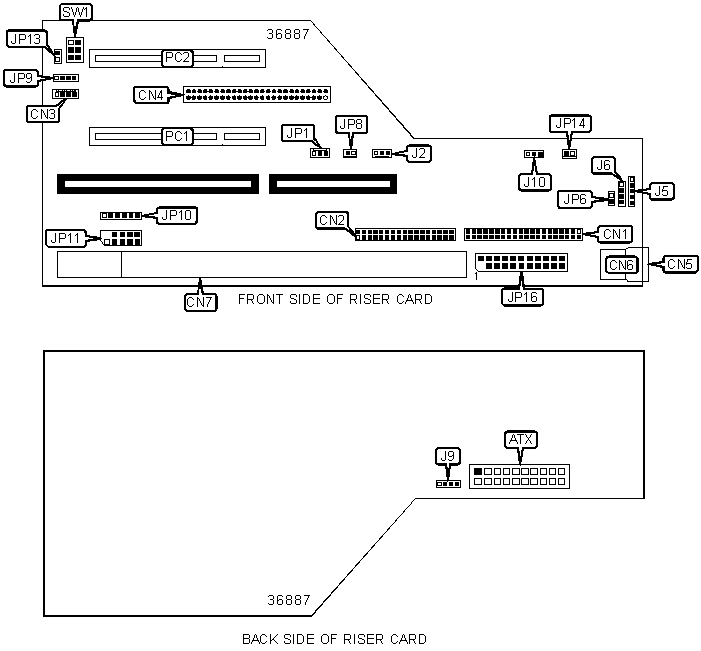

CONNECTIONS

Function

Label

Function

Label

ATX power connector ATX Wake-on-LAN connector JP1
IDE interface 1 CN1 LAN LED JP6
Floppy drive interface CN2 Wake-on-modem connector JP8
Audio in - CD-ROM CN3 Audio in - CD-ROM JP9
SLIM CD-ROM interface CN4 Onboard sound function connector 1 JP10
USB port 1 CN5 Onboard sound function connector 2 JP11
USB port 2 CN6 Chassis intrusion connector JP13
Mainboard slot CN7 Microphone in JP14
System fan power J2

GA-6NL1 daughterboard connector

 JP16/Pins 1 - 10
IR connector J5 GA-6NL2 daughterboard connector JP16/Pins 11 - 16
PC speaker J6 GA-6NL3 daughterboard connector JP16/Pins 17 - 22
Audio connector J9 32-bit PCI slots PC1 - PC2
Power LED J10 Chassis intrusion connector SW1

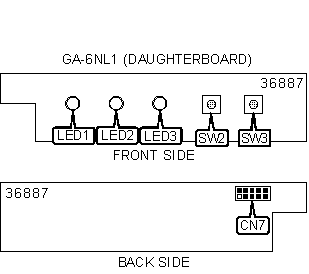

CONNECTIONS

Function

Label

Function

Label

Connector to GA-6RNC riser card (connects to JP16/Pins 1 - 10) CN7 Volume increase button SW3
Volume decrease button SW2


DIAGNOSTIC LED(S)

LED

Function

LED1

 Green PC LED

LED2

 LAN-LED

LED3

 IDE interface LED
Note: Condition of LEDs are unidentified

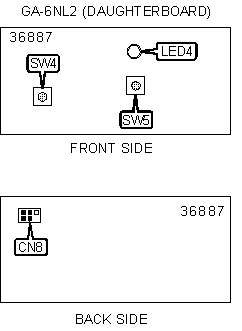

CONNECTIONS

Function

Label

Function

Label

Connector to GA-6RNC riser card (connects to JP16/Pins 11 - 16) CN8 Power switch SW5
Reset switch SW4


DIAGNOSTIC LED(S)

LED

Function

LED4

 Power LED
Note: Condition of LEDs are unidentified



CONNECTIONS

Function

Label

Function

Label

Microphone in CN9 Microphone in & line out connector JP19
Line out CN10 Connector to GA-6RNC riser card (connects to JP16/Pins 17 - 22) JP20
