GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6RNY (REV. 2.3)
| Card Type | Mainboard riser card (NLX form factor) |
| I/O Options | 32-bit PCI slots (2), audio in CD-ROMs (2), floppy drive interface, green PC connector, IDE interfaces (2), IR connector, microphone-in, USB interface, Wake-on-LAN connector, Wake-on-modem connector |
| Drives supported | Four IDE drives |
| Data Bus | Proprietary |

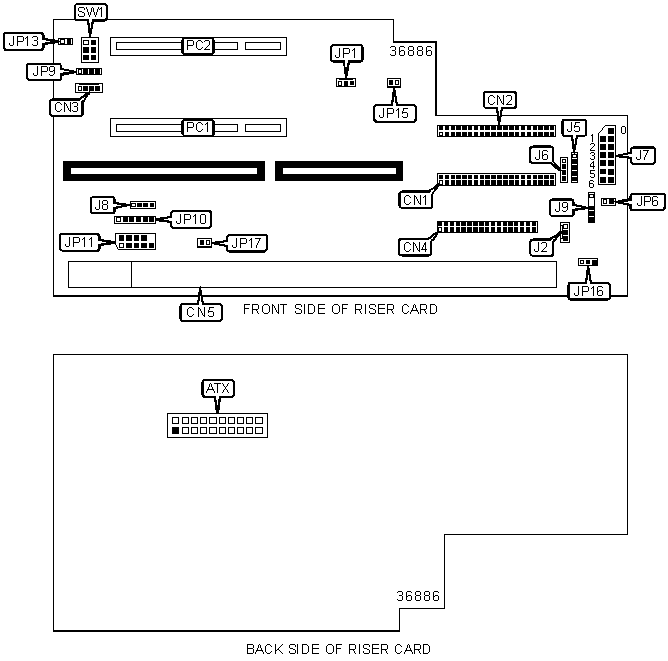

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| ATX power connector | ATX | IDE interface LED | J7/6 |
| IDE interface 1 | CN1 | Volume control connector | J8 |
| IDE interface 2 | CN2 | USB interface | J9 |
| Audio in - CD-ROM | CN3 | Wake-on-LAN connector | JP1 |
| Floppy drive interface | CN4 | LAN LED | JP6 |
| Mainboard slot | CN5 | Audio in - CD-ROM | JP9 |
| System fan power | J2 | Onboard sound function connector 1 | JP10 |
| IR connector | J5 | Onboard sound function connector 2 | JP11 |
| PC speaker | J6 | Chassis intrusion connector | JP13 |
| Reset switch | J7/1 | Wake-on-modem connector | JP15 |
| Green PC switch | J7/2 | Power LED | JP16 |
| Power switch | J7/3 | Microphone in | JP17 |
| Power LED | J7/4 | 32-bit PCI slots | PC1 - PC2 |
| Green PC LED | J7/5 | Chassis intrusion connector | SW1 |
