FAMOUS TECHNOLOGY CO., LTD.

MP-6VIP-F (REV. 1.00)
Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 300/333/366/400/450/500/550/600MHz
Chip Set VIA
Audio Chip Set AC97 Codec
Maximum Onboard Memory 768MB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 305mm x 170mm
I/O Options 32-bit PCI slots (4), AGP slot, ATX power connector, audio in - CD-ROMs (2), audio modem riser slot, floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), IR connector, line in, line out, microphone in, parallel port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on-LAN connector

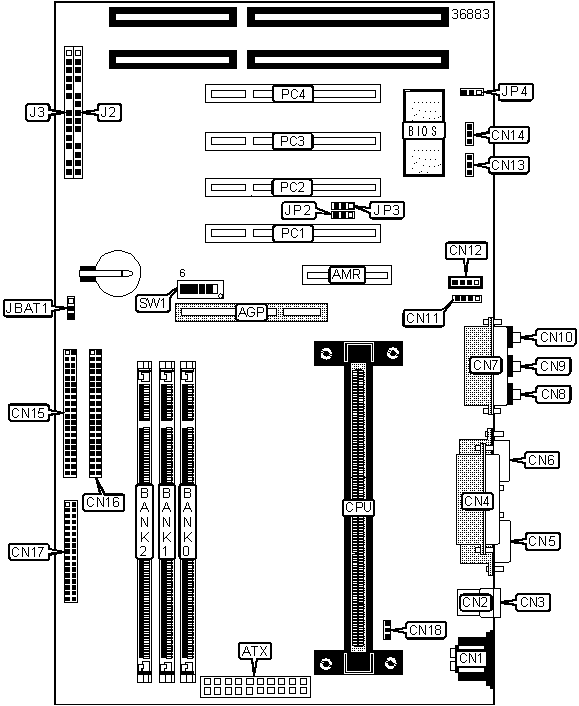

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot AGP Wake-on-LAN connector CN13
Audio modem riser slot AMR System fan power CN14
ATX power connector ATX IDE interface 1 CN15
PS/2 mouse port CN1 IDE interface 2 CN16
USB port 1 CN2 Floppy drive interface CN17
USB port 2 CN3 CPU fan power CN18
Parallel port CN4 IDE interface LED J2/Pins 1 - 4
Serial port 1 CN5 IR connector J2/Pins 6 - 10
Serial port 2 CN6 Power switch J2/Pins 12 & 13
Game/MIDI port CN7 Green PC connector J2/Pins 14 & 15
Line out CN8 Speaker J3/Pins 1 - 4
Line in CN9 Reset switch J3/Pins 5 & 6
Microphone in CN10 Power LED & keylock J3/Pins 8 - 12
Audio in - CD-ROM CN11 Green PC LED J3/Pins 14 & 15
Audio in - CD-ROM CN12 32-bit PCI slots PC1-PC4


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation JBAT1 Pins 1 & 2 closed
  CMOS memory clear JBAT1 Pins 2 & 3 closed
» Use power switch on the mainboard JP4 Pins 1 & 2 closed
  Use ATX power supply to control on/off switch JP4 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 256/512KB cache is located on Pentium II & Pentium III CPUs. 128KB cache is located on Celeron 300A and greater CPUs.


ONBOARD SOUND SELECTION

Setting

JP2

JP3
» Onboard sound enabled Pins 2 & 3 closed Pins 1 & 2 closed
  Onboard sound disabled Pins 1 & 2 closed Pins 2 & 3 closed


CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

 SW1/1 SW1/2 SW1/3 SW1/4 SW1/5 SW1/6
300MHz 66MHz 4.5x On Off On Off On Off
333MHz 66MHz 5.0x Off Off On On On Off
366MHz 66MHz 5.5x Off Off Off On On Off
400MHz 66MHz 6.0x On On On Off On Off
450MHz 100MHz 4.5x On Off On Off Off Off
500MHz 100MHz 5.0x Off Off On On Off Off
550MHz 100MHz 5.5x Off Off Off On Off Off
600MHz 100MHz 6.0x On On On Off Off Off

Note: To use the auto-detect (default) bus clock setting, SW1/5 is off, and SW1/6 is on.
