FAMOUS TECHNOLOGY CO., LTD.

MP-6VIP-C (REV. 1.00)
Device Type Mainboard
Processor Celeron
Processor Speed 300/333/366/400MHz
Chip Set VIA
Audio Chip Set AC97 Codec
Maximum Onboard Memory 768MB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128 (located on the Celeron CPU)
BIOS Award
Dimensions 305mm x 170mm
I/O Options 32-bit PCI slots (4), AGP slot, ATX power connector, audio in - CD-ROMs (2), audio modem riser slot, floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), IR connector, line in, line out, microphone in, parallel port, PS/2 mouse port, serial ports (2), USB ports (2), Wake-on-LAN connector

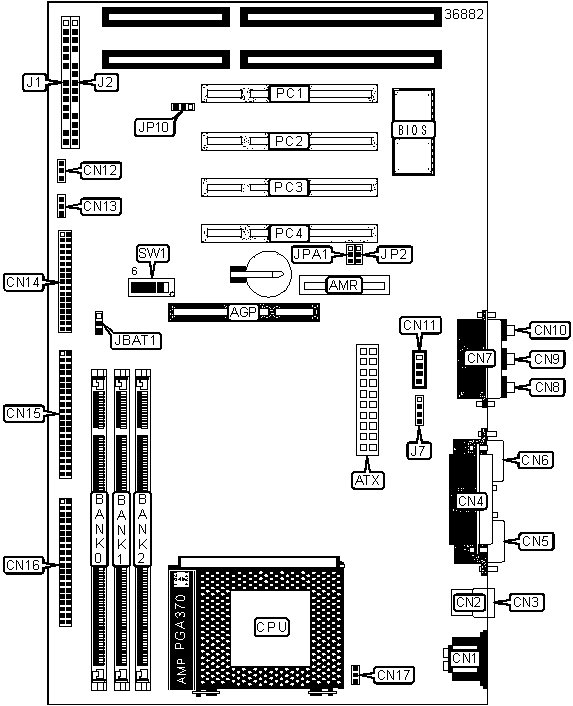

CONNECTIONS

Purpose

Location

Purpose

Location
AGP slot AGP Wake-on-LAN connector CN13
Audio modem riser slot AMR Floppy drive interface CN14
ATX power connector ATX IDE interface 1 CN15
PS/2 mouse port CN1 IDE interface 2 CN16
USB port 1 CN2 CPU fan power CN17
USB port 2 CN3 Speaker J1/Pins 1 - 4
Parallel port CN4 Reset switch J1/Pins 5 & 6
Serial port 2 CN5 Power LED & keylock J1/Pins 8 - 12
Serial port 1 CN6 Green PC LED J1/Pins 14 & 15
Game/MIDI port CN7 IDE interface LED J2/Pins 1 - 4
Line out CN8 IR connector J2/Pins 6 - 10
Line in CN9 Power switch J2/Pins 12 & 13
Microphone in CN10 Green PC connector J2/Pins 14 & 15
Audio in - CD-ROM CN11 Audio in - CD-ROM J7
System fan power CN12 32-bit PCI slots PC1-PC4


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation JBAT1 Pins 1 & 2 closed
  CMOS memory clear JBAT1 Pins 2 & 3 closed
» Use power switch on the mainboard JP10 Pins 1 & 2 closed
  Use ATX power supply to control on/off switch JP10 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 128KB cache is located on Celeron 300A and greater CPUs.


ONBOARD SOUND SELECTION

Setting

JP2

JPA1
» Onboard sound enabled Pins 2 & 3 closed Pins 2 & 3 closed
  Onboard sound disabled Pins 1 & 2 closed Pins 1 & 2 closed


CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

 SW1/1 SW1/2 SW1/3 SW1/4 SW1/5 SW1/6
300MHz 66MHz 4.5x On Off On Off On Off
333MHz 66MHz 5.0x Off Off On On On Off
366MHz 66MHz 5.5x Off Off Off On On Off
400MHz 66MHz 6.0x On On On Off On Off

Note: To use the auto-detect (default) bus clock setting, SW1/5 is off, and SW1/6 is on.
