FAMOUS TECHNOLOGY CO., LTD.
MP-6JLX (REV. 1.00)
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 32-bit PCI slots (4), AGP slot, ATX power connector, floppy drive interface, green PC connector, IDE interfaces (2), IR connector, parallel port, PS/2 mouse port, serial ports (2), USB ports (2) |

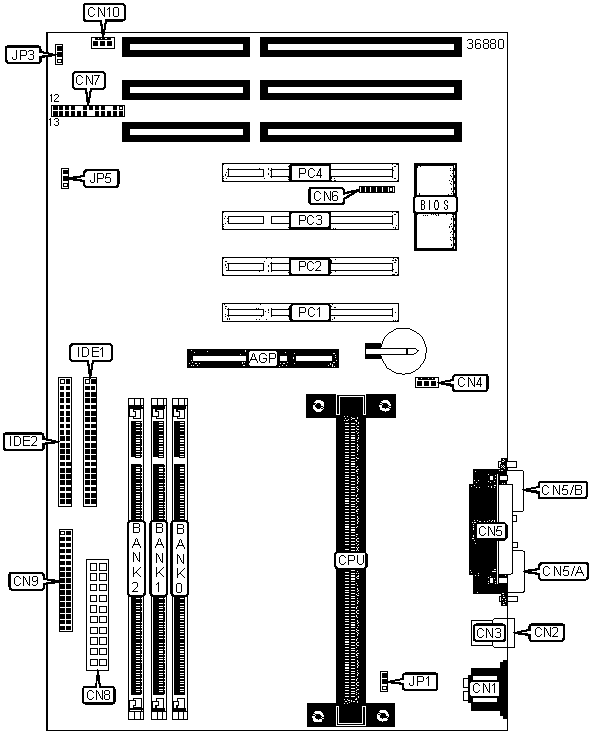

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Reset switch | CN7/Pins 9 & 10 |
| PS/2 mouse port | CN1 | IDE interface LED | CN7/Pins 11 & 12 |
| USB port 2 | CN2 | Power LED & keylock | CN7/Pins 13 - 17 |
| USB port 1 | CN3 | Speaker | CN7/Pins 19 - 22 |
| CPU fan power | CN4 | Power over-ride switch | CN7/Pins 23 & 24 |
| Parallel port | CN5 | ATX power connector | CN8 |
| Serial port 1 | CN5/A | Floppy drive interface | CN9 |
| Serial port 2 | CN5/B | System fan power | CN10 |
| IR connector | CN6 | IDE interface 1 | IDE1 |
| Turbo LED | CN7/Pins 1 & 2 | IDE interface 2 | IDE2 |
| Green PC switch | CN7/Pins 4 & 5 | Chassis intrusion connector | JP3 |
| Green PC LED | CN7/Pins 6 & 7 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Power on by keyboard disabled | JP1 | Pins 1 & 2 closed |
| Power on by keyboard enabled | JP1 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP5 | Pins 1 & 2 closed |
| CMOS memory clear | JP5 | Pins 2 & 3 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO
& SDRAM memory. Note: EDO & SDRAM can not be mixed. |
|||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. |
