TMC RESEARCH CORPORATION

AI5TV (VER. 1.3D)
Device Type Mainboard
Processor CX 6X86/CX 6X86L/AM K5/AM K6
Pentium/Pentium MMX
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel 430VX
Maximum Onboard Memory 128MB (EDO supported)
Cache 256/512KB
BIOS NCR
Dimensions Unidentified
I/O Options 16-bit ISA slots (3), 32-bit PCI slots (4), AT keyboard port, AT power connector, floppy drive interface, IDE interfaces (2), parallel port,  PS/2 mouse interface, serial interfaces (2), cache slot, IR connector, USB interfaces (2)

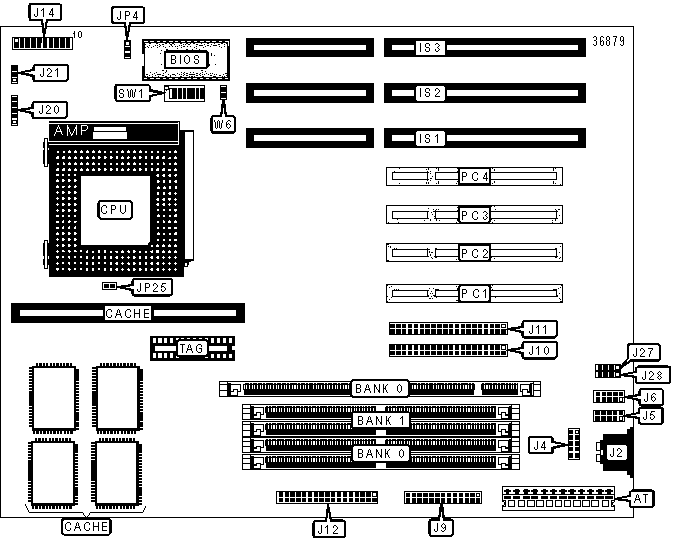

CONNECTIONS

Purpose

Location

Purpose

Location

AT power connector

AT

 Speaker J14/Pins 1 - 4
Cache slot CACHE Turbo LED J14/Pins 8 & 16
16-bit ISA slots IS1 - IS3 Reset switch J14/Pins 9 & 18
AT keyboard/mouse interafce J2 Power LED & keylock J14/Pins 11 - 15
PS/2 mouse interface J4 IDE interface LED J14/Pins 10 & 20
Serial interface 1 J5 IR connector J20
Serial interface 2 J6 CPU fan power J21
Parallel interface J9 USB interface 1 J27
IDE interface 1 J10 USB interace 2 J28
IDE interface 2 J11 32-bit PCI slots

PC1 - PC4
Floppy drive interface J12


USER CONFIGURABLE SETTINGS

Function

Label

Position
  Flash BIOS voltage select 12v JP4

Pins 1 & 2 closed
  Flash BIOS voltage select 5v JP4

Pins 2 & 3 closed

»

 PCI clock/4 selected SW1/1 On
  PCI clock/3 selected SW1/1 Off
» Factory configured - do not alter SW1/4 Off

»

 CMOS memory normal operation

W6

Open
  CMOS memory clear

W6

Closed


SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Neither SIMM Bank 1 nor DIMM Bank 0 can be installed at the same time.


DIMM CONFIGURATION

Size

Bank 0

8MB

(1) 1M x 64

16MB

(1) 2M x 64

32MB

(1) 4M x 64

64MB

(1) 8M x 64


CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

120MHz

50MHz

2x

 On Off On On On

133MHz

55MHz

2x

 Off Off On On On

150MHz

60MHz

2x

 On Off On On Off

166MHz

65MHz

2x

 On Off On Off On


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

166MHz

65MHz

2x

 On Off On Off On


CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

75MHz

50MHz

1.5x

 On Off Off On On

90MHz

60MHz

1.5x

 On Off Off On Off

100MHz

66MHz

1.5x

 On Off Off Off On

120MHz

60MHz

1.5x

 On Off Off On Off

133MHz

66MHz

1.5x

 On Off Off Off On

150MHz

60MHz

1.75x

 On On On On Off

166MHz

66MHz

1.75x

 On On On Off On


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

166MHz

66MHz

1.75x

 On On On Off On

200MHz

66MHz

3x

 On On Off Off On


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

75MHz

50MHz

1.5x

 On Off Off On On

90MHz

60MHz

1.5x

 On Off Off On Off

100MHz

66MHz

1.5x

 On Off Off Off On

120MHz

60MHz

2x

 On Off On On Off

133MHz

66MHz

2x

 On Off On Off On

150MHz

60MHz

2.5x

 On On On On Off

166MHz

66MHz

2.5x

 On On On Off On

200MHz

66MHz

3x

 On On Off Off On


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

SW1/3

 SW1/5 SW1/6

SW1/7

SW1/8

166MHz

66MHz

2.5x

 On On On Off On

200MHz

66MHz

3x

 On On Off Off On

233MHz

66MHz

3.5x

 On Off Off Off On


CPU VOLTAGE SELECTION

Voltage core

 Voltage I/O JP25 SW1/2
2.8V 2.8V Open Off
3.5V 3.5V Closed On
