MOTOROLA, INC.

PATX3000-101

Device Type Mainboard
Processor Pentium II/Pentium III
Processor Speed 350/400/450/500MHz
Chip Set Intel 440BX
Audio Chip Set Ensoniq
Maximum Onboard Memory 1GB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 512KB
BIOS Phoenix
Dimensions 305mm x 244mm
I/O Options 16-bit ISA slots (2), 32-bit PCI slots (4), AGP slot, ATX power connector, Audio in - CD-ROM, Auxiliary in, Chassis intrusion connector, Ethernet 10BaseT connector, Floppy drive interface, IDE interfaces (2), IEEE-1394 serial connectors (3), IR connector, Line in, Line out, Microphone in, Parallel port, PS/2 keyboard port, PS/2 mouse port, RAID slot, Serial interface, Serial ports (2), USB interface, USB ports (2), Wide Ultra SCSI interfaces (2)

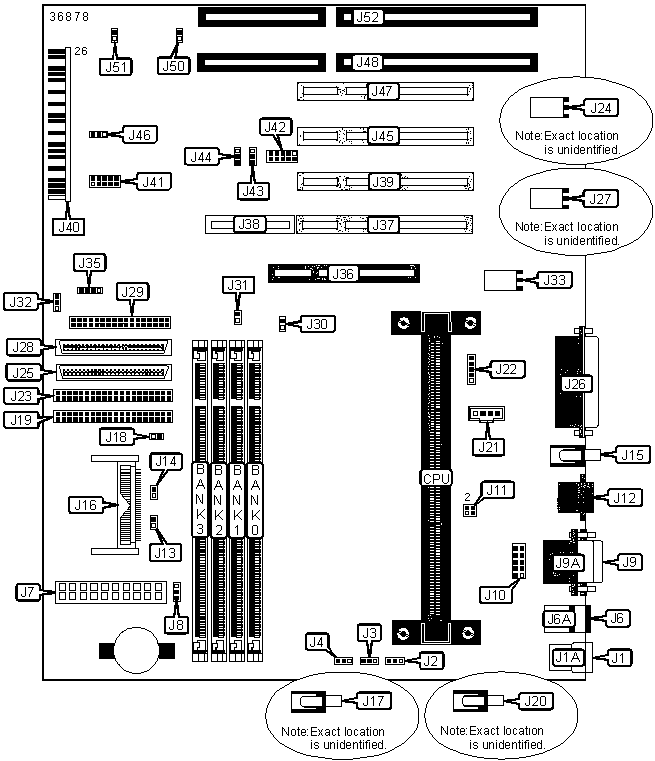

CONNECTIONS

Purpose

Location

Purpose

Location

USB port 1 J1 IDE interface 1 J23
USB port 2 J1A IEEE-1394 serial port 1 connector J24
CPU fan power J2 Wide Ultra SCSI channel B interface J25
Power supply fan power J3 Parallel port J26
Chassis fan power J4 IEEE-1394 serial port 2 connector J27
PS/2 keyboard port J6 Wide Ultra SCSI channel A interface J28
PS/2 mouse port J6A Floppy drive interface J29
ATX power connector J7 Unidentified J30
Serial port 1 J9 Unidentified J31
Serial port 2 J9A IEEE-1394 serial port 3 connector J33
Serial interface J10 USB interface J35
Ethernet LED connector J11 AGP slot J36
Ethernet 10BaseT connector

J12

32-bit PCI slot 1 J37
Unidentified J14 Raid slot J38
Line out J15 32-bit PCI slot 2 J39
ATA Flash memory card connector J16 Front panel interface J40
Microphone in J17 IR connector J41
Reset switch J18 32-bit PCI slot 3 J45
IDE interface 2 J19 Chassis intrusion connector J46
Line in J20 32-bit PCI slot 4 J47
Audio in - CD ROM J21 16-bit ISA slot 1 J48
Auxiliary in J22 16-bit ISA slot 2 J52


USER CONFIGURABLE SETTINGS

Function

Label

Position

» Battery type select internal J8 Pins 1 & 2 closed
  Battery type select external J8 Closed*
» ATA Flash memory device slave mode J13 Open



ATA Flash memory device master mode J13 Closed
» CMOS to EEPROM backup disabled J32 Pins 1 & 2 closed
  CMOS to EEPROM backup enabled J32 Pins 2 & 3 closed
» USB port 2 (J1) selected J42 Pins 1 & 3, 2 & 4, 9 & 10 closed
  USB interface (J35) selected J42 Pins 3 & 5, 4 & 6, 7 & 8 closed
» Beep tones directed to onboard speaker J43 Pins 2 & 3 closed
  Beep tones directed to audio chip J43 Pins 1 & 2 closed

»

CMOS memory normal operation J44 Pins 2 & 3 closed
  CMOS memory clear J44 Pins 1 & 2 closed

»

Flash boot block write protect enabled J50 Closed
  Flash boot block write protect disabled J50 Open
» Watchdog timer disabled J51 Open
  Watchdog timer enabled J51 Closed
Note: *J8 is used as an external battery connector when the internal jumper setting is not used.


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

None

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

(1) 4M x 64

None

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

None

64MB

(1) 8M x 64

None

None

None

80MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 16M x 64

None

None

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 32M x 64

None

None

None

272MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

None

528MB

(1) 32M x 64

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

544MB

(1) 32M x 64

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

576MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

640MB

(1) 32M x 64

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

1024MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: 512KB cache is located on Pentium II & Pentium III CPUs.
