MOTOROLA, INC.
MTX604
| Device Type | Mainboard |
| Processor | PowerPC 603 |
| Processor Speed | 200/300MHz |
| Chip Set | Falcon |
| Maximum Onboard Memory | Unidentified (EDO supported) |
| Cache | 256/1024KB |
| BIOS | Unidentified |
| Dimensions | 305mm x 244mm |
| I/O Options | 32-bit PCI slots (3), 64-bit PCI slot, 64-bit PMC slots (2), Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), SCSI interface, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), serial interfaces (2), AUI port, 16-bit latched data connector, RISCWATCH connector, front panel connector, ATX power connector |

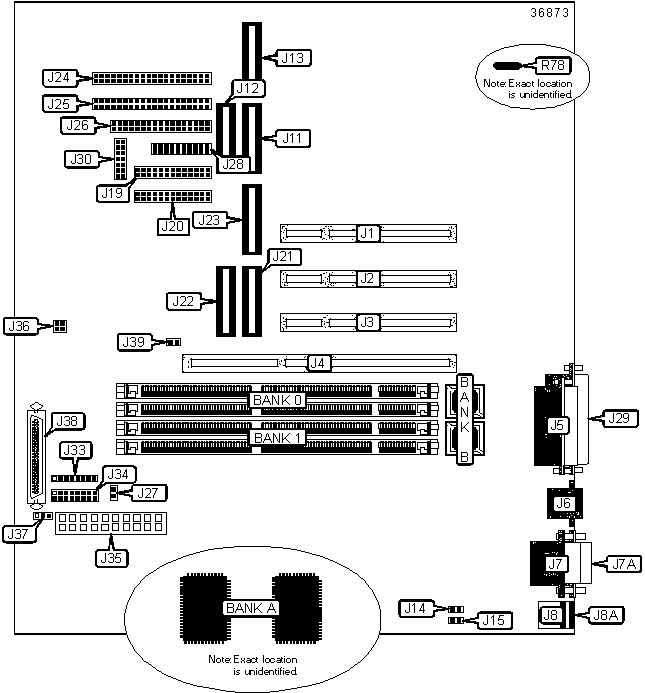

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| 32-bit PCI slots | J1 - J3 | EIDE interface 1 | J24 |
| 64-bit PCI slot | J4 | EIDE interface 2 | J25 |
| AUI port | J5 | Floppy drive interface | J26 |
| RJ-45 UTP connector | J6 | Power supply switch | J27 |
| Serial port 2 | J7 | 16-bit latched data connector | J28 |
| Serial port 1 | J7A | Parallel port | J29 |
| PS/2 keyboard port | J8 | Front panel connector | J30 |
| PS/2 mouse port | J8A | RISCWATCH connector | J34 |
| 64-bit PMC slot 1 | J11 - 13 | ATX power connector | J35 |
| Serial interface 2 | J19 | SCSI connector | J38 |
| Serial interface 1 | J20 | Power switch | J39 |
| 64-bit PMC slot 2 | J21 - 23 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Factory configured - do not alter | J14 |
Unidentified |
» |
Factory configured - do not alter | J15 |
Open |
» |
On-board SCSI teriminators enabled | J36 |
Pins 1 & 2 open |
| On-board SCSI terminators disabled | J36 | Pins 1 & 2 closed | |
| » | UltraSCSI firmware negotiation enabled | J36 |
Pins 3 & 4 open |
| UltraSCSI firmware negotiation disabled | J36 |
Pins 3 & 4 closed |
|
| » | Flash memory bank B selected | J37 | Pins 2 & 3 closed |
|
Flash memory bank A selected | J37 | Pins 1 & 2 closed |
| » | Flash memory bank A write protection enabled | R78 | Uninstalled |
| Flash memory bank A write protection disabled | R78 | Installed | |
DIMM CONFIGURATION |
| Note: Board accepts EDO memory, configuration and maximum amount is unidentified. DIMM modules must be installed in pairs. |
CACHE CONFIGURATION |
|
Size |
Bank B |
| 1MB | Installed |
MISCELLANEOUS TECHNICAL NOTES |
L ocation of CPU is unidentified. |
