MOTOROLA, INC.

MTX604-070
Device Type Mainboard
Processor PowerPC 603e/604e
Processor Speed 200/333MHz
Chip Set Falcon3
Maximum Onboard Memory 1GB (EDO supported)
Cache 256/512KB
BIOS Unidentified
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (6), 64-bit PCI slot, 16-bit ISA slot, Ethernet 10BaseT connectors (2), floppy drive interface, IDE interface, SCSI interface, parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), 16-bit latched data connector, RISCWATCH connector, front panel connector, ATX power connector

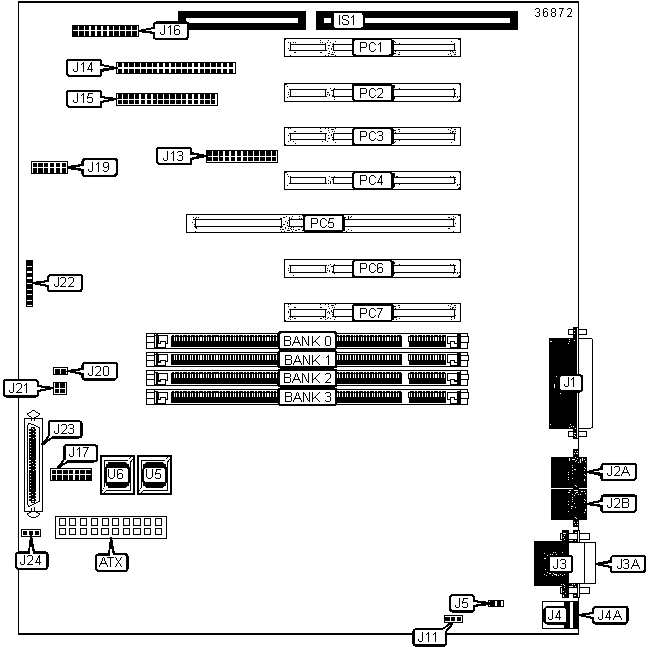

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector ATX IDE interface J14
16-bit ISA slot IS1 Floppy drive interface J15
Parallel port J1 16-bit latched data connector J16
RJ-45 UTP connector 1 J2A RISCWATCH connector J17
RJ-45 UTP connector 2 J2B Speaker & power status connector J19
Serial port 1 J3 Power switch J20
Serial port 2 J3A GAL programming header J22
PS/2 mouse port J4 SCSI connector J23
PS/2 keyboard port J4A 32-bit PCI slots PC1 - 4, PC6 - 7
Front panel connector J13 64-bit PCI slot PC5


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Cache write-through always enabled

J5

Open
  Cache write-through controlled by CPU

J5

Closed

»

 Factory configured - do not alter

J11

Open

»

 On-board SCSI teriminators enabled

J21

Pins 1 & 2 open
  On-board SCSI terminators disabled J21 Pins 1 & 2 closed
» UltraSCSI firmware negotiation enabled

J21

Pins 3 & 4 open
  UltraSCSI firmware negotiation disabled

J21

Pins 3 & 4 closed
» Flash memory bank B selected J24 Pins 2 & 3 closed



 Flash memory bank A selected J24 Pins 1 & 2 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(1) 1M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

16MB

(1) 2M x 64

None

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

None

32MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

(1) 4M x 64

None

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

None

64MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

None

64MB

(1) 8M x 64

None

None

None

80MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 16M x 64

None

None

None

144MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 32M x 64

None

None

None

272MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

None

528MB

(1) 32M x 64

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

544MB

(1) 32M x 64

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

576MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

640MB

(1) 32M x 64

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

1024MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:  Board supports EDO memory.


CACHE CONFIGURATION

Size

U5

 U6
1MB

Installed

 Installed


MISCELLANEOUS TECHNICAL NOTES

Location of CPU is unidentified.
