PACKARD BELL

PB 600 SPECTRIA, PB 600
Device Type Mainboard
Processor Pentium
Processor Speed 75/90/100MHz
Chip Set VLSI
Video Chip Set Cirrus Logic
Maximum Onboard Memory 136MB
Maximum Video Memory 2MB
Cache 256KB
BIOS Phoenix
Dimensions Unidentified
I/O Options Floppy drive interface, IDE interfaces (2), parallel port, PS/2 keyboard port, PS/2 mouse port, serial port, VESA feature connector, VGA port, riser slot, AT power connector

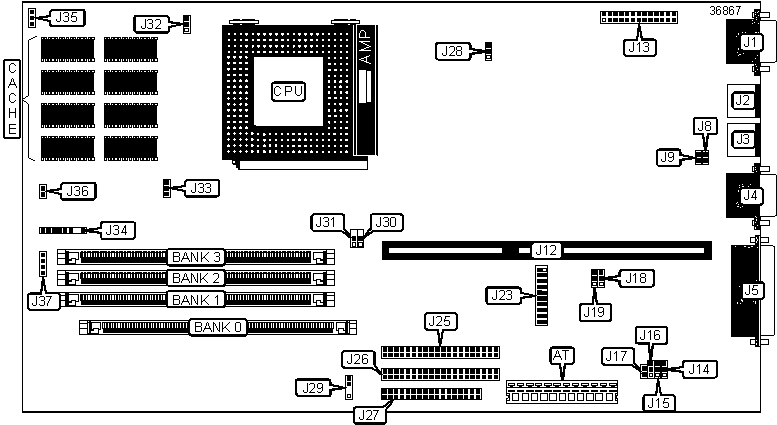

CONNECTIONS

Purpose

Location

Purpose

Location

AT power connector AT Modem header connector J23
VGA port J1 IDE interface 1 J25
PS/2 keyboard port J2 IDE interface 2 J26
PS/2 mouse port J3 Floppy drive interface J27
Serial port J4 Front panel connector J34
Parallel port J5 Auxiliary fan power J35
Riser slot J12 Keylock connector J36
VESA feature connector J13


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Factory configured - do not alter

J8

Open

»

 Factory configured - do not alter

J9

Unidentified

»

 Boot normal operation J14 Pins 2 & 3 closed
  Boot block selected J14 Pins 1 & 2 closed

»

 On-board I/O enabled

J15

Pins 2 & 3 closed
  On-board I/O disabled

J15

Pins 1 & 2 closed

»

 Factory configured - do not alter

J16

Unidentified

»

 Standard power supply selected

J17

Closed
  Standby power supply selected

J17

Open
  Standard/VR CPU 3.3V selected J28 Pins 1 & 2 closed
  VRE CPU 3.6V selected J28 Pins 2 & 3 closed
» On-board battery selected J29 Pins 3 & 4 closed
  External battery selected - jumper becomes connector for battery J29 Open

»

 Factory configured - do not alter

J32

Open

»

 Factory configured - do not alter

J33

Unidentified
» On-board speaker selected J37 Pins 3 & 4 closed
  External speaker selected - jumper becomes connector for battery J37 Open


SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

None

None

None

2MB

(1) 512K x 36

None

None

None

2MB

(1) 256K x 36

(1) 256K x 36

None

None

3MB

(1) 512K x 36

(1) 256K x 36

None

None

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

None

3MB

(1) 256K x 36

(1) 512K x 36

None

None

4MB

(1) 1M x 36

None

None

None

4MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

None

4MB

(1) 512K x 36

(1) 512K x 36

None

None

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 1M x 36

(1) 256K x 36

None

None

5MB

(1) 512K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

5MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

None

5MB

(1) 256K x 36

(1) 1M x 36

None

None

6MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

None

6MB

(1) 1M x 36

(1) 512K x 36

None

None

6MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

None

6MB

(1) 512K x 36

(1) 1M x 36

None

None

7MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

7MB

(1) 256K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

8MB

(1) 2M x 36

None

None

None

8MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

None

8MB

(1) 1M x 36

(1) 1M x 36

None

None

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

9MB

(1) 2M x 36

(1) 256K x 36

None

None

9MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

None

9MB

(1) 256K x 36

(1) 2M x 36

None

None

10MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

None

10MB

(1) 2M x 36

(1) 512K x 36

None

None

10MB

(1) 1M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

10MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

None

10MB

(1) 512K x 36

(1) 2M x 36

None

None

11MB

(1) 2M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

12MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

None

12MB

(1) 2M x 36

(1) 1M x 36

None

None

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

None

12MB

(1) 1M x 36

(1) 2M x 36

None

None

13MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

14MB

(1) 2M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

14MB

(1) 512K x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

None

None

None

16MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

None

16MB

(1) 2M x 36

(1) 2M x 36

None

None

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

17MB

(1) 4M x 36

(1) 256K x 36

None

None

17MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

None

17MB

(1) 256K x 36

(1) 4M x 36

None

None

18MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

None

18MB

(1) 4M x 36

(1) 512K x 36

None

None

18MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

None

18MB

(1) 512K x 36

(1) 4M x 36

None

None

19MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

20MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

None

20MB

(1) 4M x 36

(1) 1M x 36

None

None

20MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

20MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

None

20MB

(1) 1M x 36

(1) 4M x 36

None

None

22MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

None

24MB

(1) 4M x 36

(1) 2M x 36

None

None

24MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

None

24MB

(1) 2M x 36

(1) 4M x 36

None

None

25MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

26MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

28MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

28MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

32MB

(1) 8M x 36

None

None

None

32MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

None

None

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

33MB

(1) 8M x 36

(1) 256K x 36

None

None

33MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

None

33MB

(1) 256K x 36

(1) 8M x 36

None

None

34MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

None

34MB

(1) 8M x 36

(1) 512K x 36

None

None

34MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

None

34MB

(1) 512K x 36

(1) 8M x 36

None

None

35MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

36MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

None

36MB

(1) 8M x 36

(1) 1M x 36

None

None

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

None

36MB

(1) 1M x 36

(1) 8M x 36

None

None

38MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

40MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

None

40MB

(1) 8M x 36

(1) 2M x 36

None

None

40MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

None

40MB

(1) 2M x 36

(1) 8M x 36

None

None

44MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

48MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

None

48MB

(1) 8M x 36

(1) 4M x 36

None

None

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

None

48MB

(1) 4M x 36

(1) 8M x 36

None

None

49MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

50MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

52MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

56MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

56MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

None

64MB

(1) 8M x 36

(1) 8M x 36

None

None

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

65MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

None

66MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

None

68MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

None

72MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

None

80MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

80MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

None

96MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

None

97MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

98MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

100MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

104MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

112MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36


CPU CLOCK SPEED SELECTION

Clock Speed

 J30 J31
50MHz Open Open
60 - 66MHz Closed Closed


PARALLEL PORT ECP DRQ/DACK SELECTION

Setting

 J18 J19
» Channel 3 Pins 2 & 3 closed Pins 2 & 3 closed
  Channel 1 Pins 1 & 2 closed Pins 1 & 2 closed
