PINE TECHNOLOGY
TL-IBX3-19
| Device Type | Mainboard |
| Processor | Pentium II (2) |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 1024MB (SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 228mm x 305mm |
| I/O Options | 32-bit PCI slots (5), 16-bit ISA slots (2), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, Wake-on-modem connector |

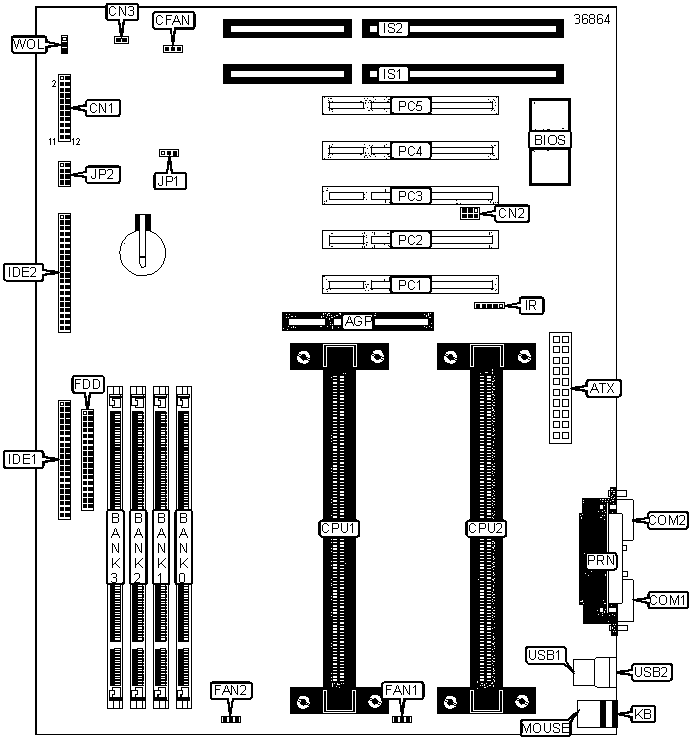

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | CPU fan power 2 | FAN1 |
| ATX power connector | ATX | CPU fan power 1 | FAN2 |
| Chassis fan power | CFAN | Floppy drive interface | FDD |
| Green PC LED | CN1/Pins 1 - 3 | IDE interface 1 | IDE1 |
| IDE interface LED | CN1/Pins 4 - 7 | IDE interface 2 | IDE2 |
| Reset switch | CN1/Pins 8 & 9 | IR connector | IR |
| Power switch | CN1/Pins 10 & 11 | 16-bit ISA slots | IS1 - IS2 |
| Speaker | CN1/Pins 12 - 15 | PS/2 keyboard port | KB |
| Green PC connector | CN1/Pins 16 & 17 | PS/2 mouse port | MOUSE |
| Power LED & keylock | CN1/Pins 18 - 22 | 32-bit PCI slots | PC1 - PC5 |
| SB link connector | CN2 | Parallel port | PRN |
| Wake-on-modem connector | CN3 | USB port 1 | USB1 |
| Serial port 1 | COM1 | USB port 2 | USB2 |
| Serial port 2 | COM2 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 |
Pins 1 & 2 closed |
| CMOS memory clear | JP1 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
1024MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | ||||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION (PENTIUM) |
|||
CPU speed |
Clock speed |
Multiplier |
JP2 |
233MHz |
66MHz |
3.5x |
Pins 1 & 2, 7 & 8 closed |
266MHz |
66MHz |
4x |
Pins 3 & 4, 5 & 6, 7 & 8 closed |
300MHz |
66MHz |
4.5x |
Pins 3 & 4, 7 & 8 closed |
300MHz |
100MHz |
3x |
Pins 1 & 2, 5 & 6, 7 & 8 closed |
333MHz |
66MHz |
5x |
Pins 5 & 6, 7 & 8 closed |
350MHz |
100MHz |
3.5x |
Pins 1 & 2, 7 & 8 closed |
400MHz |
100MHz |
4x |
Pins 3 & 4, 5 & 6, 7 & 8 closed |
450MHz |
100MHz |
4.5x |
Pins 3 & 4, 7 & 8 closed |
| 500MHz | 100MHz | 5x | Pins 5 & 6, 7 & 8 closed |
