EDOM INTERNATIONAL CORPORATION
W6BXA
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/350/400/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 256/512KB |
| BIOS | Award |
| Dimensions | 305mm x 180mm |
| I/O Options | 32-bit PCI slots (4), 16-bit ISA slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector |

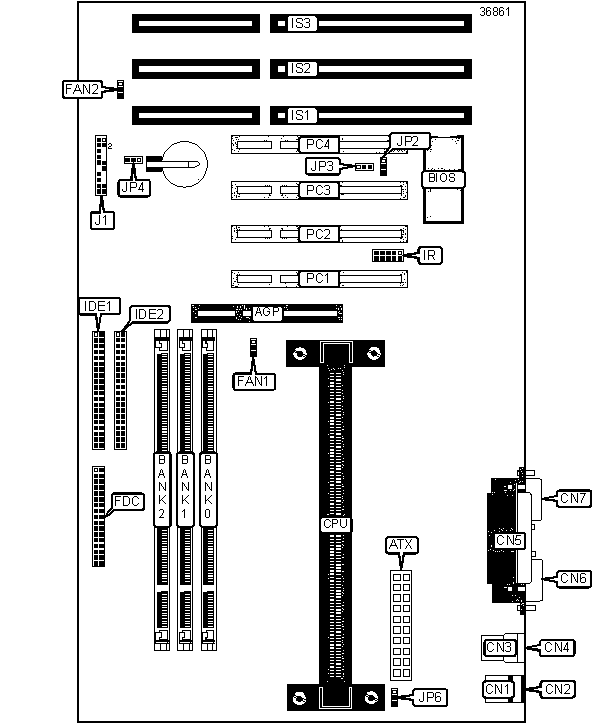

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | IDE interface 1 | IDE1 |
| ATX power connector | ATX | IDE interface 2 | IDE2 |
| PS/2 mouse port | CN1 | IR connector | IR |
| PS/2 keyboard port | CN2 | 16-bit ISA slots | IS1 - IS3 |
| USB port 1 | CN3 | IDE interface LED | J1/Pins 1 & 2 |
| USB port 2 | CN4 | Reset switch | J1/Pins 5 & 6 |
| Parallel port | CN5 | Power switch | J1/Pins 9 & 10 |
| Serial port 1 | CN6 | Speaker | J1/Pins 11 - 14 |
| Serial port 2 | CN7 | Power LED & keylock | J1/Pins 16 - 20 |
| Fan power 1 | FAN1 | Wake-on-LAN connector | JP3 |
| Fan power 2 | FAN2 | 32-bit PCI slots | PC1 - PC4 |
| Floppy drive interface | FDC | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
Flash BIOS voltage select 12v | JP2 | Pins 2 & 3 closed |
| Flash BIOS voltage select 5v | JP2 | Pins 1 & 2 closed | |
» |
CMOS memory normal operation | JP4 |
Pins 1 & 2 closed |
| CMOS memory clear | JP4 |
Pins 2 & 3 closed |
|
| » | Keyboard password/Mouse power on enabled | JP6 |
Pins 1 & 2 closed |
| Keyboard password/Mouse power on disabled | JP6 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
