OCEAN INFORMATION SYSTEMS, INC.
RHINO II BX-SATX
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/350/400/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 265mm x 193mm |
| I/O Options | 32-bit PCI slots (3), 16-bit ISA slots (2), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 keyboard port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, Wake-on-modem connector |

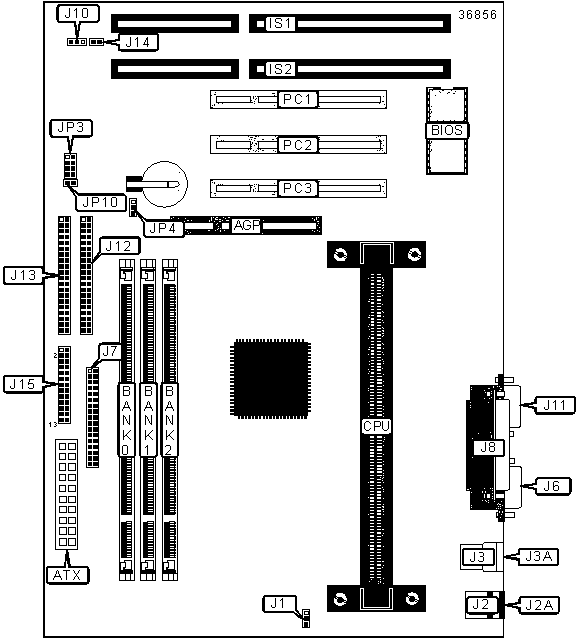

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | IDE interface 2 | J12 |
| ATX power connector | ATX | IDE interface 1 | J13 |
| 16-bit ISA slots | IS1 - IS2 | Wake-on-modem connector | J14 |
| CPU fan power | J1 | Speaker | J15/Pins 1 - 4 |
| PS/2 keyboard port | J2 | Power LED | J15/Pins 5 - 7 |
| PS/2 mouse port | J2A | Green PC LED | J15/Pins 8 & 9 |
| USB port 1 | J3 | Power switch | J15/Pins 10 & 11 |
| USB port 2 | J3A | Reset switch | J15/Pins 12 & 13 |
| Serial port 1 | J6 | Green PC switch | J15/Pins 17 & 18 |
| Floppy drive interface | J7 | IDE interface LED | J15/Pins 19 - 21 |
| Parallel port | J8 | IR connector | J15/Pins 22 - 26 |
| Wake-on-LAN connector | J10 | 32-bit PCI slots | PC1 - PC3 |
| Serial port 2 | J11 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
Clock speed set to 66MHz | JP10 | Closed |
| Clock speed set to 100MHz | JP10 | Open | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
JP3/Pins 1 & 2 |
JP3/Pins 3 & 4 | JP3/Pins 5 & 6 |
JP3/Pins 7 & 8 |
233MHz |
66MHz |
3.5x |
Closed | Open | Open | Closed |
266MHz |
66MHz |
4x |
Closed | Closed | Closed | Open |
300MHz |
66MHz |
4.5x |
Closed | Open | Closed | Open |
300MHz |
100MHz |
3x |
Open | Closed | Open | Closed |
333MHz |
66MHz |
5x |
Closed | Closed | Open | Open |
350MHz |
100MHz |
3.5x |
Open | Open | Open | Closed |
400MHz |
100MHz |
4x |
Open | Closed | Closed | Open |
450MHz |
100MHz |
4.5x |
Open | Open | Closed | Open |
Note: Pins designated should be in the closed position. |
||||||
CMOS SELECTION |
|
Setting |
JP4 |
| CMOS memory normal operation | Pins 1 & 2 closed |
| CMOS memory clear | Pins 2 & 3 closed |
| On-board battery disabled | Open |
