OCEAN INFORMATION SYSTEMS, INC.
RHINO II LX AT
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (3), 16-bit ISA slots (3), floppy drive interface, IDE interfaces (2), parallel interface, PS/2 mouse interface, Keyboard port, IR connector, serial interfaces (2), USB interface, ATX power connector, AGP slot, Wake-on-modem connector, Wake-on-LAN connector, SB-link connector, AT power connector |

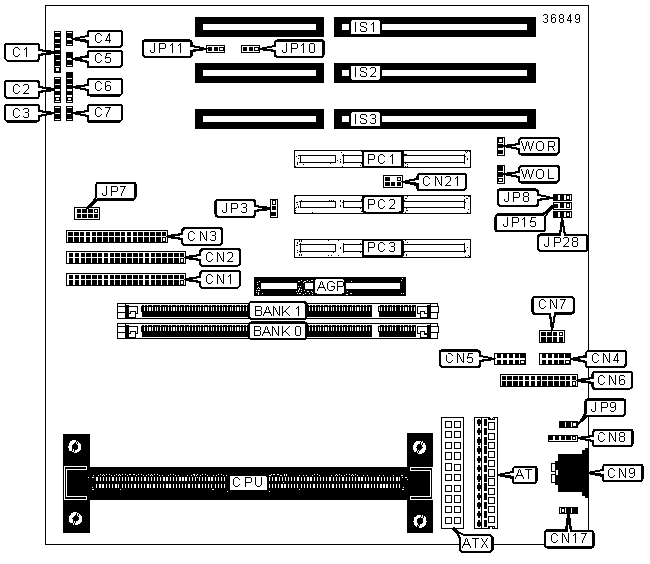

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | Serial interface 2 | CN5 |
| AT power connector | AT | Parallel interface | CN6 |
| ATX power connector | ATX | USB interface | CN7 |
| IR connector | C1 | PS/2 mouse interface | CN8 |
| PC speaker | C2 | Keyboard port | CN9 |
| Reset switch | C3 | CPU fan power | CN17 |
| Power switch | C4 | SB-link connector | CN21 |
| Case LED | C5 | 16-bit ISA slots | IS1 - IS3 |
| Power LED & keylock | C6 | Chassis fan power 1 | JP10 |
| IDE interface LED | C7 | Chassis fan power 2 | JP11 |
| IDE interface 1 | CN1 | 32-bit PCI slots | PC1 - PC3 |
| IDE interface 2 | CN2 | Wake-on-LAN connector | WOL |
| Floppy drive interface | CN3 | Wake-on-modem connector | WOR |
| Serial interface 1 | CN4 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP3 | Pins 1 & 2 closed |
| CMOS memory clear | JP3 | Pins 2 & 3 closed | |
» |
Factory configured - do not alter | JP8 |
Unidentified |
| » | AT power supply installed | JP9 |
Pins 1 & 2 closed |
| ATX power supply installed | JP9 |
Pins 2 & 3 closed |
|
» |
Factory configured - do not alter | JP15 |
Unidentified |
» |
Factory configured - do not alter | JP17 |
Unidentified |
| » | Keyboard power-on normal operation | JP28 |
Pins 1 & 2 closed |
| Keyboard power-on clear password | JP28 | Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB* |
(1) 32M x 64 |
None |
264MB* |
(1) 32M x 64 |
(1) 1M x 64 |
272MB* |
(1) 32M x 64 |
(1) 2M x 64 |
288MB* |
(1) 32M x 64 |
(1) 4M x 64 |
320MB* |
(1) 32M x 64 |
(1) 8M x 64 |
384MB* |
(1) 32M x 64 |
(1) 16M x 64 |
512MB* |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board
supports EDO & SDRAM memory. *Note: Memory configurations requires EDO memory. Maximum EDO is 512MB. Maximum SDRAM is 256MB. |
||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
