OCEAN INFORMATION SYSTEMS, INC.
RHINO PRO 1
| Device Type | Mainboard |
| Processor | Pentium Pro |
| Processor Speed | 150/166/180/200/233MHz |
| Chip Set | Intel 440FX |
| Maximum Onboard Memory | 256MB (EDO supported) |
| Cache | Unidentified |
| BIOS | Award |
| Dimensions | 304mm x 243mm |
| I/O Options | 32-bit PCI slots (4), 16-bit ISA slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, USB interface, ATX power connector, External Power connector |

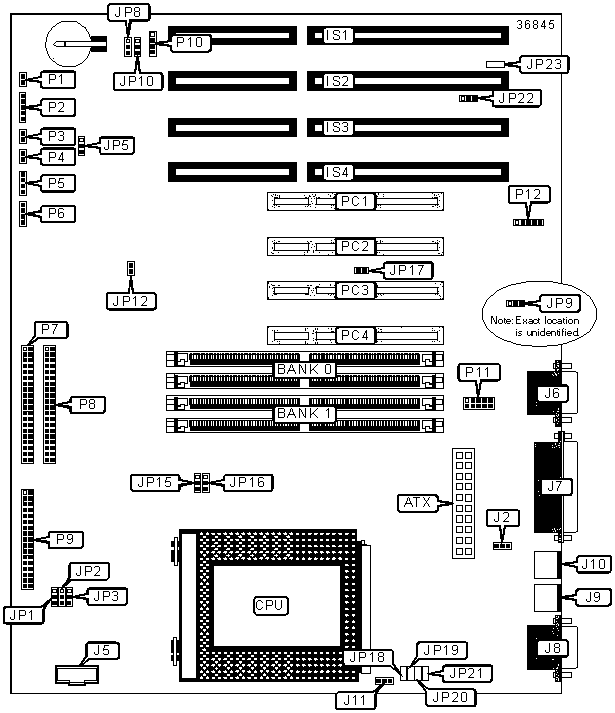

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX | Keylock | P2 |
| 16-bit ISA slots | IS1 - IS4 | Turbo LED | P3 |
| System fan power | J2 | Power switch | P4 |
| Unidentified | J5 | PC speaker | P5 |
| Serial port 1 | J6 | IDE interface LED | P6 |
| Parallel port | J7 | IDE interface 1 | P7 |
| Serial port 2 | J8 | IDE interface 2 | P8 |
| PS/2 mouse port | J9 | Floppy drive interface | P9 |
| PS/2 keyboard port | J10 | External power connector | P10 |
| CPU fan power | J11 | USB interface | P11 |
| Green PC connector | JP12 | IR connector | P12 |
| Reset switch | P1 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Flash EEPROM size 1MB | JP5 | Pins 1 & 2 closed | |
|
Flash EEPROM size 2MB | JP5 |
Pins 2 & 3 closed |
| » | CMOS memory normal operation | JP8 |
Pins 1 & 2 closed |
| CMOS memory clear | JP8 |
Pins 2 & 3 closed | |
» |
PS/2 mouse enabled | JP9 | Pins 1 & 2 closed |
| PS/2 mouse disabled | JP9 | Pins 2 & 3 closed | |
| Internal battery selected | JP10 |
Pins 1 & 2 closed |
|
| External battery selected | JP10 |
Pins 2 & 3 closed |
|
| Normal VGA mode | JP17 |
Closed |
|
| Special VGA mode | JP17 |
Open |
|
| » | Factory configured - do not alter | JP18 | Unidentified |
| » | Factory configured - do not alter | JP19 | Unidentified |
| » | Factory configured - do not alter | JP20 | Unidentified |
| » | Factory configured - do not alter | JP21 | Unidentified |
| System shut down via OS enabled | JP22 |
Pins 1 & 2 closed |
|
|
System shut down via OS disabled | JP22 |
Pins 2 & 3 closed |
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CPU SPEED SELECTION |
|||||||
CPU Speed |
Clock Speed | Multiplier | JP1 | JP2 | JP3 | JP15 | JP16 |
150MHz |
60MHz | 2.5x | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
166MHz |
66MHz | 2.5x | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
180MHz |
60MHz | 3x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 |
200MHz |
66MHz | 3x | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 | 1 & 2 |
| Note: Designated pins should be in the closed position. | |||||||
