OCEAN INFORMATION SYSTEMS, INC.
RHINO PRO 6
| Device Type | Mainboard |
| Processor | Pentium Pro |
| Processor Speed | 150/166/180/200MHz |
| Chip Set | Intel 440FX |
| Maximum Onboard Memory | 256MB (EDO supported) |
| Cache | Unidentified |
| BIOS | Unidentifed |
| Dimensions | 244mm x 305mm |
| I/O Options | 32-bit PCI slots (4), 16-bit ISA slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard port, serial ports (2), IR connector, ATX power connector |

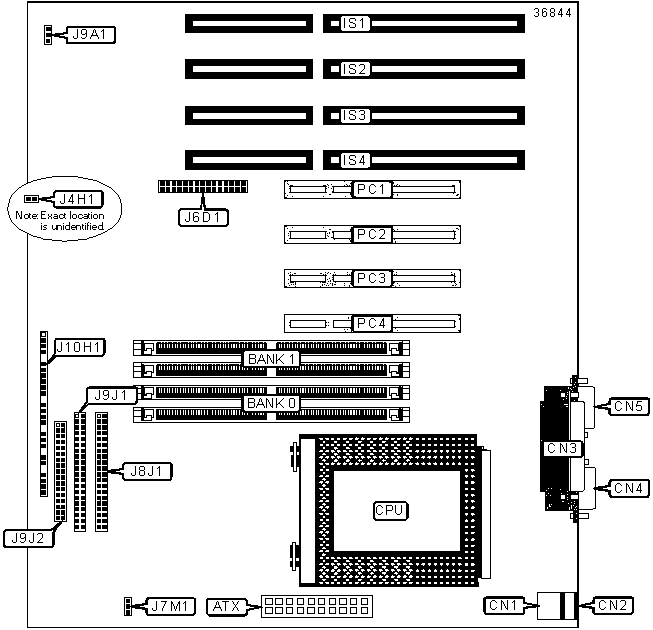

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX | IDE interface 1 | J9J1 |
| PS/2 mouse port | CN1 | Floppy drive interface | J9J2 |
| PS/2 keyboard port | CN2 | Power switch | J10H1/Pins 1 & 2 |
| Parallel port | CN3 | Green PC connector | J10H1/Pins 3 & 4 |
| Serial port 1 | CN4 | IR connector | J10H1/Pins 6 - 11 |
| Serial port 2 | CN5 | IDE interface LED | J10H1/Pins 13 - 16 |
| 16-bit ISA slots | IS1 - IS4 | Power LED | J10H1/Pins 18 - 20 |
| CPU fan power | J7M1 | Reset switch | J10H1/Pins 22 & 23 |
| IDE interface 2 | J8J1 | PC speaker | J10H1/Pins 24 - 27 |
| Auxillary fan power | J9A1 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
VID support enabled | J4H1 | Open |
| VID support disabled | J4H1 | Closed | |
» |
Flash boot block - normal mode | J6D1 |
Pins 4 & 6 closed |
| Flash boot block - recovery mode | J6D1 | Pins 2 & 4 closed | |
| » | CMOS memory normal operation | J6D1 |
Pins 20 & 22 closed |
| CMOS memory clear | J6D1 |
Pins 18 & 20 closed |
|
| » | Password enabled | J6D1 |
Pins 27 & 29 closed |
| Password disabled/clear password | J6D1 |
Pins 25 & 27 closed |
|
| » | CMOS setup access enabled | J6D1 |
Pins 26 & 28 closed |
| CMOS setup access disabled | J6D1 |
Pins 28 & 30 closed | |
| On board speaker enabled | J10H1 |
Pins 26 & 28 closed |
|
|
On board speaker disabled | J10H1 |
Pins 28 & 30 closed |
| Note: Pin 1 on J6D1 is not indicated. | |||
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
| Note: Board accepts EDO memory. | ||
CACHE CONFIGURATION |
| Note: No information is provided for the location, amount or configuration of cache. |
CPU SPEED SELECTION |
|
Speed |
J6D1 |
150MHz |
Pins 17 & 19, 10 & 12, 11 & 13 closed |
166MHz |
Pins 19 & 21, 10 & 12, 11 & 13 closed |
180MHz |
Pins 17 & 19, 12 & 14, 9 & 11 closed |
200MHz |
Pins 19 & 21, 12 & 14, 9 & 11 closed |
| Note: Pin 1 on J6D1 is not indicated. | |
