SUPER MICRO
370SLM
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 333/366/400MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 128KB (located on the Celeron CPU) |
| BIOS | AMI |
| Dimensions | 244mm x 184mm |
| I/O Options | 32-bit PCI slots (3), 16-bit ISA slot, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector |

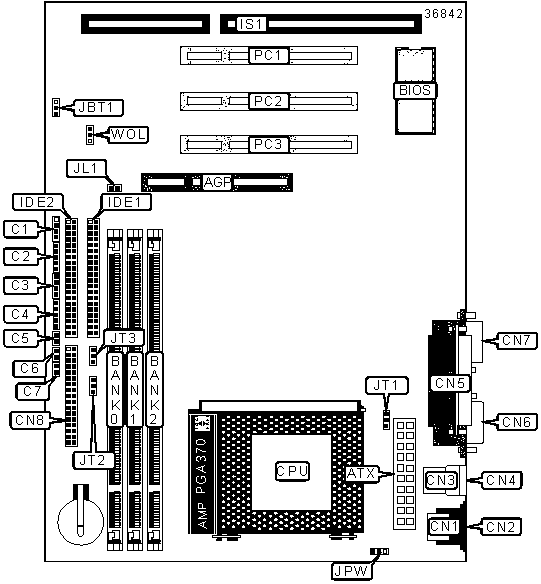

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | Parallel port | CN5 |
| ATX power connector | ATX | Serial port 1 | CN6 |
| IDE interface LED | C1 | Serial port 2 | CN7 |
| Keylock | C2 | Floppy drive interface | CN8 |
| PC speaker | C3 | IDE interface 1 | IDE1 |
| IR connector | C4 | IDE interface 2 | IDE2 |
| Power LED | C5 | 16-bit ISA slot | IS1 |
| Reset switch | C6 | Chassis intrusion switch | JL1 |
| Overheat LED | C7 | CPU fan power | JT1 |
| PS/2 mouse port | CN1 | Chassis fan power | JT2 |
| Keyboard port | CN2 | Thermal control fan power | JT3 |
| USB port 1 | CN3 | 32-bit PCI slots | PC1 - PC3 |
| USB port 2 | CN4 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JBT1 |
Pins 1 & 2 closed |
| CMOS memory clear | JBT1 |
Pins 2 & 3 closed |
|
| » | Keyboard wake-up disabled | JPW |
Pins 1 & 2 closed |
| Keyboard wake-up enabled | JPW |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
