SUPERPOWER COMPUTER CO., LTD.

SP-5BSM
Device Type Mainboard
Processor CX 6X86L/CX 6X86MX/AM K6/AM K6-2/IDT Winchip2/Pentium/Pentium MMX
Processor Speed 133/150/166/200/233/250/266/300/333/350/400/450MHz
Chip Set SIS
Video Chip Set SIS
Audio Chip Set Avance Logic
Maximum Onboard Memory 768MB (EDO & SDRAM supported)
Maximum Video Memory 4MB SGRAM
Cache 512/1024KB
BIOS Award
Dimensions 220mm x 240mm
I/O Options 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial interfaces (2), VGA interface, IR connector, USB interface, ATX power connector, audio in - CD-ROMs (2), Wake-on-LAN connector

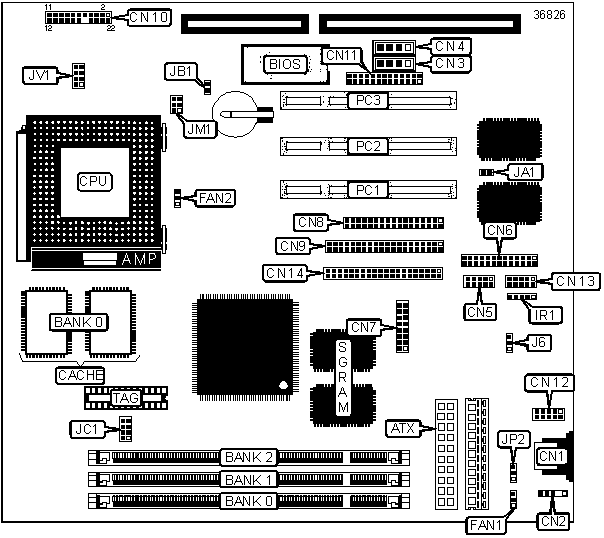

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector ATX Turbo LED CN10/Pins 9 & 14
Unidentified CN1 Green PC LED CN10/Pins 10 & 13
PS/2 mouse interface CN2 Power switch CN10/Pins 11 & 12
Audio in - CD-ROM CN3 PC speaker CN10/Pins 19 - 22
Audio in - CD-ROM CN4 Sound interface CN11
Serial interface 2 CN5 USB interface CN12
Parallel interface CN6 Serial interface 1 CN13
VGA interface CN7 IDE interface 2 CN14
Floppy drive interface CN8 System fan power FAN1
IDE interface 1 CN9 CPU fan power FAN2
Power LED & keylock CN10/Pins 1 - 5 IR connector IR1
IDE interface LED CN10/Pins 6 & 17 Wake-on-LAN connector J6
Green PC connector CN10/Pins 7 & 16 32-bit PCI slots PC1 - PC3
Reset switch CN10/Pins 8 & 15


USER CONFIGURABLE SETTINGS

Function

Label

Position

» On board audio enabled JA1 Closed
  On board audio disabled JA1 Open

»

 CMOS memory normal operation

JB1

Open
  CMOS memory clear

JB1

Closed
» Factory configured - do not alter

JP2

Unidentified


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(1) 2M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:  Board supports EDO & SDRAM memory.


CACHE CONFIGURATION

No information is provided for cache configuration.


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

150MHz

60MHz

2x

 Open Closed Closed Closed

166MHz

66MHz

2x

 Open Closed Closed Closed

200MHz

75MHz

2x

 Open Closed Closed Open


CPU SPEED SELECTION (CX 6X86L CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

150MHz

66MHz

2x

 Closed Open Open

166MHz

66MHz

2x

 Closed Open Open

200MHz

75MHz

2x

 Closed Open Open


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

166MHz

66MHz

2x

 Open Closed Closed Closed

200MHz

66MHz

2.5x

 Open Closed Closed Closed
200MHz 75MHz 2x Open Closed Closed Open
233MHz 75MHz 2.5x Open Closed Closed Open
300MHz 75MHz 2.5x Open Closed Closed Open
333MHz 83MHZ 5x Open Closed Open Closed


CPU SPEED SELECTION (CX 6X86MX CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

166MHz

66MHz

2x

 Closed Open Open

200MHz

75MHz

2.5x

 Closed Closed Open
200MHz 75MHz 2x Closed Open Open
233MHz 75MHz 2.5x Closed Closed Open
300MHz 75MHz 2.5x Closed Closed Open
333MHz 83MHZ 5x Open Closed Closed


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed
233MHz 66MHz 3.5x Open Closed Closed Closed
266MHz 66MHz 4x Open Closed Closed Closed
300MHz 66MHz 4.5x Open Closed Closed Closed


CPU SPEED SELECTION (AM K6 CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open
233MHz 66MHz 3.5x Open Open Open
266MHz 66MHz 4x Closed Open Closed
300MHz 66MHz 4.5x Closed Closed Closed


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

250MHz

100MHz

2.5x

 Open Open Closed Closed

266MHz

100MHz

4x

 Open Open Closed Closed

300MHz

100MHz

3x

 Open Open Closed Closed

333MHz

112MHz

3.5x

 Open Closed Open Open
350MHz 100MHz 3.5x Open Open Closed Closed
400MHz 100MHz 4x Open Open Closed Closed
450MHz 100MHz 4.5x Open Open Closed Closed


CPU SPEED SELECTION (AM K6-2 CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

250MHz

100MHz

2.5x

 Closed Closed Open

266MHz

100MHz

4x

 Closed Open Closed

300MHz

100MHz

3x

 Open Closed Open

333MHz

112MHz

3.5x

 Open Open Open
350MHz 100MHz 3.5x Open Open Open
400MHz 100MHz 4x Closed Open Closed
450MHz 100MHz 4.5x Closed Closed Closed


CPU SPEED SELECTION (IDT WINCHIP2)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

200MHz

66MHz

3x

 Open Closed Closed Closed

233MHz

83MHz

2x

 Open Closed Open Closed

233MHz

100MHz

2.5x

 Open Open Closed Closed

266MHz

100MHz

5x

 Open Open Closed Closed


CPU SPEED SELECTION (IDT WINCHIP2 CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

200MHz

66MHz

3x

 Open Closed Open

233MHz

83MHz

2x

 Closed Open Open

233MHz

100MHz

2.5x

 Closed Closed Open

266MHz

100MHz

5x

 Open Closed Closed


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

133MHz

66MHz

2x

 Open Closed Closed Closed

150MHz

60MHz

2x

 Open Closed Closed Closed

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed


CPU SPEED SELECTION (PENTIUM CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

133MHz

66MHz

2x

 Closed Open Open

150MHz

66MHz

2x

 Closed Open Open

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

JC1/Pins 1 & 2

 JC1/Pins 3 & 4

JC1/Pins 5 & 6

JC1/Pins 7 & 8

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed
233MHz 66MHz 3.5x Open Closed Closed Closed
266MHz 66MHz 4x Open Closed Closed Closed


CPU SPEED SELECTION (PENTIUM MMX CON'T)

CPU speed

Clock speed

Multiplier

JM1/Pins 1 & 2

 JM1/Pins 3 & 4

JM1/Pins 5 & 6

133MHz

66MHz

2.5x

 Closed Closed Open

150MHz

66MHz

3x

 Open Closed Open

166MHz

66MHz

 3.5x Open Open Open

200MHz

66MHz

 4x Closed Open Closed


CPU VOLTAGE SELECTION

Voltage

JV1/Pins 1 & 2 JV1/Pins 3 & 4 JV1/Pins 5 & 6 JV1/Pins 7 & 8
Auto Open Open Open Open
2.1V Closed Open Open Open
2.2V Open Closed Open Open
2.3V Closed Closed Open Open
2.4V Open Open Closed Open
2.5V Closed Open Closed Open
2.6V Open Closed Closed Open
2.7V Closed Closed Closed Open
2.8V Open Open Open Closed
2.9V Closed Open Open Closed
3.0V Open Closed Open Closed
3.1V Closed Closed Open Closed
3.2V Open Open Closed Closed
3.3V Closed Open Closed Closed
3.4V Open Closed Closed Closed
3.5V Closed Closed Closed Closed
