SUPERPOWER COMPUTER CO., LTD.

SP-5MSM
Device Type Mainboard
Processor CX 6X86L/CX 6X86MX/AM K6/AM K6-2/IDT Winchip2/Pentium/Pentium MMX
Processor Speed 133/150/166/180/200/233/250/266/300/333/400/450MHz
Chip Set SIS
Video Chip Set SIS
Audio Chip Set ESS
Maximum Onboard Memory 768MB (EDO & SDRAM supported)
Maximum Video Memory 8MB
Cache 512KB/1024KB
BIOS Award
Dimensions 240mm x 220
I/O Options 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, serial interface, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2)

SP-5MSM

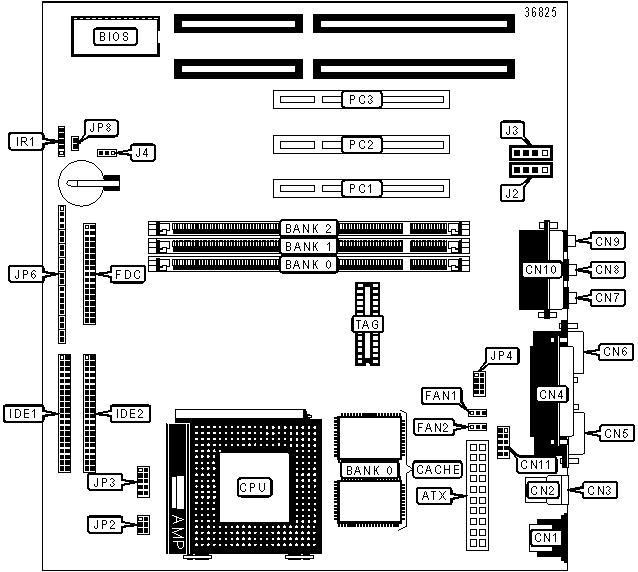

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector ATX IDE interface 1 IDE1
PS/2 mouse port CN1 IDE interface 2 IDE2
USB port 1 CN2 IR connector IR1
USB port 2 CN3 Audio in - CD-ROM J2
Parallel port CN4 Audio in - CD-ROM J3
Serial port CN5 Wake-on-LAN connector J4
VGA port CN6 PC speaker JP6/Pins 1 - 4
Line out CN7 Green PC LED JP6/Pins 5 & 6
Line in CN8 IDE interface 1 LED JP6/Pins 7 & 8
Microphone in CN9 IDE interface 2 LED JP6/Pins 9 & 10
Game/MIDI port CN10 Power LED & keylock JP6/Pins 11 - 18
Serial interface CN11 Reset switch JP6/Pins 19 & 20
CPU fan power FAN1 Power switch JP6/Pins 21 & 22
System fan power FAN2 32-bit PCI slots PC1 - PC3
Floppy drive interface FDC


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 CMOS memory normal operation

J8

Open
  CMOS memory clear

J8

Closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(1) 2M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:  Board supports EDO & SDRAM memory.


CACHE CONFIGURATION

No information is provided for cache configuration.


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

166MHz

66MHz

2x

 Closed Open Open

200MHz

75MHz

2x

 Closed Open Open


CPU SPEED SELECTION (CX 6X86L CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

166MHz

66MHz

2x

 Open Closed Closed Closed

200MHz

75MHz

2x

 Open Closed Closed Open


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open
200MHz 75MHz 3x Open Closed Open
233MHz 75MHz 3x Open Closed Open
300MHz 75MHz 4x Closed Open Closed
333MHz 83MHz 4x Closed Open Closed


CPU SPEED SELECTION (CX 6X86MX CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed
200MHz 75MHz 3x Open Closed Closed Open
233MHz 75MHz 3x Open Closed Closed Open
300MHz 75MHz 4x Open Closed Closed Open
333MHz 83MHz 4x Open Closed Open Closed


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open

233MHz

66MHz

3.5x

 Open Open Open
266MHz

66MHz

 4x Closed Open Closed
300MHz

66MHz

 4.5x Closed Closed Closed


CPU SPEED SELECTION (AM K6 CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed

233MHz

66MHz

3.5x

 Open Closed Closed Closed
266MHz

66MHz

 4x Open Closed Closed Closed
300MHz

66MHz

 4.5x Open Closed Closed Closed


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

250MHz

100MHz

2.5x

 Closed Closed Open

266MHz

100MHz

2.5x

 Closed Closed Open

300MHz

100MHz

3x

 Open Closed Open
333MHz 95MHz 3.5x Open Open Open
350MHz 100MHz 3.5x Open Open Open
400MHz 100MHz 4x Closed Open Closed
450MHz 100MHz 4.5x Closed Closed Closed


CPU SPEED SELECTION (AM K6-2 CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

250MHz

100MHz

2.5x

 Open Open Closed Closed

266MHz

100MHz

2.5x

 Open Open Closed Closed

300MHz

100MHz

3x

 Open Open Closed Closed
333MHz 95MHz 3.5x Open Closed Open Open
350MHz 100MHz 3.5x Open Open Closed Closed
400MHz 100MHz 4x Open Open Closed Closed
450MHz 100MHz 4.5x Open Open Closed Closed


CPU SPEED SELECTION (IDT WINCHIP2)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

200MHz

66MHz

3x

 Open Closed Open

233MHz

83MHz

2.5x

 Closed Closed Open

233MHz

100MHz

2.5x

 Closed Closed Open
266MHz 100MHz 5x Open Closed Closed


CPU SPEED SELECTION (IDT WINCHIP2 CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

200MHz

66MHz

3x

 Open Closed Closed Closed

233MHz

83MHz

2.5x

 Open Closed Open Closed

233MHz

100MHz

2.5x

 Open Open Closed Closed
266MHz 100MHz 5x Open Open Closed Closed


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

133MHz

66MHz

2x

 Closed Open Open

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open


CPU SPEED SELECTION (PENTIUM CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

133MHz

66MHz

2x

 Open Closed Closed Closed

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

JP2/Pins 1 & 2

 JP2/Pins 3 & 4

JP2/Pins 5 & 6

166MHz

66MHz

2.5x

 Closed Closed Open

200MHz

66MHz

3x

 Open Closed Open

233MHz

66MHz

2.5x

 Closed Closed Open
266MHz 66MHz 4x Closed Open Closed


CPU SPEED SELECTION (PENTIUM MMX CON'T)

CPU speed

Clock speed

Multiplier

JP4/Pins 1 & 2

 JP4/Pins 3 & 4

JP4/Pins 5 & 6

JP4/Pins 7 & 8

166MHz

66MHz

2.5x

 Open Closed Closed Closed

200MHz

66MHz

3x

 Open Closed Closed Closed

233MHz

66MHz

2.5x

 Open Closed Closed Closed
266MHz 66MHz 4x Open Closed Closed Closed


CPU VOLTAGE SELECTION

Voltage

JP3/Pins 1 & 2 JP3/Pins 3 & 4 JP3/Pins 5 & 6 JP3/Pins 7 & 8 JP3/Pins 9 & 10
1.8V Closed Closed Open Closed Open
2.0v Closed Closed Closed Closed Open
2.2V Open Open Open Closed Open
2.5V Open Open Closed Open Closed
2.8V Open Closed   Open Open Open
2.9V Open Closed Open Open Closed
3.1V Open Closed Open Closed Closed
3.2V Open Closed Closed Open Open
3.3V Open Closed Closed Open Closed
3.5V Open Closed Closed Closed Closed
