SUPERPOWER COMPUTER CO., LTD
SP-6BZ
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/366/400/450/500MHz |
| Chip Set | Intel 440ZX |
| Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 220mm x 240mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial interfaces (2), IR connector, USB interface, ATX power connector, AGP slot |

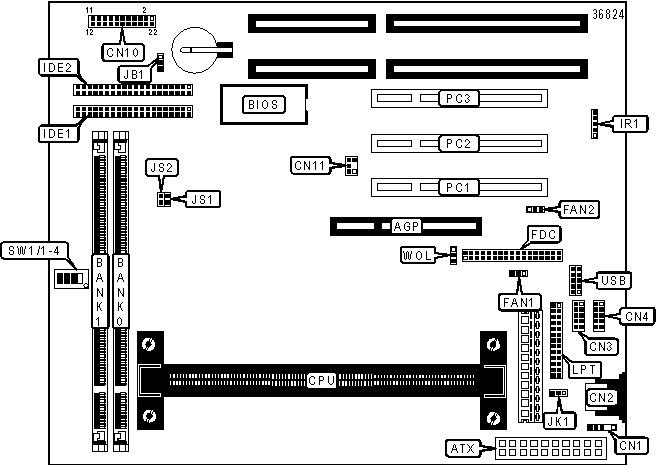

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | PC speaker | CN10/Pins 19 - 22 |
| ATX power connector | ATX | SB-link connector | CN11 |
| PS/2 mouse interface | CN1 | CPU fan power | FAN1 |
| PS/2 keyboard port | CN2 | System fan power | FAN2 |
| Serial interface 2 | CN3 | Floppy drive interface | FDC |
| Serial interface 1 | CN4 | IDE interface 1 | IDE1 |
| Power LED & keylock | CN10/Pins 1 - 5 | IDE interface 2 | IDE2 |
| IDE interface LED | CN10/Pins 6 & 17 | IR connector | IR1 |
| Green PC connector | CN10/Pins 7 & 16 | Paralell interface | LPT |
| Reset switch | CN10/Pins 8 & 15 | 32-bit PCI slots | PC1 - PC3 |
| Turbo LED | CN10/Pins 9 & 14 | USB interface | USB |
| Green PC LED | CN10/Pins 10 & 13 | Wake-on-LAN connector | WOL |
| Power switch | CN10/Pins 11 & 12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
CPU speed auto-detect setting enabled | JS1 | Closed |
| CPU speed auto-detect setting disabled | JS1 | Open | |
» |
CMOS memory normal operation | JB1 |
Pins 1 & 2 closed |
|
CMOS memory clear | JB1 |
Pins 2 & 3 closed |
| Keyboard wake-up enabled | JK1 |
Pins 2 & 3 closed |
|
| Keyboard wake-up disabled | JK1 |
Pins 1 & 2 closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
16MB |
(1) 2M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 512KB cache is located on the Pentium III CPUs. 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (CELERON) |
|||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 |
SW1/4 | JS2 |
233MHz |
66MHz |
3.5x |
On | Off | Off | On | Closed |
266MHz |
66MHz |
4x |
On | On | On | Off | Closed |
300MHz |
66MHz |
4.5x |
On | Off | On | Off | Closed |
333MHz |
66MHz |
5x |
On | On | Off | Off | Closed |
366MHz |
66MHz |
5.5x |
On | Off | Off | Off | Closed |
| 400MHz | 66MHz | 6x | Off | On | On | On | Closed |
CPU SPEED SELECTION (PENTIUM II) |
|||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 |
SW1/4 | JS2 |
233MHz |
66MHz |
3.5x |
On | Off | Off | On | Closed |
266MHz |
66MHz |
4x |
On | On | On | Off | Closed |
300MHz |
66MHz |
4.5x |
On | Off | On | Off | Closed |
| 300MHz | 100MHz | 3x | On | On | Off | On | Open |
333MHz |
66MHz |
5x |
On | On | Off | Off | Closed |
| 350MHz | 100MHz | 3.5x | On | Off | Off | On | Open |
366MHz |
66MHz |
5.5x |
On | Off | Off | Off | Closed |
| 400MHz | 100MHz | 4x | On | On | On | Off | Open |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off | Open |
CPU SPEED SELECTION (PENTIUM III) |
|||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 | SW1/3 |
SW1/4 | JS2 |
450MHz |
100MHz |
4.5x |
On | Off | On | Off | Open |
500MHz |
100MHz |
5x |
On | On | Off | Off | Open |
