SUPERPOWER COMPUTER CO., LTD.
SP-6BV
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 200/233/266/300/333/350/366/400/450/500/550/600MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 240mm x 220mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial interfaces (2), IR connector, USB interface, ATX power connector, AGP slot, SB-link connector |

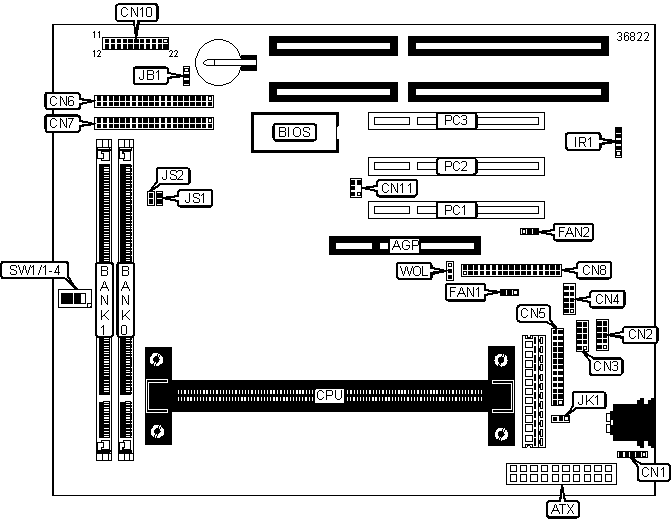

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | Green PC switch | CN10/Pins 7 & 16 |
| ATX power connector | ATX | Reset switch | CN10/Pins 8 & 15 |
| PS/2 mouse interface | CN1 | Turbo LED | CN10/Pins 9 & 14 |
| Serial interface 1 | CN2 | Green PC LED | CN10/Pins 10 & 13 |
| Serial interface 2 | CN3 | Power switch | CN10/Pins 11 & 12 |
| USB interface | CN4 | PC speaker | CN10/Pins 19 - 22 |
| Parallel port | CN5 | SB-link connector | CN11 |
| IDE interface 2 | CN6 | CPU fan power | FAN1 |
| IDE interface 1 | CN7 | System fan power | FAN2 |
| Floppy drive interface | CN8 | IR connector | IR1 |
| Power LED & keylock | CN10/Pins 1 - 5 | Wake-on-LAN connector | WOL |
| IDE interface LED | CN10/Pins 6 & 17 | 32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JB1 | Pins 1 & 2 closed |
| CMOS memory clear | JB1 | Pins 2 & 3 closed | |
|
Power-on keyboard enabled | JK1 |
Pins 2 & 3 closed |
| Power-on keyboard disabled | JK1 |
Pins 1 & 2 closed |
|
| CPU bus speed automatic detection enabled | JS1 | Closed | |
| CPU bus speed automatic detection disabled | JS1 | Open | |
| CPU bus speed select 66MHz | JS2 | Closed | |
| CPU bus speed select 100MHz | JS2 | Open | |
| Note: Enabling CPU bus speed automatic detection overrides any setting on JS2. | |||
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
200MHz |
66MHz |
3x |
On | On | Off | On |
233MHz |
66MHz |
3.5x |
On | Off | Off | On |
266MHz |
66MHz |
4x |
On | On | On | Off |
300MHz |
66MHz |
4.5x |
On | Off | On | Off |
| 300MHz | 100MHz | 3x | On | On | Off | On |
333MHz |
66MHz |
5x |
On | On | Off | Off |
| 350MHz | 100MHz | 3.5x | On | Off | Off | On |
366MHz |
66MHz |
5.5x |
On | Off | Off | Off |
| 400MHz | 66MHz | 6x | Off | On | On | On |
| 400MHz | 100MHz | 4x | On | On | On | Off |
| 450MHz | 100MHz | 4.5x | On | Off | On | Off |
| 500MHz | 100MHz | 5x | On | On | Off | Off |
| 550MHz | 100MHz | 5.5x | On | Off | Off | Off |
| 600MHz | 100MHz | 6x | Off | On | On | On |
