MICRO-STAR INTERNATIONAL CO., LTD
MS-6153 VIA
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 266/300/333/366/400/433/466/500MHz |
| Chip Set | VIA |
| Audio Chip Set | Creative Labs |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Unidentified |
| Dimensions | 305mm x 190mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (5), floppy drive interface, game/MIDI port, green PC interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM, Wake-on-LAN connector, Wake-on-Modem connector |

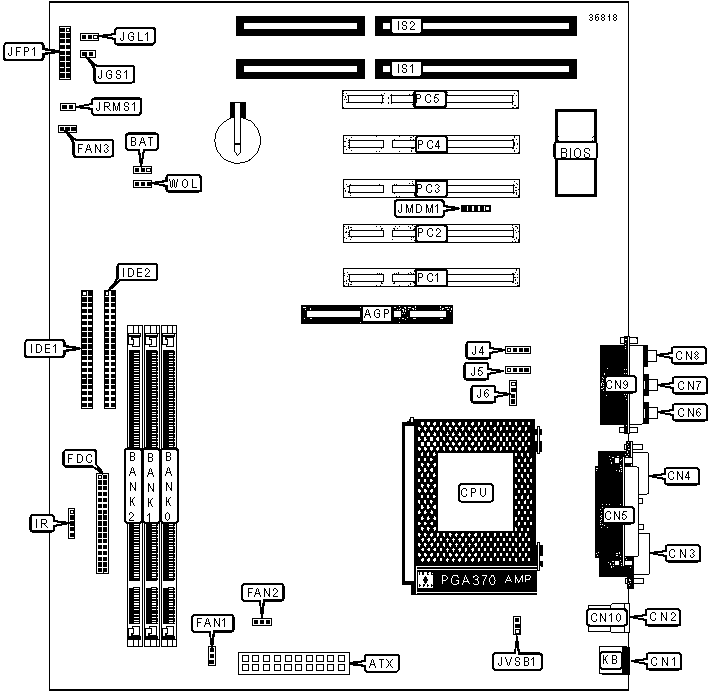

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
IR connector | IR |
| ATX power connector | ATX |
16-bit ISA slots | IS1 - IS2 |
| PS/2 mouse port | CN1 | Audio in - CD-ROM | J4 |
| USB port 1 | CN2 | Auxilliary audio in - CD-ROM | J5 |
| Serial port 1 | CN3 | Keylock | JFP1/Pins 1 & 10 |
| Serial port 2 | CN4 | IDE interface LED | JFP1/Pins 3 & 12 |
| Parallel port | CN5 | Power LED | JFP1/Pins 4 - 6 |
| Line out | CN6 | Power switch | JFP1/Pins 7 & 8 |
| Line in | CN7 | Speaker | JFP1/Pins 13 - 16 |
| Microphone in | CN8 | Reset switch | JFP1/Pins 17 & 18 |
| Game/MIDI port | CN9 | Wake-on-Modem connector | JMDM1 |
| USB port 2 | CN10 | Green PC connector | JGS1 |
| Fan power | FAN1 | Power switch | JRMS1 |
| CPU fan power | FAN2 | PS2 keyboard port | KB |
| Floppy drive interface | FDC | 32-bit PCI slots | PC1 - PC5 |
| IDE interface 1 | IDE1 | Wake-on-LAN connector | WOL |
| IDE interface 2 | IDE2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| » | Factory configured - do not alter | JGL1 | Unidentified |
| » | Power on keyboard disabled | JVSB1 | Pins 2 & 3 closed |
| Power on keyboard enabled | JVSB1 | Pins 1 & 2 closed |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
