MICRO-STAR INTERNATIONAL CO., LTD.
MS-6145
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | SiS |
| Video Chip Set | ATI |
| Audio Chip Set | Creative Labs ES1371 |
| Maximum Onboard Memory | 512MB (EDO & SDRAM supported) |
| Maximum Video Memory | 8MB (SDRAM) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Unidentified |
| Dimensions | 244mm x 192mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial interface, serial port, VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, Wake-on LAN connector, Wake-on Modem connector |

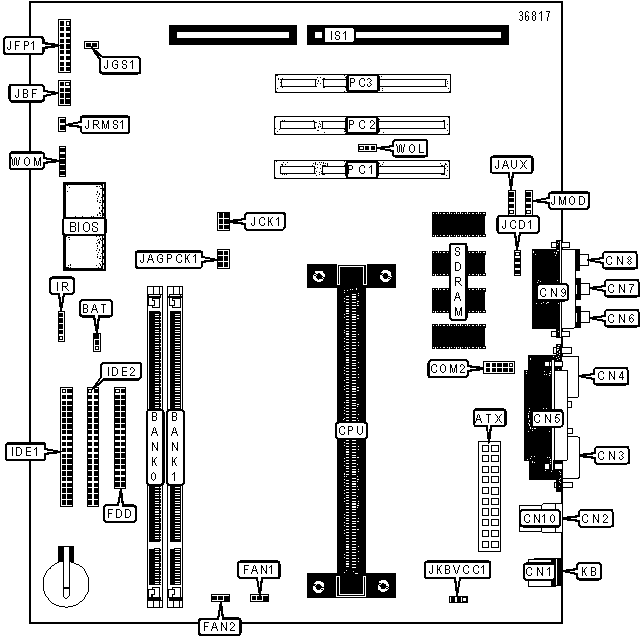

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
16-bit ISA slots | IS1 - IS2 |
| PS/2 mouse port | CN1 | Unidentified | JAGPCK1 |
| USB port 1 | CN2 | Auxilliary connector | JAUX1 |
| Serial port 1 | CN3 | Audio in - CD-ROM | JCD1 |
| VGA port | CN4 | Unidentified | JCK1 |
| Parallel port | CN5 | Keylock | JFP1/Pins 1 & 10 |
| Line out | CN6 | IDE interface LED | JFP1/Pins 3 & 12 |
| Line in | CN7 | Power LED | JFP1/Pins 4 - 6 |
| Microphone in | CN8 | Power switch | JFP1/Pins 7 & 8 |
| Game/MIDI port | CN9 | Speaker | JFP1/Pins 13 - 16 |
| USB port 2 | CN10 | Reset switch | JFP1/Pins 17 & 18 |
| Serial interface 2 | COM2 | Green PC interface | JGS1 |
| Power supply fan | FAN1 | Power switch | JRMS1 |
| CPU fan power | FAN2 | PS2 keyboard port | KB |
| Floppy drive interface | FDD | 32-bit PCI slots | PC1 - PC3 |
| IDE interface 1 | IDE1 | Wake-on-LAN connector | WOL |
| IDE interface 2 | IDE2 | Wake-on-Modem connector | WOM |
| IR connector | IR | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| » | Factory configured - do not alter | JMOD | Unidentified |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU MULTIPLIER SELECTION |
||||
Multiplier |
JBF/1 | JBF/2 | JBF/3 | JBF/4 |
3x |
Closed | Closed | Open | Closed |
| 3.5x | Closed | Open | Open | Closed |
| 4x | Closed | Closed | Closed | Open |
| 4.5x | Closed | Open | Closed | Open |
| 5x | Closed | Closed | Open | Open |
CPU BUS SELECTION |
|||
Speed |
JCK1/1 | JCK1/2 | JCK1/3 |
66MHz |
Closed | Closed | Open |
100MHz |
Open | Open | Open |
AGP BUS SELECTION |
|
Speed |
JAGPCK1 |
66MHz |
Pins 1 & 2, 4 & 5 closed |
CPU BUS |
Pins 3 & 4, 5 & 6 closed |
