MICRO-STAR INTERNATIONAL CO., LTD.
MS-6135
| Device Type | Mainboard |
| Processor | Pentium II Xeon (2) |
| Processor Speed | 400/450/500/550/600MHz |
| Chip Set | Intel 440GX |
| Maximum Onboard Memory | 2048MB (SDRAM supported) |
| Cache | 512/1024/2048KB (located on the Pentium II CPU) |
| BIOS | Unidentified |
| Dimensions | 330mm x 305mm |
| I/O Options | 32-bit PCI slots (6), Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), Ultra SCSI interface, Wide Ultra SCSI interface, Ultra 2 SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power interfaces (2), AGP slot, RAID slot, Wake-on-LAN connector, Wake-on-Modem connector, SB-Link connector, Green PC connector |

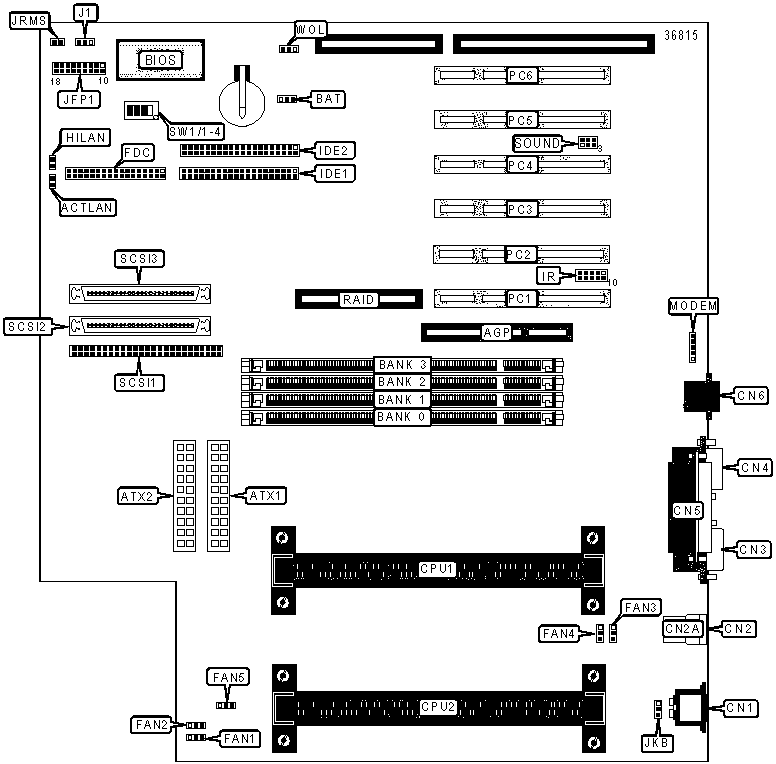

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| LAN active LED | ACTLAN | IDE interface 2 | IDE2 |
| AGP slot | AGP |
IR connector | IR |
| ATX power connector 1 | ATX1 |
Power dual color LED | J1 |
| ATX power connector 2 | ATX2 |
Keylock | JFP1/Pins 1 & 10 |
| PS/2 mouse port | CN1 | IDE interface LED | JFP1/Pins 3 & 12 |
| USB port 1 | CN2 | Power LED | JFP1/Pins 4, 5, & 6 |
| USB port 2 | CN2A | Power switch | JFP1/Pins 7 & 8 |
| Serial port 1 | CN3 | Speaker | JFP1/Pins 13, 14, 15 & 16 |
| Serial port 2 | CN4 | Reset switch | JFP1/Pins 17 & 18 |
| Parallel port | CN5 | Green PC connector | JRMS |
| CPU fan power | FAN1 | Wake-on-modem connector | MODEM |
| CPU fan power | FAN2 | 32-bit PCI slots | PC1 - PC6 |
| CPU fan power | FAN3 | RAID slot | RAID |
| CPU fan power | FAN4 | Ultra SCSI interface | SCSI1 |
| Power supply fan power | FAN5 | Ultra Wide SCSI interface | SCSI2 |
| Floppy drive interface | FDC | Ultra 2 SCSI interface | SCSI3 |
| LAN high activity LED | HILAN | SB-Link connector | SOUND |
| IDE interface 1 | IDE1 | Wake-on-LAN connector | WOL |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| » | Wake-on-Keyboard disable | JKB | Pins 2 & 3 closed |
| Wake-on-Keyboard enable | JKB | Pins 1 & 2 closed | |
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
| 256MB* | (1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| 512MB* | (1) 32M x 64 |
(1) 32M x 64 |
None |
None |
512MB* |
(1) 64M x 64 | None | None | None |
| 528MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
| 544MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
| 576MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
| 640MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
| 768MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
| 768MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| 1024MB* | (1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| 1024MB* | (1) 64M x 64 | (1) 64M x 64 | None | None |
| 1040MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 1M x 64 | (1) 1M x 64 |
| 1056MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 2M x 64 | (1) 2M x 64 |
| 1088MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 4M x 64 | (1) 4M x 64 |
| 1152MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 8M x 64 | (1) 8M x 64 |
| 1280MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 16M x 64 | (1) 16M x 64 |
| 1536MB* | (1) 64M x 6 | (1) 64M x 6 | (1) 64M x 6 | None |
| 1536MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 32M x 64 | (1) 32M x 64 |
| 2048MB* | (1) 64M x 64 | (1) 64M x 64 | (1) 64M x 64 | (1) 64M x 64 |
| Note: Board supports SDRAM
memory. *Note: Memory configuration must use registered SDRAM. |
||||
CACHE CONFIGURATION |
| Note: 512KB/1024KB/2048KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
||||||
CPU speed |
Bus Speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
400MHz |
100MHz |
4x |
Off | On | On | On |
450MHz |
100MHz |
4.5x |
Off | On | Off | On |
500MHz |
100MHz |
5x |
Off | Off | On | On |
550MHz |
100MHz |
5.5x |
Off | Off | Off | On |
600MHz |
100MHz |
6x |
On | On | On | Off |
