MICRO-STAR INTERNATIONAL CO., LTD.
MS-5184
| Device Type | Mainboard |
| Processor | CX 6X86/CX 6X86L/CX 686MX/CX
M2/IBM 6X86/IBM 6X86L/IBM 6X86MX/ AM K5/AM K6/AM K6-2/IDT Winchip/Pentium |
| Processor Speed | 100/133/166/200/233/266/300/333/350/366/380/400MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 512/1024KB |
| BIOS | Award |
| Dimensions | 243mm x 222mm |
| I/O Options | 16-bit ISA slots (2), 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel interface, PS/2 mouse interface, serial interfaces (2), USB interface, ATX power connector, AGP slot, Wake-on-LAN connector, Modem connector |

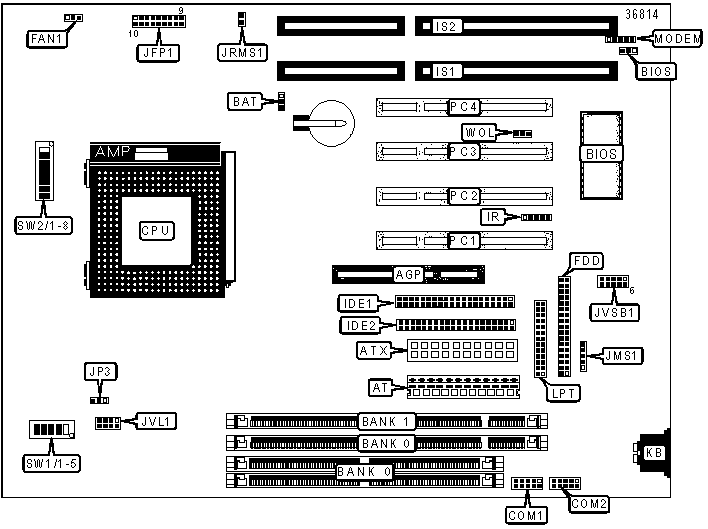

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Power LED | JFP1/Pins 4, 5 & 6 |
| AT power connector | AT |
Power switch | JFP1/Pins 7 & 8 |
| ATX power connector | ATX |
Speaker | JFP1/Pins 13 -16 |
| Serial interface 1 | COM1 | Reset switch | JFP1/Pins 17 & 18 |
| Serial interface 2 | COM2 | PS/2 mouse interface | JMS1 |
| CPU fan power | FAN1 | Remote power switch | JRMS1 |
| Floppy drive interface | FDD | Unidentified | JVL1 |
| IDE interface 1 | IDE1 | USB interface | JVSB1 |
| IDE interface 2 | IDE2 | AT keyboard port | KB |
| IR connector | IR | 32-bit PCI slots | PC1 - PC4 |
| 16-bit ISA slots | IS1 - IS2 |
Parallel interface | LPT |
| Keylock | JFP1/Pins 1 & 10 | Wake-on-LAN connector | WOL |
| IDE interface LED | JFP1/Pins 3 & 12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | BAT |
Pins 1 & 2 closed |
| CMOS memory clear | BAT |
Pins 2 & 3 closed |
|
| DRAM set to CPU clock speed | JP3 | Pins 1 & 2 closed |
|
| DRAM set to AGP clock speed | JP3 | Pins 2 & 3 closed |
|
SIMM CONFIGURATION |
|
Size |
Bank 0 |
8MB |
(2) 1M x 36 |
16MB |
(2) 2M x 36 |
32MB |
(2) 4M x 36 |
64MB |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
256MB |
(2) 32M x 36 |
| Note: Board accepts EDO & SDRAM memory. | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| 256MB* | (1) 32M x 64 | None |
| 264MB* | (1) 32M x 64 | (1) 1M x 64 |
| 272MB* | (1) 32M x 64 | (1) 2M x 64 |
| 288MB* | (1) 32M x 64 | (1) 4M x 64 |
| 320MB* | (1) 32M x 64 | (1) 8M x 64 |
| 384MB* | (1) 32M x 64 | (1) 16M x 64 |
| 512MB* | (1) 32M x 64 | (1) 32M x 64 |
| Note: Board accepts
EDO & SDRAM memory. Maximum EDO is 512MB. Maximum SDRAM is 256MB. *Note: Memory configuration requires EDO memory. |
||
CPU SPEED SELECTION (CYRIX 6X86) |
||||||
CPU Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
133MHz |
66MHz | 2x | Off | On | On | On |
CPU SPEED SELECTION (CYRIX 6X86 CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
133MHz |
66MHz | 2x | N/A | On | Off | Off |
CPU SPEED SELECTION (CYRIX 6X86L) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
133MHz |
66MHz | 2x | Off | On | On | On |
CPU SPEED SELECTION (CYRIX 6X86L CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
133MHz |
66MHz | 2x | N/A | On | Off | Off |
CPU SPEED SELECTION (CYRIX 6X86MX) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
166MHz |
66MHz | 2.5x | Off | On | On | On |
CPU SPEED SELECTION (CYRIX 6X86MX CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
166MHz |
66MHz | 2.5x | N/A | On | On | Off |
CPU SPEED SELECTION (IBM 6X86) |
||||||
CPU Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
133MHz |
66MHz | 2x | Off | On | On | On |
CPU SPEED SELECTION (IBM 6X86 CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
133MHz |
66MHz | 2x | N/A | On | Off | Off |
CPU SPEED SELECTION (IBM 6X86L) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
133MHz |
66MHz | 2x | Off | On | On | On |
CPU SPEED SELECTION (IBM 6X86L CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
133MHz |
66MHz | 2x | N/A | On | Off | Off |
CPU SPEED SELECTION (IBM 6X86MX) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
166MHz |
66MHz | 2.5x | Off | On | On | On |
CPU SPEED SELECTION (IBM 6X86MX CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
166MHz |
66MHz | 2.5x | N/A | On | On | Off |
CPU SPEED SELECTION (AMD K5) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
100MHz |
66MHz | 1.5x | Off | On | On | On |
166MHz |
66MHz | 2.5x | Off | On | On | On |
CPU SPEED SELECTION (AMD K5 CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
100MHz |
66MHz | 1.5x | N/A | Off | Off | Off |
166MHz |
66MHz | 2.5x | N/A | On | On | Off |
CPU SPEED SELECTION (AMD K6) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
166MHz |
66MHz | 2.5x | Off | On | On | On |
| 200MHz | 66MHz | 3x | Off | On | On | On |
233MHz |
66MHz | 3.5x | Off | On | On | On |
CPU SPEED SELECTION (AMD K6 CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
166MHz |
66MHz | 2.5x | N/A | On | On | Off |
| 200MHz | 66MHz | 3x | N/A | Off | On | Off |
233MHz |
66MHz | 3.5x | N/A | On | On | Off |
CPU SPEED SELECTION (AMD K6-2) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
300MHz |
66MHz | 4.5x | Off | Off | Off | Off |
| 333MHz | 66MHz | 5x | On | Off | Off | Off |
| 350MHz | 100MHz | 3.5x | Off | Off | Off | Off |
CPU SPEED SELECTION (AMD K6-2 CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
300MHz |
66MHz | 4.5x | N/A | On | On | On |
| 333MHz | 66MHz | 5x | N/A | Off | On | On |
| 350MHz | 100MHz | 3.5x | On | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
100MHz |
66MHz | 1.5x | Off | On | On | On |
| 133MHz | 66MHz | 2x | Off | On | On | On |
| 166MHz | 66MHz | 2.5x | Off | On | On | On |
| 200MHz | 66MHz | 3x | Off | On | On | On |
CPU SPEED SELECTION (PENTIUM CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
100MHz |
66MHz | 1.5x | N/A | Off | On | Off |
| 133MHz | 66MHz | 2x | N/A | On | Off | Off |
| 166MHz | 66MHz | 2.5x | N/A | On | On | Off |
| 200MHz | 66MHz | 3x | N/A | Off | On | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
||||||
Speed |
Clock Speed | Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
| 166MHz | 66MHz | 2.5x | Off | On | On | On |
| 200MHz | 66MHz | 3x | Off | On | On | On |
| 233MHz | 66MHz | 3.5x | Off | On | On | On |
CPU SPEED SELECTION (PENTIUM MMX CON'T) |
||||||
Speed |
Clock Speed | Multiplier | SW1/5 | SW2/6 | SW2/7 | SW2/8 |
| 166MHz | 66MHz | 2.5x | N/A | On | On | Off |
| 200MHz | 66MHz | 3x | N/A | Off | On | Off |
| 233MHz | 66MHz | 3.5x | N/A | Off | Off | Off |
CPU VOLTAGE SELECTION |
|||||
Voltage |
SW2/1 | SW2/2 | SW2/3 | SW2/4 | SW2/5 |
| 1.80V | Off | On | Off | On | On |
| 1.85V | On | On | Off | On | On |
| 1.90V | Off | Off | On | On | On |
| 1.95V | On | Off | On | On | On |
| 2.00V | Off | On | On | On | On |
| 2.0V | Off | Off | Off | Off | Off |
| 2.05V | On | On | On | On | On |
| 2.10V | On | Off | Off | Off | Off |
| 2.20V | Off | On | Off | Off | Off |
| 2.30V | On | On | Off | Off | Off |
| 2.40V | Off | Off | On | Off | Off |
| 2.50V | On | Off | On | Off | Off |
| 2.60V | Off | On | On | Off | Off |
| 2.70V | On | On | On | Off | Off |
| 2.80V | Off | Off | Off | On | Off |
| 2.90V | On | Off | Off | On | Off |
| 3.00V | Off | On | Off | On | Off |
| 3.10V | On | On | Off | On | Off |
| 3.20V | Off | Off | On | On | Off |
| 3.30V | On | Off | On | On | Off |
| 3.40V | Off | On | On | On | Off |
| 3.50V | On | On | On | On | Off |
